Name: Automatic Precast EPS Concrete Sandwich Wall Panel Making Machine Sandwich Panelproduction Line
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Máy tạo hình cuộn bánh sandwich
Price: 40,500.00 USD
Availability: InStock

Trang chủ > các sản phẩm > Máy tạo hình cuộn bánh sandwich >

Automatic Precast EPS Concrete Sandwich Wall Panel Making Machine Sandwich Panelproduction Line

automatic precast EPS wall panel machine

concrete sandwich panel production line

sandwich panel roll forming machine with warranty

Nguồn gốc:

Trung Quốc

Hàng hiệu:

FMS

Chứng nhận:

Số mô hình:

Máy tạo hình cuộn bánh sandwich

Liên hệ với chúng tôi

Yêu cầu báo giá

Chi tiết sản phẩm

Đường kính trục:

70mm hoặc theo yêu cầu của bạn

Chất liệu của trục:

Thép rèn 45 # cao cấp

Lưỡi cắt:

Thép khuôn CR12 với xử lý tôi

Tốc độ hình thành:

5-8m/phút

Vật liệu lưỡi cắt:

Cr12MOV, Xử lý nhiệt

Nguồn điện:

380V, 3 Pha, 50Hz

Vật liệu trục:

Thép cao cấp 45 #, đường kính 70mm

độ dày:

0,3-0,8mm

Hình thành các bước:

11 trạm

Quyền lực:

5,5KW

Chiều rộng vật liệu:

1200mm

Làm nổi bật:

automatic precast EPS wall panel machine

concrete sandwich panel production line

sandwich panel roll forming machine with warranty

Điều khoản thanh toán và vận chuyển

Số lượng đặt hàng tối thiểu

1 BỘ

Giá bán

negotiable

chi tiết đóng gói

Khỏa Thân với Phim Nhựa.

Thời gian giao hàng

45 ngày thế giới

Điều khoản thanh toán

T/T, L/C

Khả năng cung cấp

20 bộ mỗi tháng

Sản phẩm liên quan

Băng hình

Auto Sandwich Panel Production Line/PU Foam Sandwich Wall Panel Making Machine

Nhận được giá tốt nhất

Băng hình

EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine

Nhận được giá tốt nhất

50-300 Thickness Sandwich Panel Roll Forming Machine with Lichao Motor and 32KW Hydraulic Motor Power

Nhận được giá tốt nhất

Mode EPS Sandwich Panel Line for 50-300 Thickness Production Customization

Nhận được giá tốt nhất

Liên hệ với chúng tôi

Liên hệ ngay

Mô tả sản phẩm

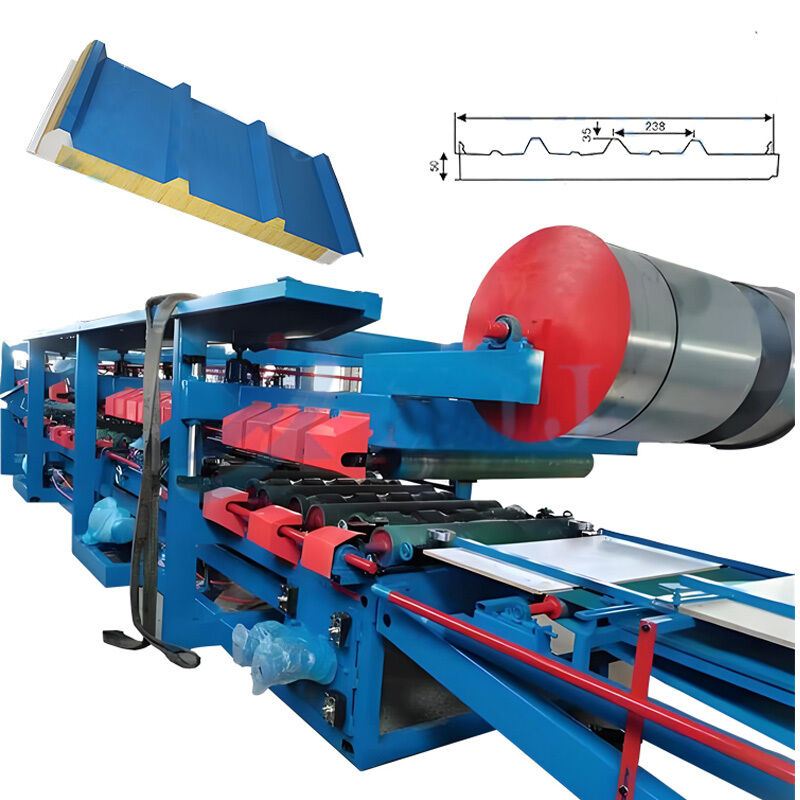

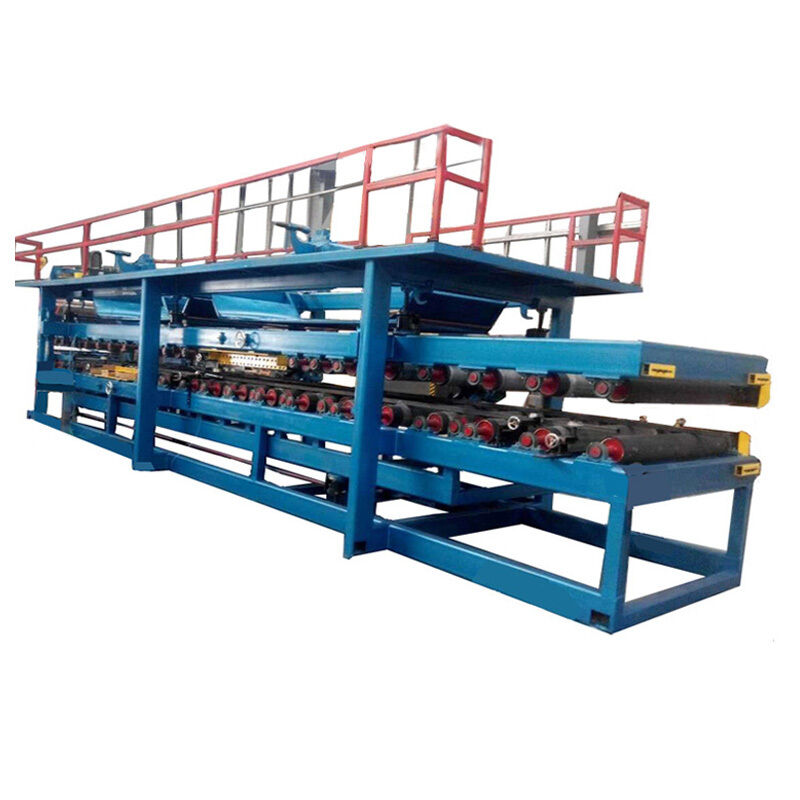

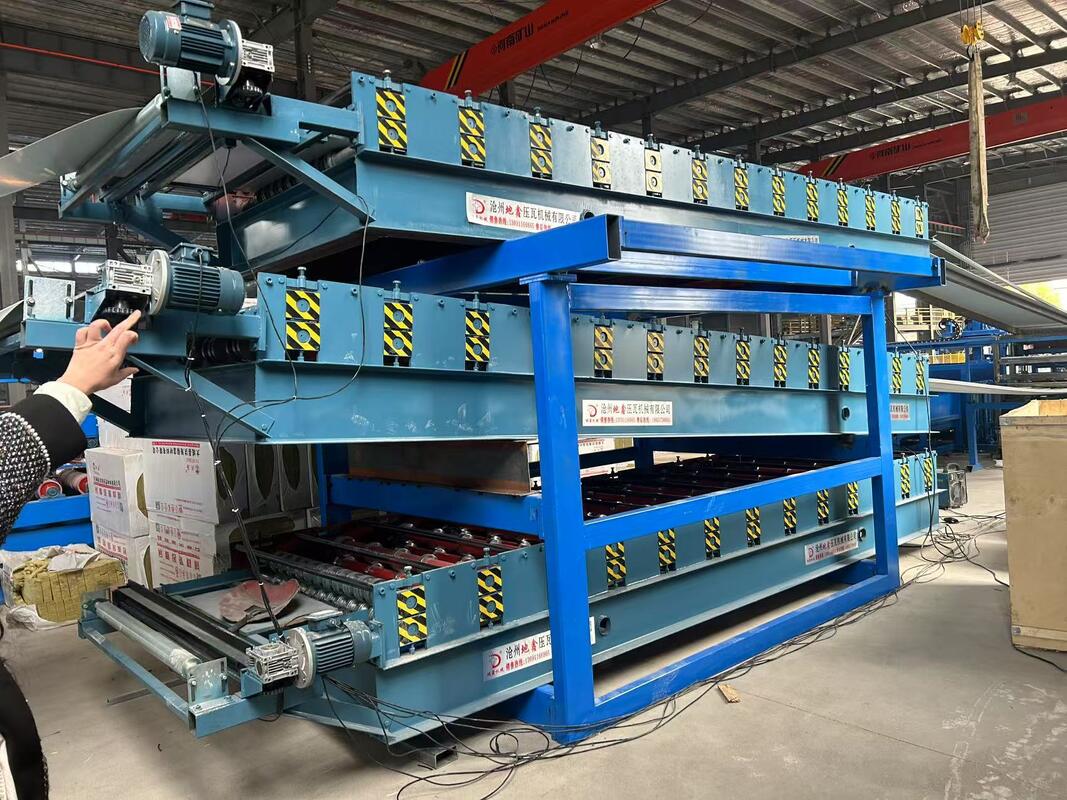

Automatic Precast EPS Concrete Sandwich Wall Panel Making Machine

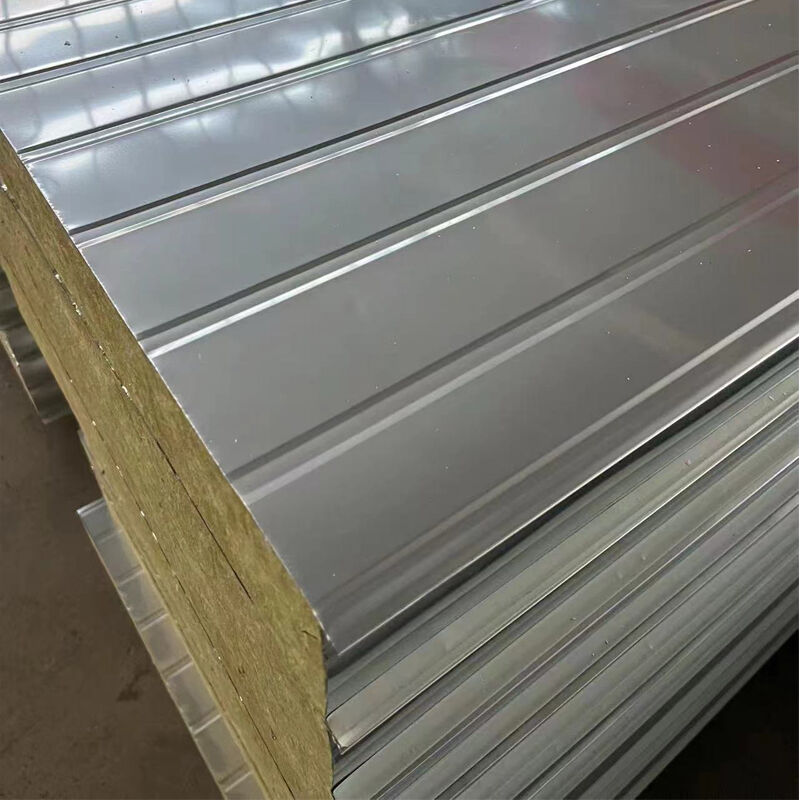

This advanced production line is designed for manufacturing EPS rock wool composite boards, a widely used building insulation material for walls, roofs, and floors. The automated system ensures efficient production of high-quality sandwich panels.

Production Process Overview

EPS Board Processing: Precision cutting and trimming operations
Rock Wool Processing: Accurate cutting and systematic paving
Composite Bonding: Hot or cold pressing to bond materials
Final Molding: Formation of specification-compliant composite boards

Equipment Components

EPS Board Processing Unit: Cutting and trimming systems
Rock Wool Processing Unit: Cutting and paving mechanisms
Composite Unit: Bonding and pressing systems
Molding Unit: Final shaping and sizing equipment
Control System: Automated process control

Technical Specifications

Material of Shaft	70 mm 45# steel forged
Thickness Range	50-250mm
Working Speed	5-6m/min
Dimensions	Approximately 34000mm × 2500mm × 2600mm
Total Power	32 KW
Electrical Hydraulic Station Power	4 KW
Hydraulic Station Pressure	12.0 Mpa
Roller Station	11/17 Rows

Warranty & Guarantee

1-Year Manufacturing Defect Guarantee (excluding electrical parts) from date of purchase.

Warranty Exclusions

Damage caused by natural disasters
Malfunctions due to user error
Issues resulting from unauthorized modifications
Problems occurring after relocation or shipment post-installation

Payment & Delivery Terms

Payment Structure: 40% advance payment, 60% balance before shipment
Delivery: FOB Tianjin Xingang Port
Lead Time: 65 days after receipt of down payment

Frequently Asked Questions

Does one machine produce only one style of panel profile?

No. For wider and double-layer making machines, it can produce more than 6 different types of panels.

What support is provided if the machine breaks down?

12-month warranty period. If parts cannot be repaired, we provide replacements (customer covers express costs). After warranty, we offer technical support and negotiated solutions for the equipment's lifetime.

Can you handle transportation?

Yes, we have extensive transportation experience. Please provide your destination port or address.

Are you a manufacturer or trading company?

We operate as both manufacturer and trading company.

Do you provide customization?

Yes, we design machines according to your requirements and profile drawings. Our engineers provide professional solutions for worldwide clients.

How can I verify machine testing before shipping?

We provide testing videos for reference, or welcome you to visit our factory and test the machine personally.
