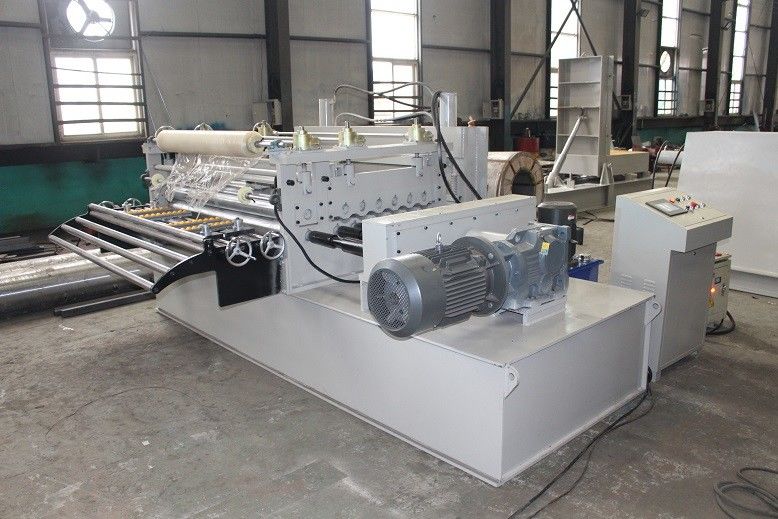

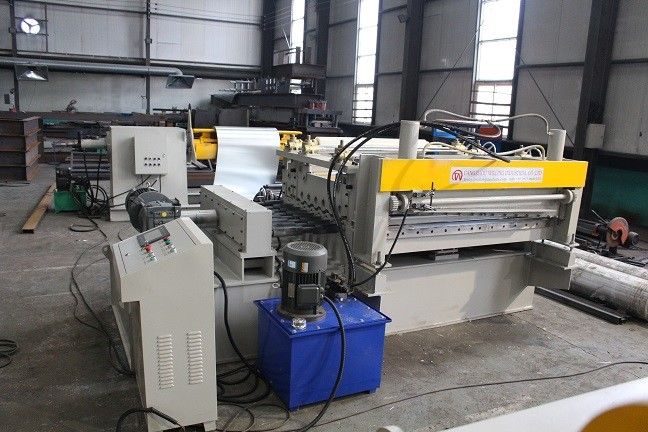

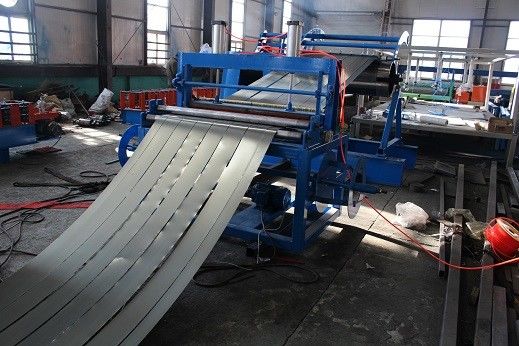

40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler
| Attribute | Value |
|---|---|
| Product Name | Simple High Speed Mini Slitter Slitting Line With Hydraulic Uncoiler And Recoiler |
| Cutting Material | Galvalume, Galvanized, PPGI, Aluminum |
| Material Thickness | 0.3 mm - 3 mm |
| Working Speed | 8 m/min - 30 m/min (can be customized) |
| Coil Weight | 5 tons / 7 tons / 10 tons (can be customized) |
| Slitting Pcs | 2 - 30 pcs |
| Machine Weight | 13000 KG |
| Cutting Width Precision | ± 0.01 - ± 0.05 mm |
The mini slitter line can become an ideal support if the product includes a great variety of coils with reduced widths in which it is certainly not economical to use a large line for cutting coils under 300 mm and especially when very reduced spaces are necessary because of the product type.
Furthermore, the mini-line makes it possible to reach considerable speeds, up to 500 m/min. Other specifications: coil width from 300 mm to 600 mm, coil weight from 3 to 8 Ton, material thickness from 0.2 to 3.2 mm, and automatic decoiling by drawing or by loop.
Recommended for producing narrow coils, but especially a fast line for small spaces and particularly suitable for brass, copper, aluminium, tinfoil and lamination steel but also for cold-rolled, galvanized and prepainted materials and stainless steel.
| No. | Item | Description |
|---|---|---|
| 1 | Main Specification |
|
| 2 | Decoiler Machine Specification |
|
| 4 | Slitting Machine Specification |
|
| 7 | Recoiler Specification |
|
| 9 | Electrical Control System | 2 sets. Computer Control System is Siemens PLC. |
| 10 | Edge Collecting Machine |
|
