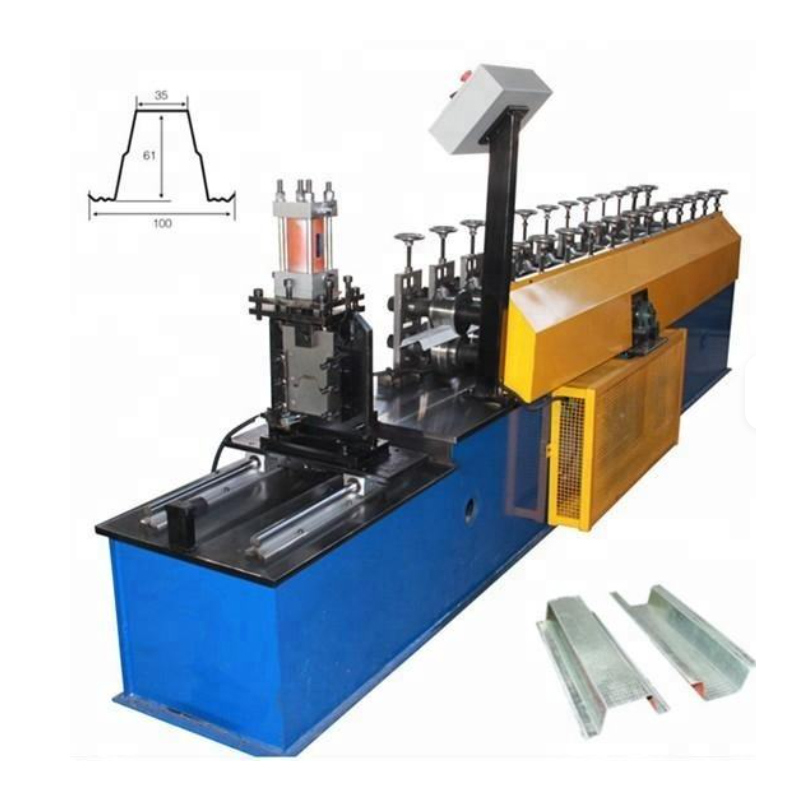

Omega Sheet Metal Roll Forming Line Machine Fully Automated

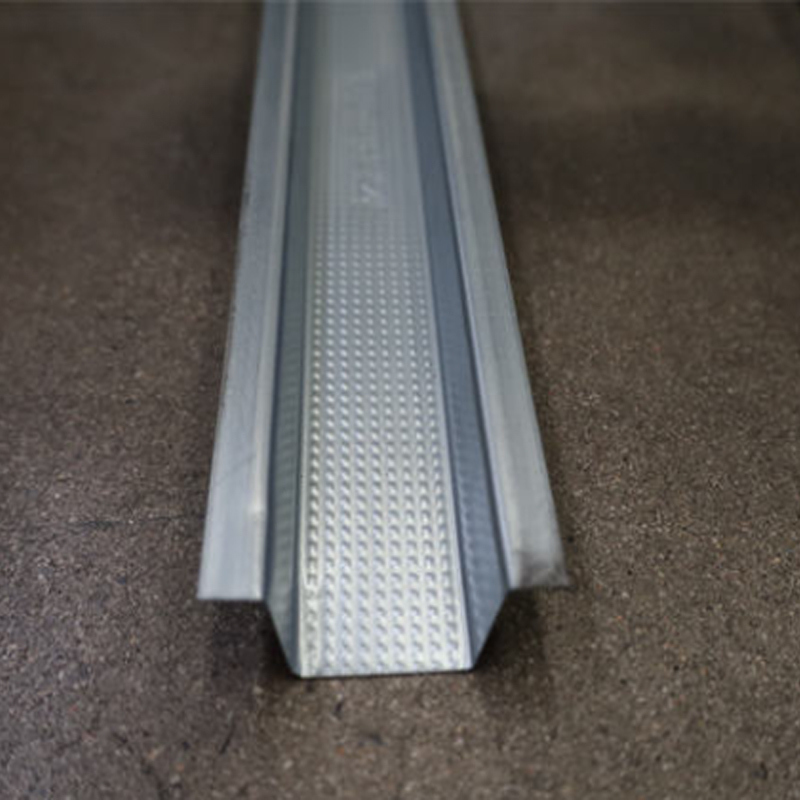

Metal framings used in concealed grid gypsum ceiling of light weight structure include furring channel, carrying channel, studs, tracks, wall angle, and main frame channel.
Optional: Embossing logos on the frames is a great way that most of our customers choose to impress their customers about their brands.
| Description | Explanation |
|---|---|
| Working speed | 10-20 m/min (Shear time is not included) |
| Pressed plate thickness | 0.3-1mm |
| Control mode | Panasonic PLC |
| Number of molding passes | 18 lanes [Electric width adjustment] |
| Roll material | Gcr15 quenching of steel after finishing HRC58-62℃, surface chrome plating |
| Shaft material and diameter | 45# Steel finishing, Shaft diameter is￠76mm |
| Main engine power | 5.5kw |
| Power of hydraulic station | 3kw |
| Hydraulic pressure | 12Mpa |
| Scissors material | Cr12Mov, quench HRC 58-62℃ |
| Length tolerance | 3m±1.5mm |
| Voltage | 380V, 50HZ, 3 phase (According to customer requirements can be adjusted) |
| Transmission mode | 1.0 inch double row chain |
| Equipment form | Card structure |
| Equipment color | Company color |
| Equipment size | L*W*H--11.5m*1.6m*1.2m |
| Date of delivery | 45 days |
| Payment method | 30% advance charge, 70% pay off on delivery |
FOB: Tianjin Xingang Port
The Delivery Time: 45 days after the down payment is received.
Packaging: Naked with Plastic Film.
Shipping: Via sea freight to nearest port (customer arranges inland transport). Shipping fees calculated based on destination.
Not exactly. For wider and double layer making machine. It can produce more than 6 kinds of panels.
Our machine's warranty period is 12 months. If the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost yourself. If after warranty period, we can through negotiation for to solve the problems, and we supply the technical support for the whole life of the equipment.
Yes, please tell me the destination port or address. We have rich experience in transport.
We are manufacturer and trading company.
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.
1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
