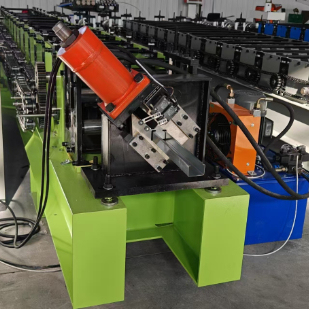

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

High Straight Level CZ Purlin Roll Forming Machine

Crush Resistance Automatic Purlin Roll Forming Machine

1.5-3MM Thickness Steel Purlin Roll Forming Machine

Nguồn gốc:

TRUNG QUỐC

Hàng hiệu:

FMS

Chứng nhận:

CE,ISO

Liên hệ với chúng tôi

Yêu cầu báo giá

Chi tiết sản phẩm

Điện áp:

380V 50Hz 3phase

Cân nặng:

8500 kg

Vật liệu con lăn:

Thép mạ crôm 45 #

độ dày:

1,5-3mm

Loại cắt:

Cắt thủy lực

Hệ thống điều khiển:

PLC

Điểm bán hàng chính:

Tự động

Năng lực sản xuất:

30 m/phút

Động cơ chính:

7,5kw

Làm nổi bật:

High Straight Level CZ Purlin Roll Forming Machine

Crush Resistance Automatic Purlin Roll Forming Machine

1.5-3MM Thickness Steel Purlin Roll Forming Machine

Điều khoản thanh toán và vận chuyển

Số lượng đặt hàng tối thiểu

1 bộ

Giá bán

negotiable

chi tiết đóng gói

Máy chính có màu khỏa thân, hộp điều khiển máy tính được đóng gói bằng nhựa.

Thời gian giao hàng

30 ngày

Điều khoản thanh toán

T/T, Liên minh phương Tây, l/c

Khả năng cung cấp

20 bộ mỗi tháng

Sản phẩm liên quan

Băng hình

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Nhận được giá tốt nhất

Băng hình

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Nhận được giá tốt nhất

Băng hình

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Nhận được giá tốt nhất

Băng hình

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Nhận được giá tốt nhất

Liên hệ với chúng tôi

86-317-2016816

Liên hệ ngay

Mô tả sản phẩm

Full Automatic Strip Steel C/Z/U Purlin Roll Forming Machine

Product Advantages

Our C/Z purlin interchangeable roll forming machine offers superior performance compared to competitors:

Produces purlins with exceptional straightness and crush resistance
Enables reverse lap capability for Z purlins, enhancing connection strength
Precision control via reduced motor and frequency regulation for speed, length, and positioning
Quick and easy interchangeability between C and Z profiles

Purlins are essential structural components in roofing systems, supporting rafters and roof beams. Our machine produces lightweight steel purlins that perfectly meet roof structure requirements while maintaining strength and durability.

Applications: Ideal for medium-sized industrial and civil construction projects including factories, warehouses, aircraft hangars, exhibition halls, theaters, stadiums, and commercial buildings as primary load-bearing structures.

Technical Specifications

Main motor power	7.5kw
Hydraulic motor power	4kw
Hydraulic Pressure	10-12MPa
Voltage	380V/50HZ/3Phase
Control System	PLC (Delta brand)
Feeding Material	Galvanized steel
Feeding Thickness	1.5-4.0mm
Speed	30-50m/min
Roller station	18 rows
Shaft diameter	80mm
Shaft material	45# steel
Roller material	45# steel
Cutter material	Cr12 quenched
Dimension	1100012001500mm
Weight	about 6700 kg

Warranty & Guarantee

1-year guarantee against manufacturing defects (excluding electrical components)
Warranty void in cases of:
- Damage from natural disasters
- User error or improper operation
- Unauthorized modifications
- Damage during relocation after installation

Payment Terms

40% advance payment required
60% balance payment before shipment

Delivery Information

FOB: Tianjin Xingang Port
Delivery Time: 30 days after receiving down payment
