| Attribute | Value |
|---|---|
| Raw material | PPGI/Galvanized sheet |
| Thickness | 0.25-0.8MM |
| Shaft material | 45# forge steel |
| Product name | IBR And Corrugated Double Layer Roof Roll Forming Machine Full Automatic |
| Forming speed | 8-15m/min |
| Main Motor Power | 5.5 KW |
| Electrical Hydraulic | 4 KW |
| Voltage | 380 V |

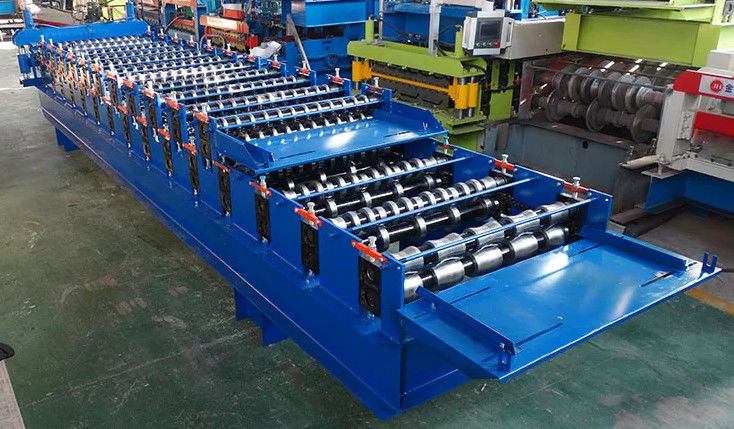

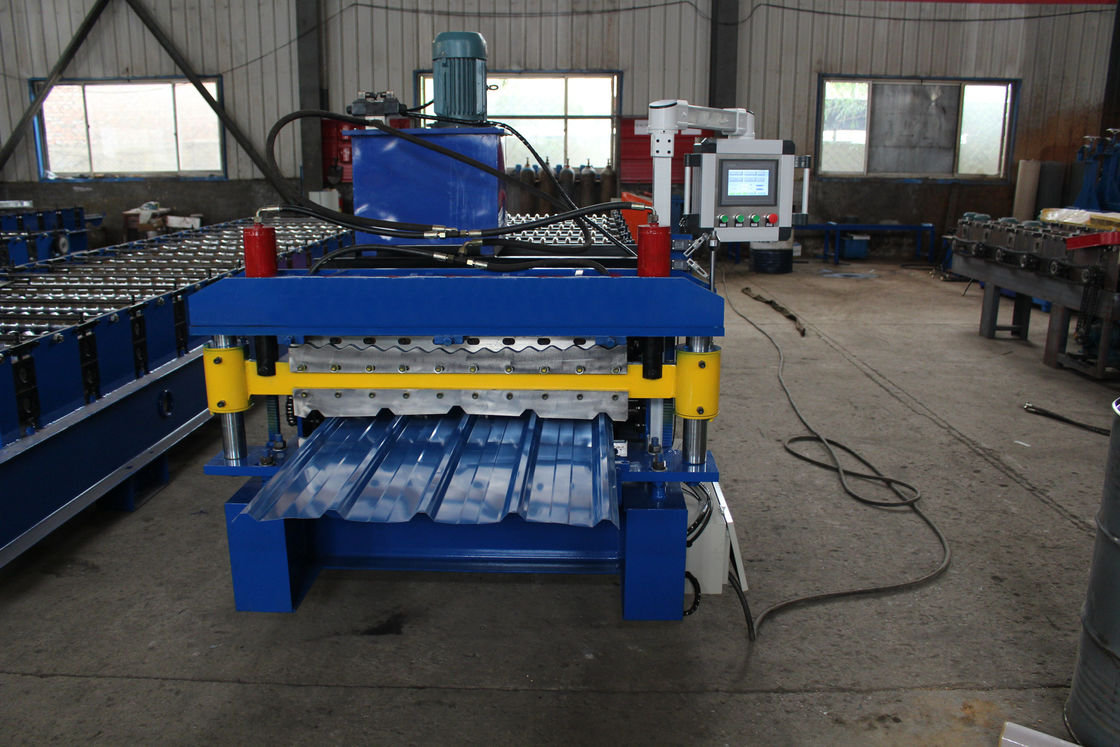

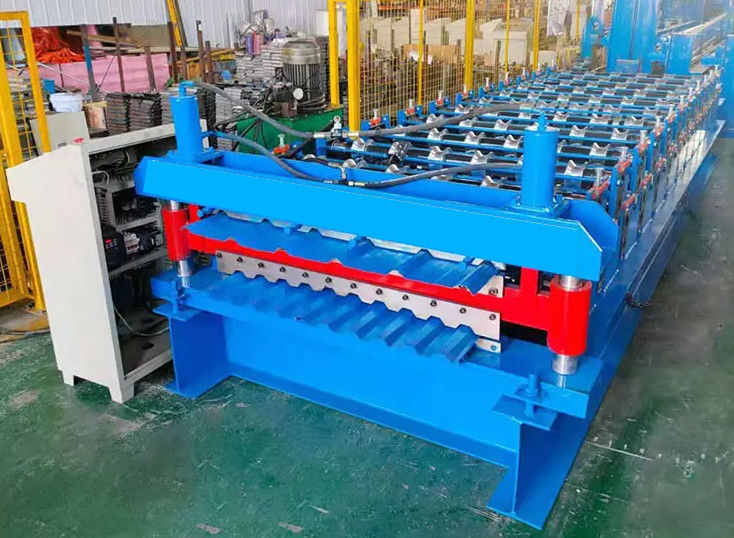

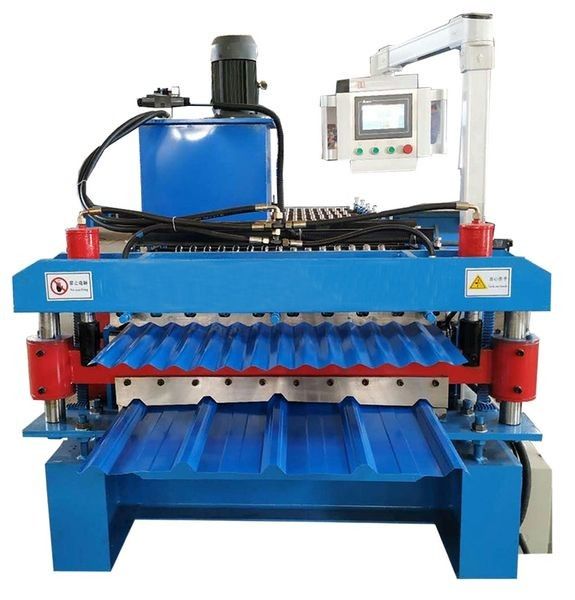

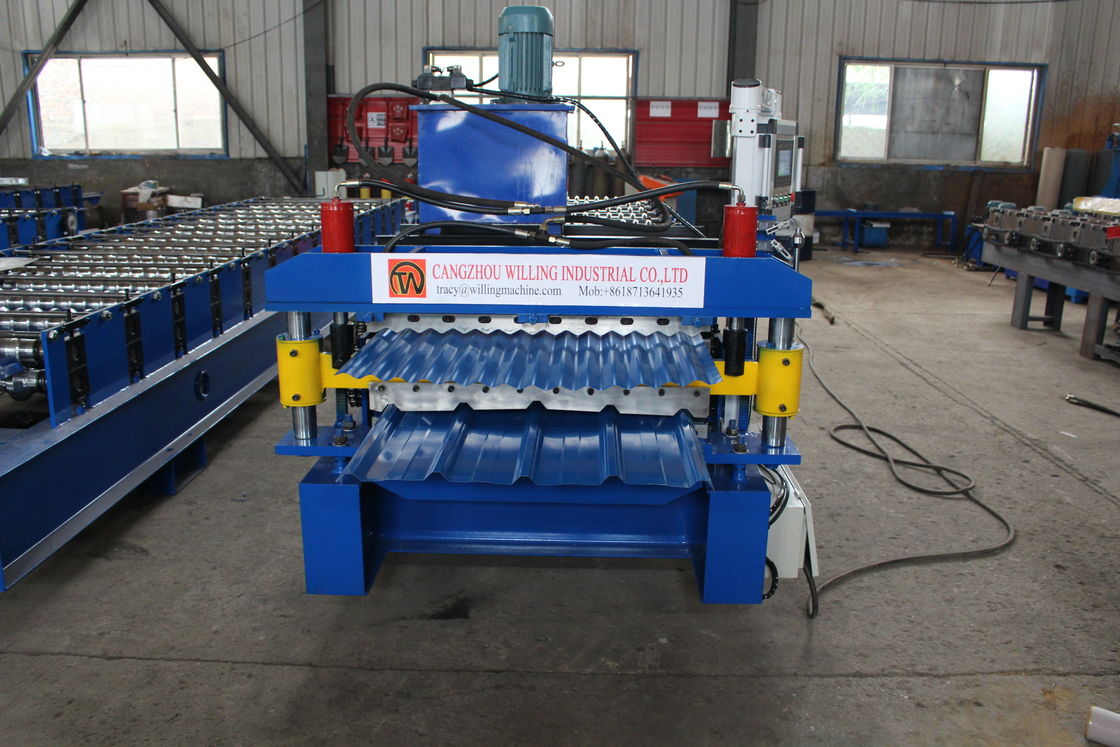

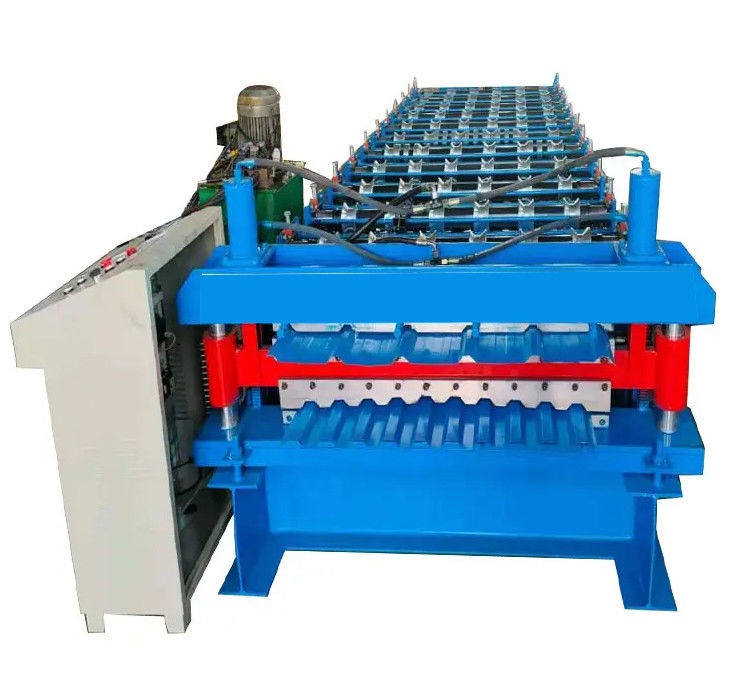

Corrugated Double Layer Roll Forming Machine Full Automatic PLC Control
The double layer rollformer produces a dual profile on the same machine, sharing the same de-coiler, drive trains and motors, but using different rolls and different cut offs. The double layer machine is particularly useful where operating or storage space is a problem. The machine however produces low volumes of product.
| Material Thickness | 0.25-0.8 mm |
| Working Speed | 8-15 m/min |
| Roller Stations | Upper layer 13 stations, Down layer 15 stations |
| Material of Roller | 45# steel quenching process and chrome coated |
| Material of Main Shaft | 45 steel forged |
| Main Motor Power | 5.5 KW |
| Electrical Hydraulic Station Power | 4 KW |
| Hydraulic Station Pressure | 12.0 Mpa |
| Material of Cutter | Cr12 |
| Driving Mode | Single chain 1 inch |
| Cutting accuracy | ±2mm |
| Power Supply | 380V, 60HZ, 3 PHASES |
