Nguồn gốc:
Trung Quốc đại lục
Hàng hiệu:
FAMOUSE
Chứng nhận:
ISO, CE
Số mô hình:
Dây chuyền rạch tự động mini
Băng hình
Băng hình
Băng hình
Băng hình
| Attribute | Value |
|---|---|
| Product Name | Simple High Speed Mini Slitter Slitting Line With Hydraulic Uncoiler And Recoiler |
| Cutting Material | Galvalume, Galvanized, PPGI, Aluminum |
| Material Thickness | 0.3 mm - 3 mm |
| Working Speed | 8 m/min - 30 m/min (can be customized) |
| Coil Weight | 5 tons / 7 tons / 10 tons (can be customized) |
| Slitting Pcs | 2 - 30 pcs |
| Machine Weight | 13000 KG |
| Cutting Width Precision | ± 0.01 - ± 0.05 mm |
Simple High Speed Mini Slitter Slitting Line With Hydraulic Uncoiler And Recoiler
The mini slitter line can become an ideal support if the product includes a great variety of coils with reduced widths in which it is certainly not economical to use a large line for cutting coils under 300 mm and especially when very reduced spaces are necessary because of the product type.
Furthermore, the mini-line makes it possible to reach considerable speeds, up to 500 m/min. Other specifications: coil width from 300 mm to 600 mm, coil weight from 3 to 8 Ton, material thickness from 0.2 to 3.2 mm, and automatic decoiling by drawing or by loop.
Recommended for producing narrow coils, but especially a fast line for small spaces and particularly suitable for brass, copper, aluminium, tinfoil and lamination steel but also for cold-rolled, galvanized and prepainted materials and stainless steel.
| No. | Item | Description |
|---|---|---|
| 1 | Main Specification | 1 Raw Material: Galvanized, Aluminum, Color steel, Hardness 235MPa - 485MPa 2 Raw Material Thickness: 0.3 mm - 3.0 mm 3 Raw Material Width: 600 mm - 1600 mm 4 Tape Inner Diameter: φ 480 mm - φ 530 mm 5 Tape Outer Diameter: φ 1600 mm 6 Coil Weight: 5 tons - 10 tons 7 Slitting No.: Max 30 pcs 8 The Highest Slitting Line Speed: 8 m/min - 30 m/min 9 Minimum Cutting Line Width: 35 mm 10 Cutting Width Precision: ± 0.01 - ± 0.05 mm 11 Rated Operational Voltage: 240 V, 3 Phase, 60 Hz 12 Total Weight: 13000 KG 13 Working Space (L*W): 20000 mm*6000 mm |

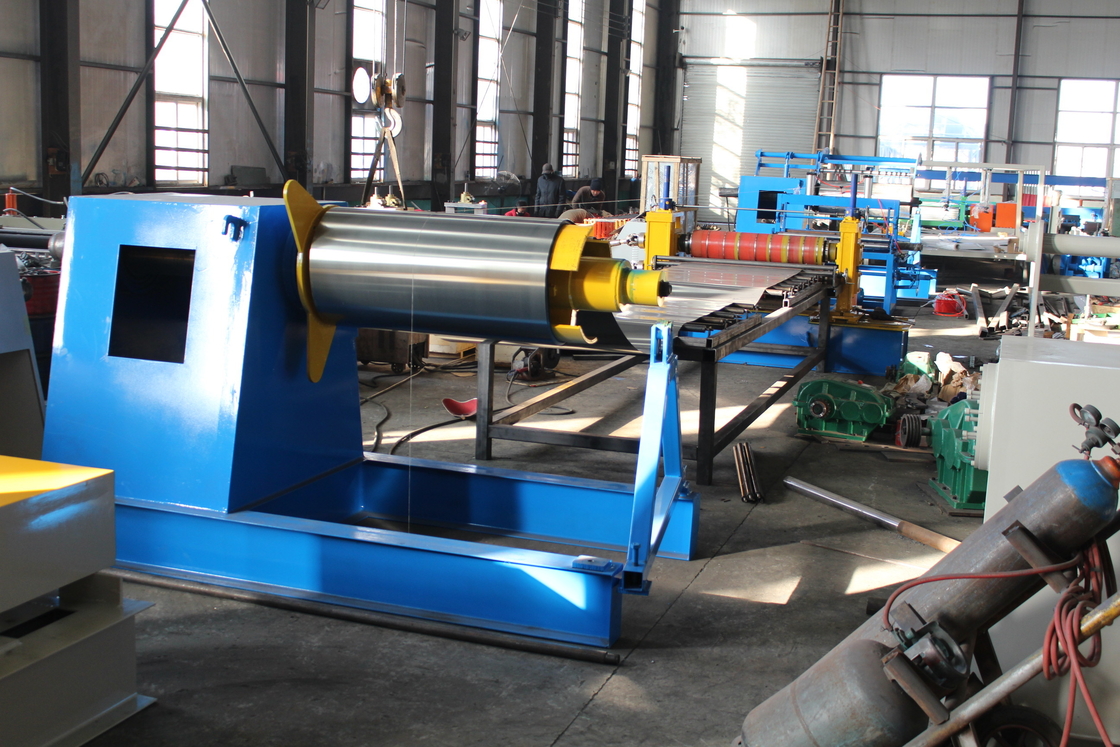

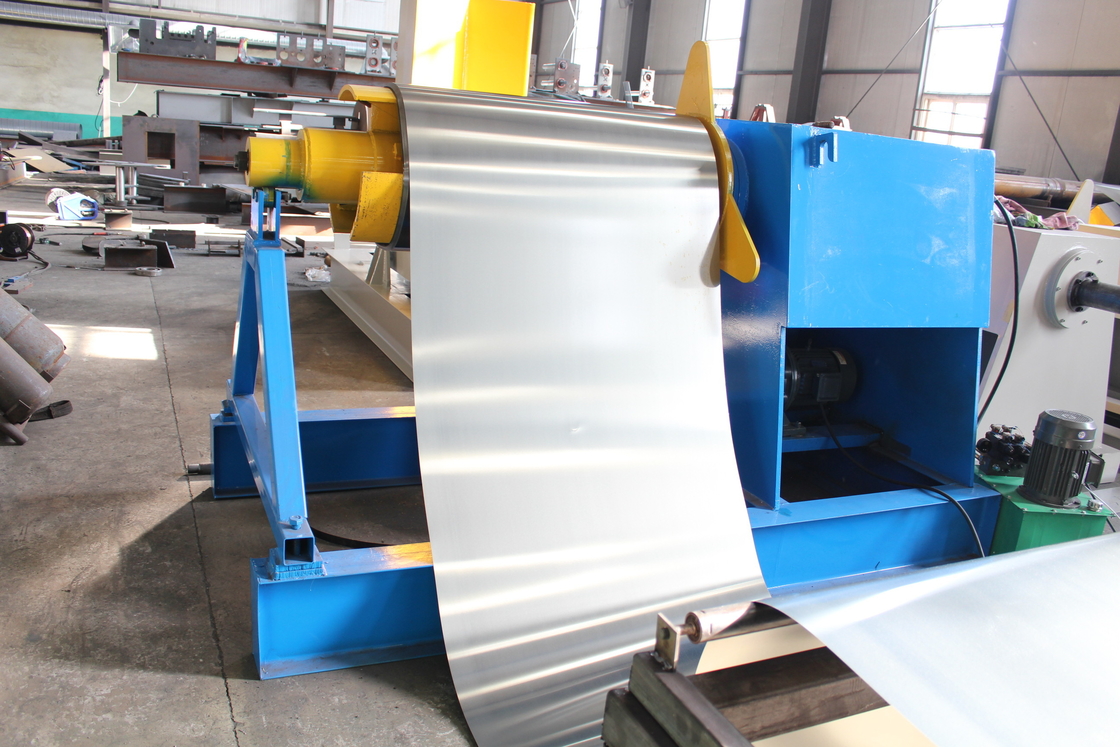

| 2 | Decoiler Machine Specification | 1 Tape Outer Diameter: Max φ 1600 mm 2 Tape Width: 600 mm - 1600 mm 3 Tape Inner Diameter: φ 480 mm - φ 530 mm 4 Coil Weight: 5 tons - 10 tons 5 Max Working Speed: 8 m/min - 30 m/min 6 Tape Tight Range: φ 480 mm - φ 530 mm 7 Shaft Diameter: φ180 mm 8 Roller Effective Length: 1600 mm 9 Drive Motor Power: 5.5 KW 10 Loading Car Diameter: φ 700 mm - φ 1500 mm 11 Loading Car Weight: 5 tons - 10 tons 12 Car Speed: About 4 m/min |

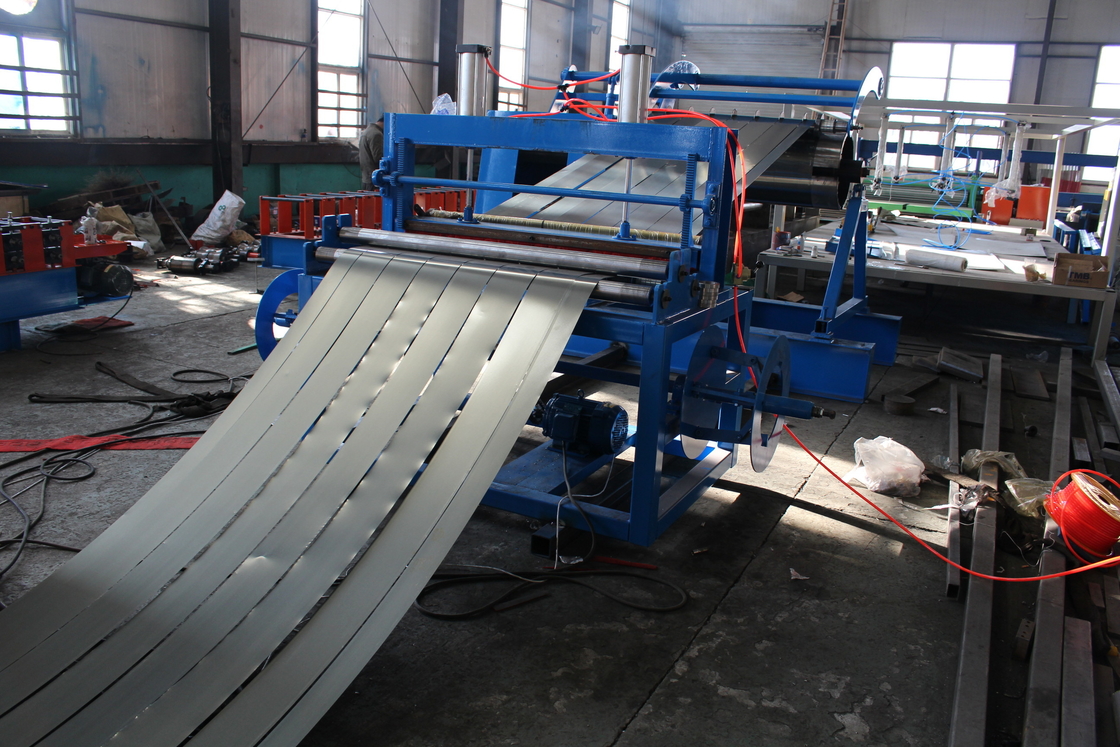

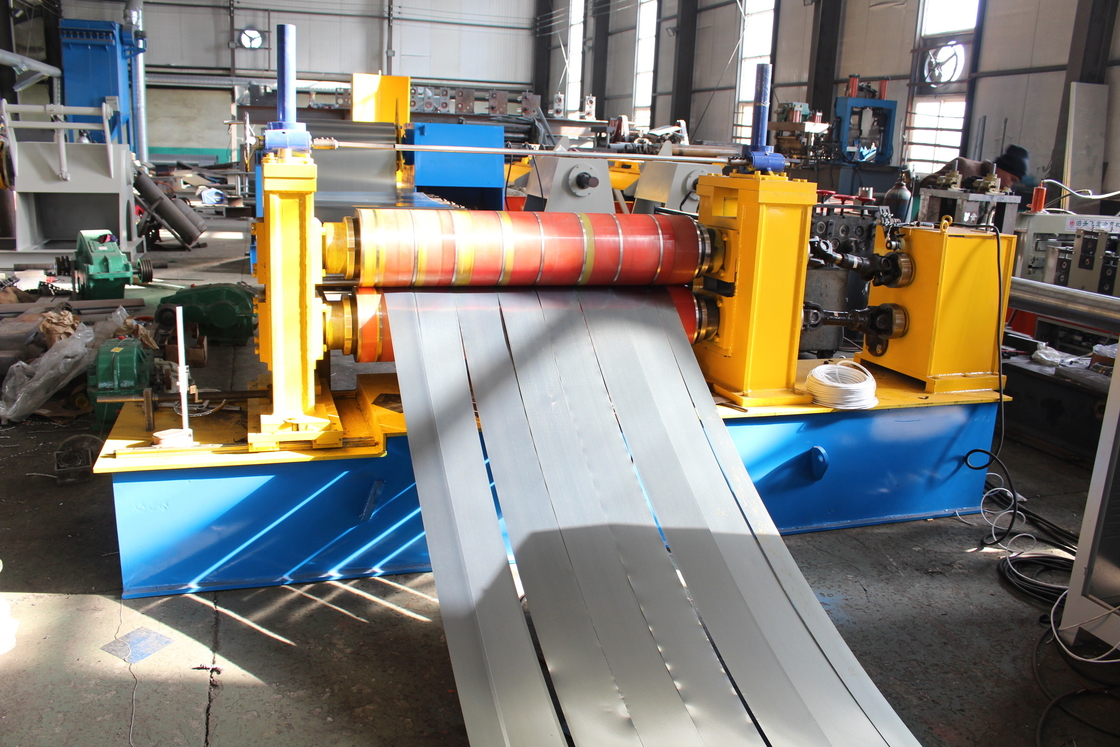

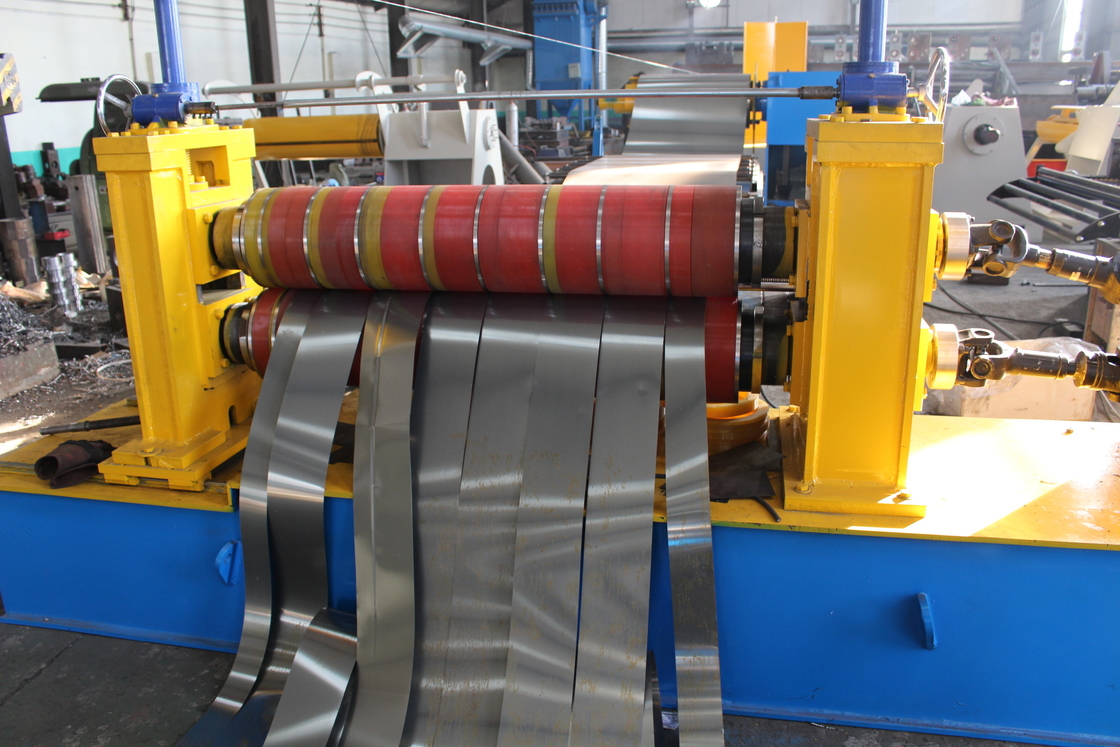

| 4 | Slitting Machine Specification | 1 Cutting Width: Max φ 1600 mm 2 Cutting Thickness: 0.3 mm - 2.0 mm 3 Cutter Shaft Diameter: φ180 mm 4 Cutter Shaft Material: Cr 40 5 Cutter Size: 200 mm*300 mm*15 mm 6 Cutter Material: Cr12MoV 7 Cutter Spacer Size: 180 mm*240 mm*15 mm 8 Drive Motor: 15 kw 9 Cutting No.: 2-30 pcs 10 Cutter No.: Max 32 pcs |

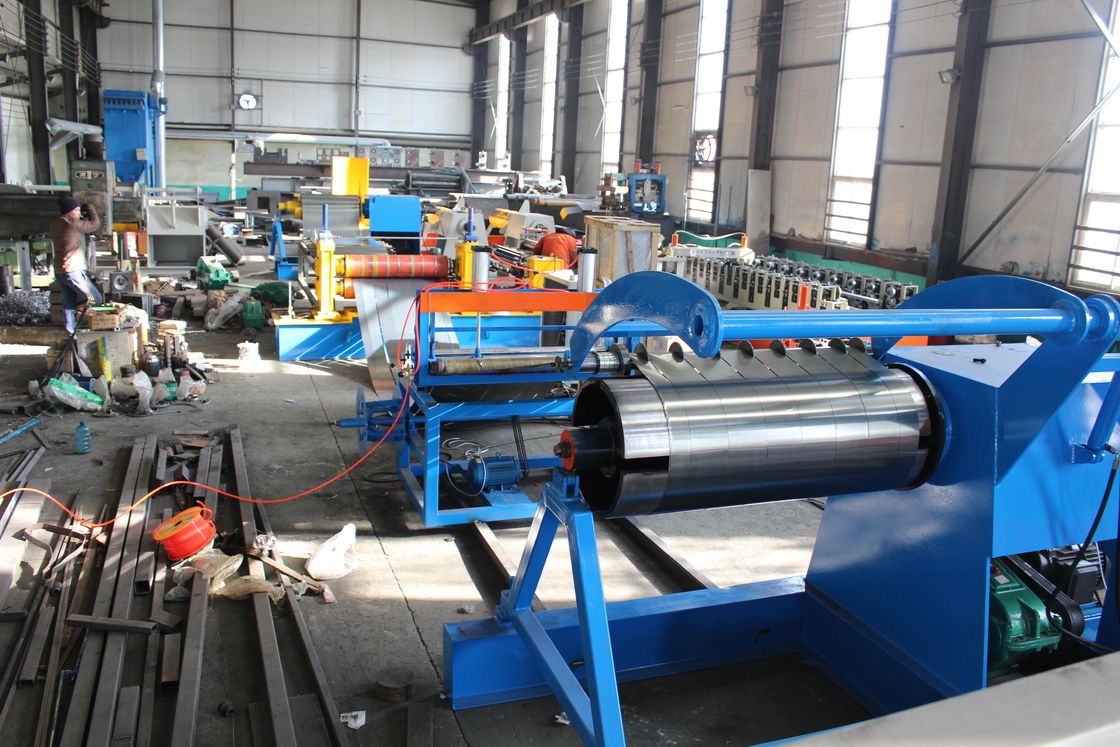

| 7 | Recoiler Specification | 1 Tape Outer Diameter: Max φ 1600 mm 2 Tape Width: 600 mm - 1600 mm 3 Tape Inner Diameter: φ 480 mm - φ 530 mm 4 Coil Weight: 5 - 10 tons 5 Max Working Speed: 8 m/min - 30 m/min 6 Tape Tight Range: φ 485 mm - φ 530 mm 7 Shaft Diameter: φ 180 mm 8 Roller Effective Length: 1750 mm 9 Drive Motor Power: 30 kw 10 Loading Car Diameter: φ 1000 mm - φ 1750 mm 11 Loading Car Weight: Max 10 tons 12 Car Speed: About 4 m/min |
| 9 | Electrical Control System | 2 sets. Computer Control System is Siemens PLC. |
| 10 | Edge Collecting Machine | 1 Drive Motor: 3 kw 2 Collecting Material Width: Max 20 mm 3 Double Edge Width: 400 mm |
