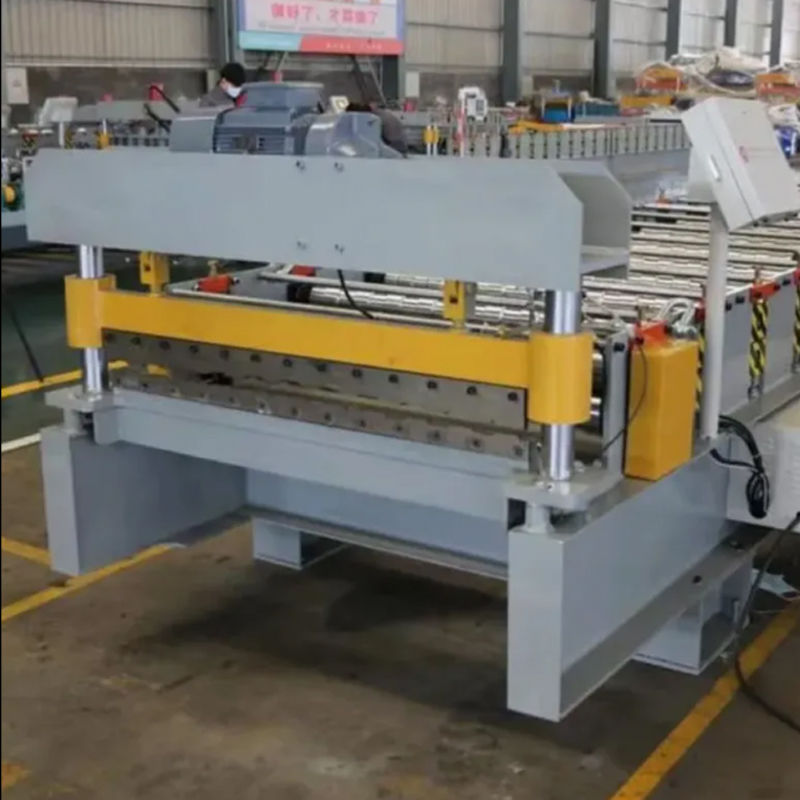

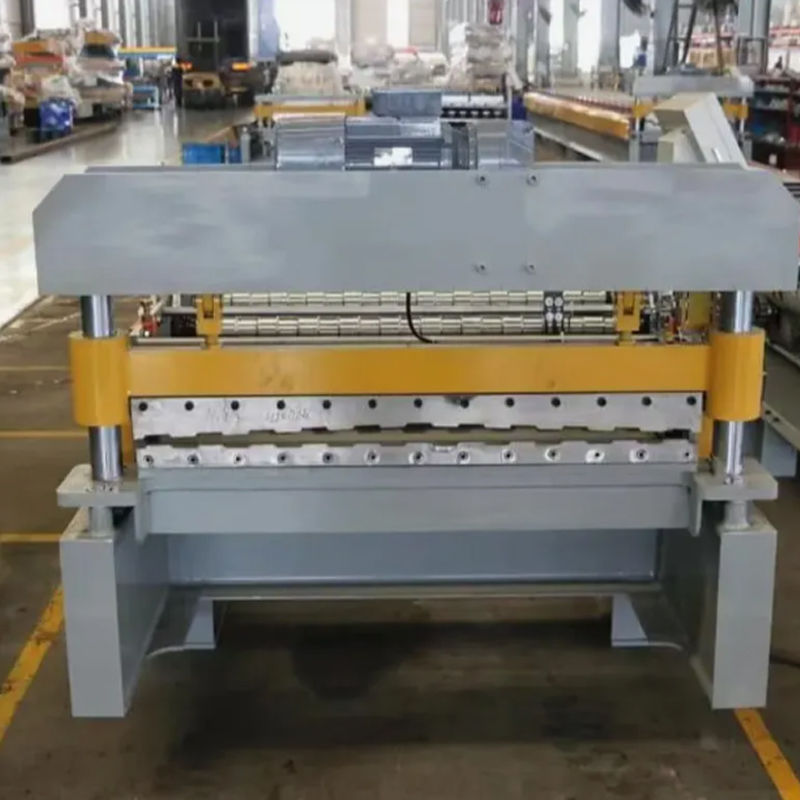

The PLC Control Metal Cold Roofing Sheet Making Machiney Roof Tile Wall Pannel Roll Forming Machine is composed of hydraulic shear head, roll forming system, electrical system, etc.
The roofing sheet wall pannel roll forming machine has the following characteristics:
1. Advanced technology: the line adopts continuous coil production after cold bending to determine the precision of the long cutting parts forming shape rules length accurate consistency.Good appearance and high strength of molding workpiece.
Specification
| Warranty of core components | 1 Year |
| Voltage | 380V 50Hz |
| Weight | 3500kg |
| Production Capacity | 8-15m/min |
| Power | 5.5Kw |
| Dimension(L*W*H) | about 7000*1200*1200mm |
| Applicable Material | GI,PPGI (According to customer requirements) |
| Production Capacity | 8-15M/Min |
| Voltage | 380V.50HZ.3Phase |
| Roll material | 45# high grade steel |
| Frame thickness | 16mm |
| Core Components | Motor, PLC |
| Roll stations | 12 |
| Rolling thinckness | 0.3-0.7mm |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
RFQ

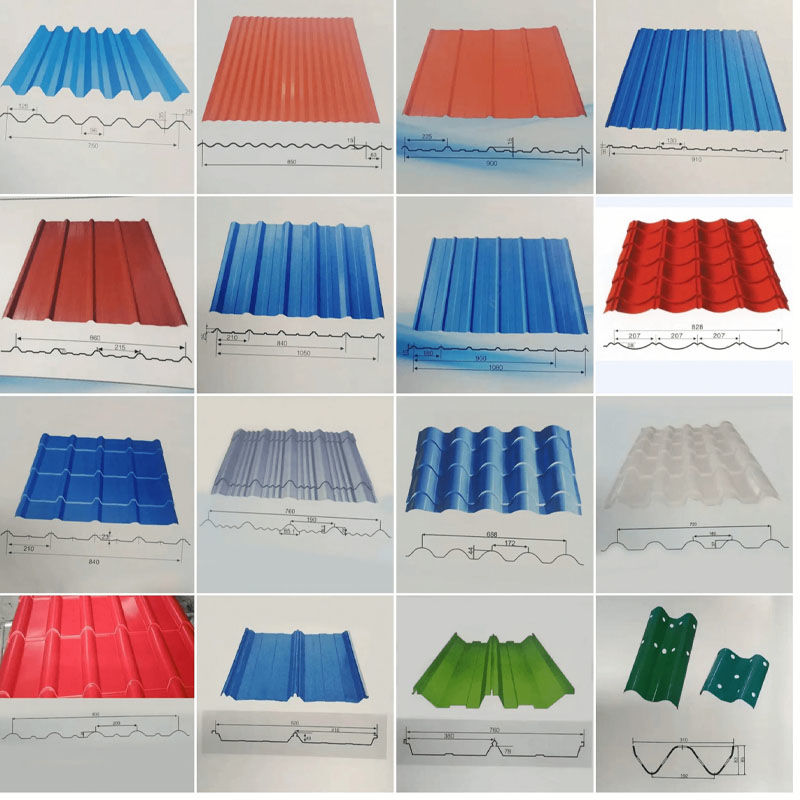

1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. What can you do if the machine broken?
Our machine's warranty period is 12 months,if the broken parts can't repair,we can send the new parts replace the broken parts ,but you need pay the express cost yourself.if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
3. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.
4. Are you manufacturer or trading company?
We are manufacturer and trading company .
5. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.
6. How can I trust you that machines pasted testing running before shipping?
1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
