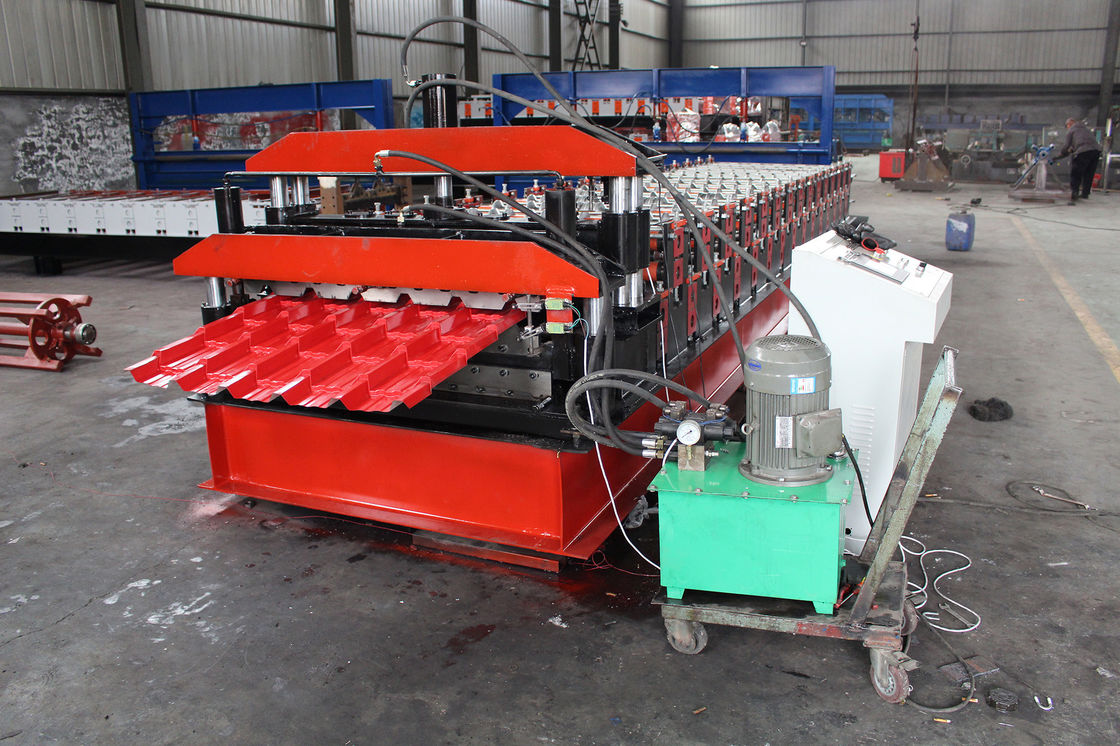

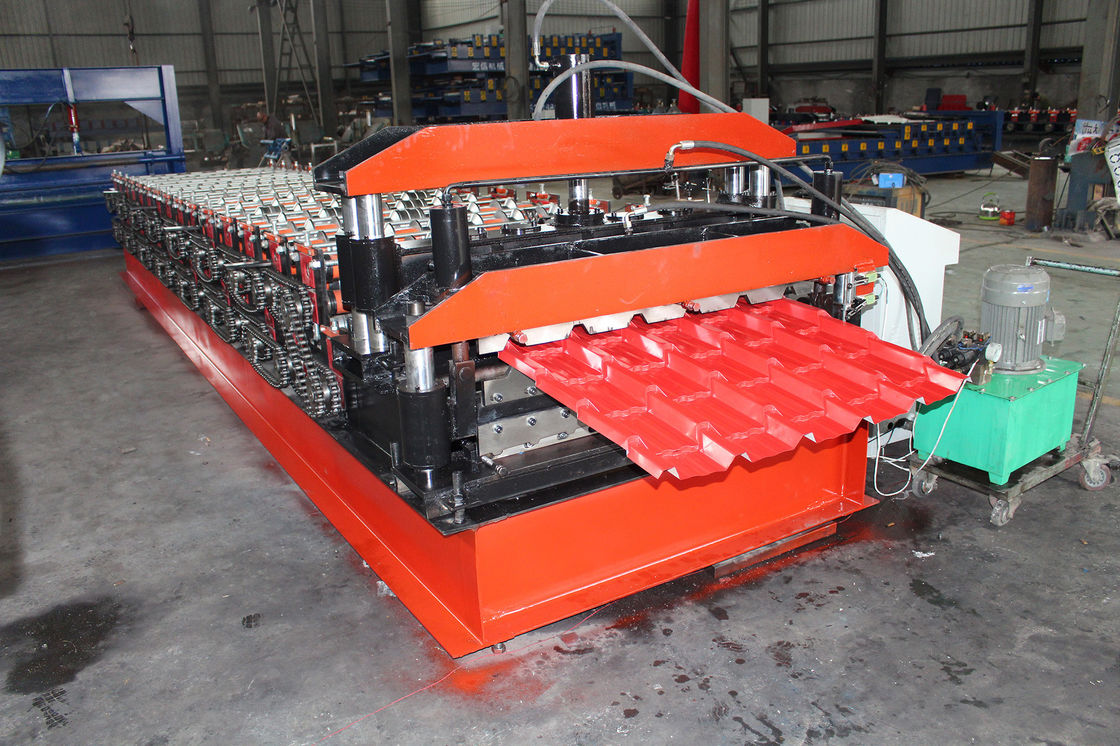

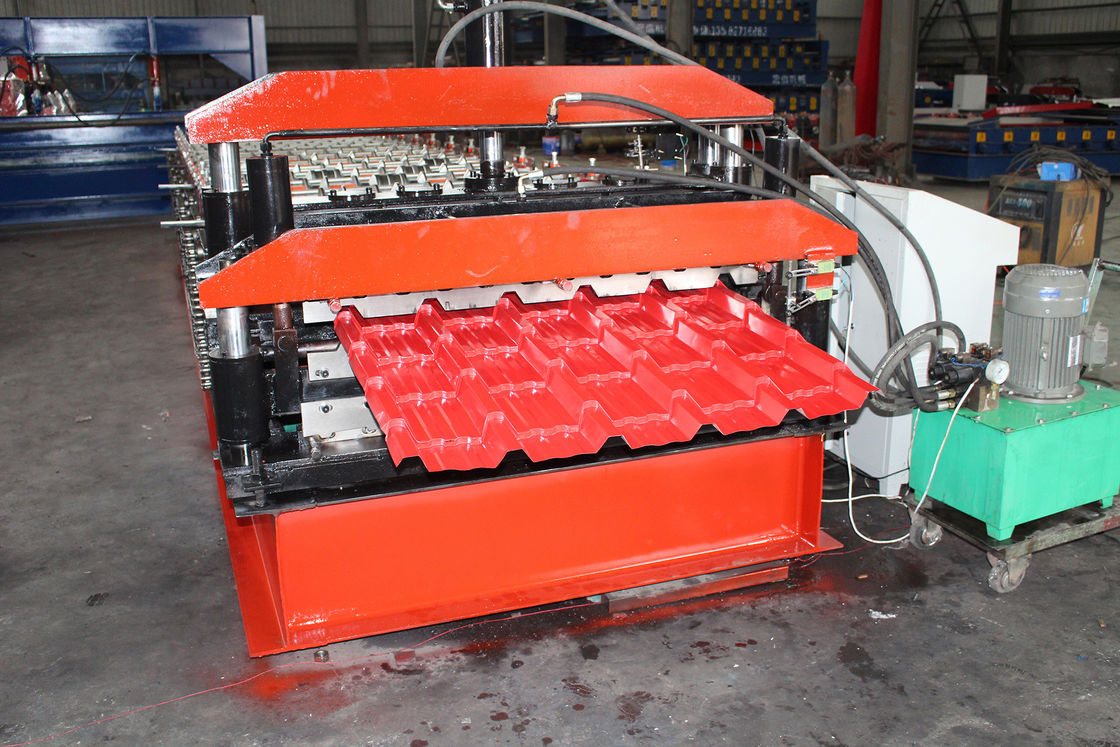

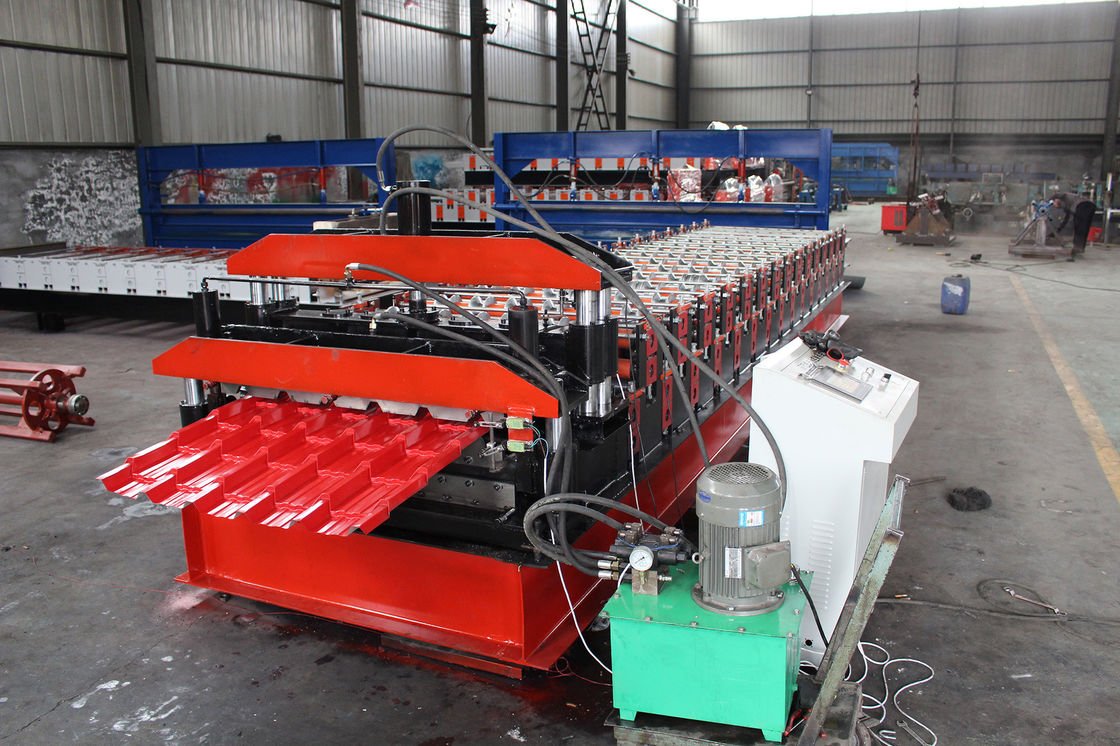

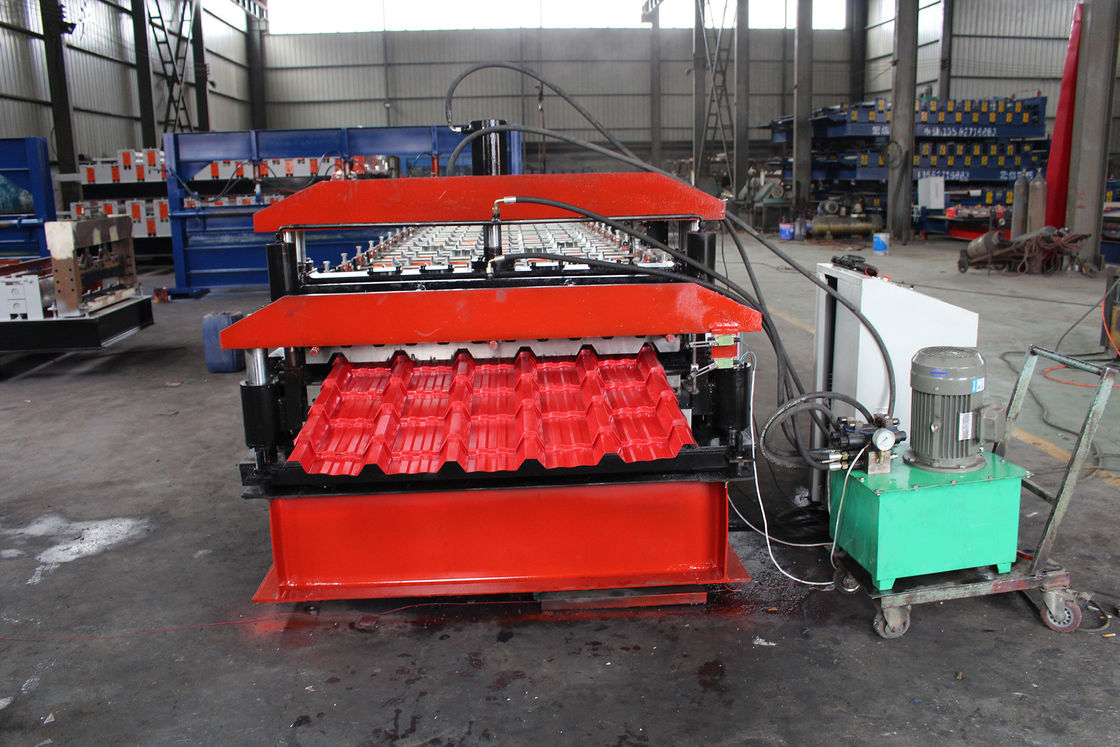

Double Layer Panel Roll Forming Macihine Lines
Roofing tile machine, double layer roof wall machine can produce two or three types profile sheets, It's more cost effective than single layer machine and can save space and cost for you! .metal roof tile/panel is widely used in constructions and buildings,it can be uesd to build roof and wall.This kind of material can be used in many places such as gyms,warehouses,factories,etc.
Equipment Detailed Parameters:
1 | Suitable Material | PPGI (235Mpa) |
2 | roller material | 45# steel plated with chrome |
| 3 | Rows of rollers | 15 rows & 16 rows |
| 4 | Way of drive | chaindrive,Gearbox drive(optional) |
| 5 | Product automatic stacker | 6m length |
| 6 | Feeding width | 1220mm |
| 7 | Production Capacity | 12 m/min |
8 | Rolling thinckness | 0.3-0.8m |
| 9 | Diameter of shaft | ￠75mm |
10 | Voltage | 380V 50Hz 3phases |
| 11 | main motor power | 5.5kw |
| 12 | hydraulic station power | 4kw |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
