Nguồn gốc:
TRUNG QUỐC
Hàng hiệu:
FMS
Chứng nhận:
ce
Số mô hình:
bánh sandwich FMS
Processes: Composite Decoiler—Roll Forming—laminating system (ribbon, gelatinizing, heating up, compounding, crimping, notching, edge trimmer)—cutting system—Runout Table
| Control System | PLC |
| Roller Surface Treatment | Polishing And Chrome Plating |
| Warranty | 2 Year |
| Cutting Length Error | ±2mm |

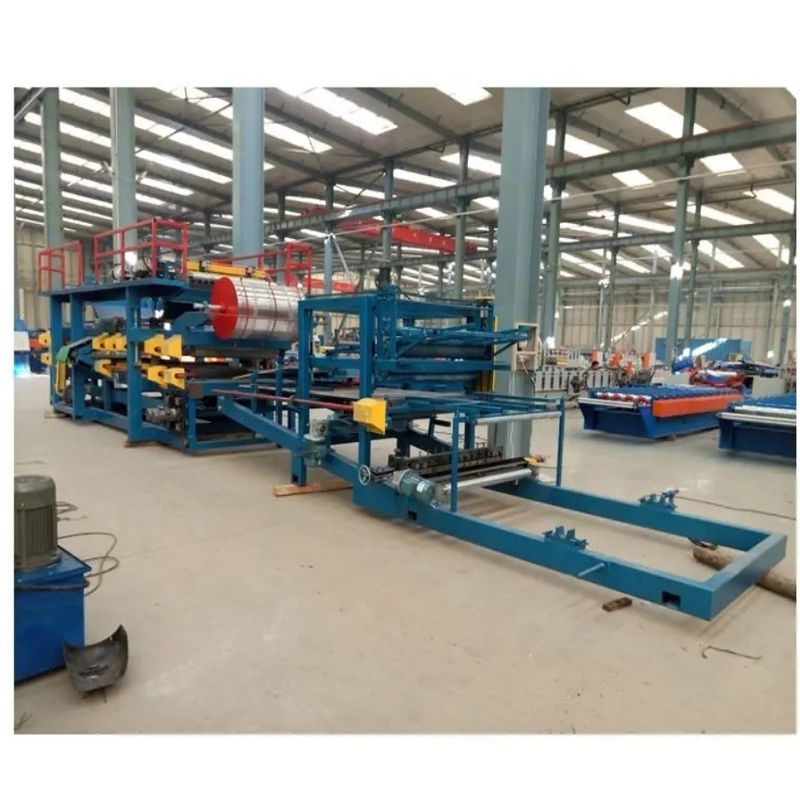

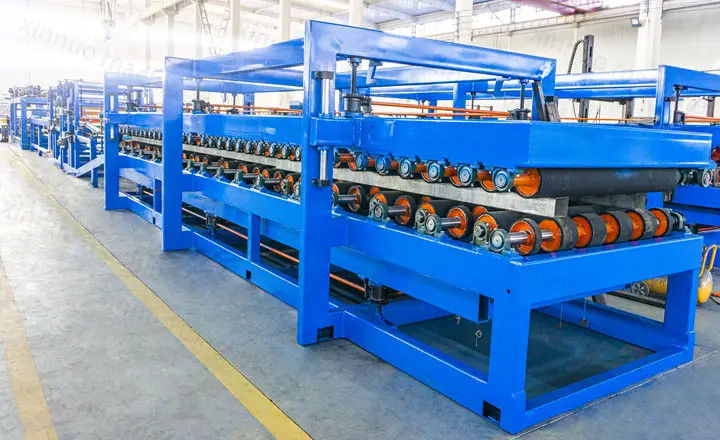

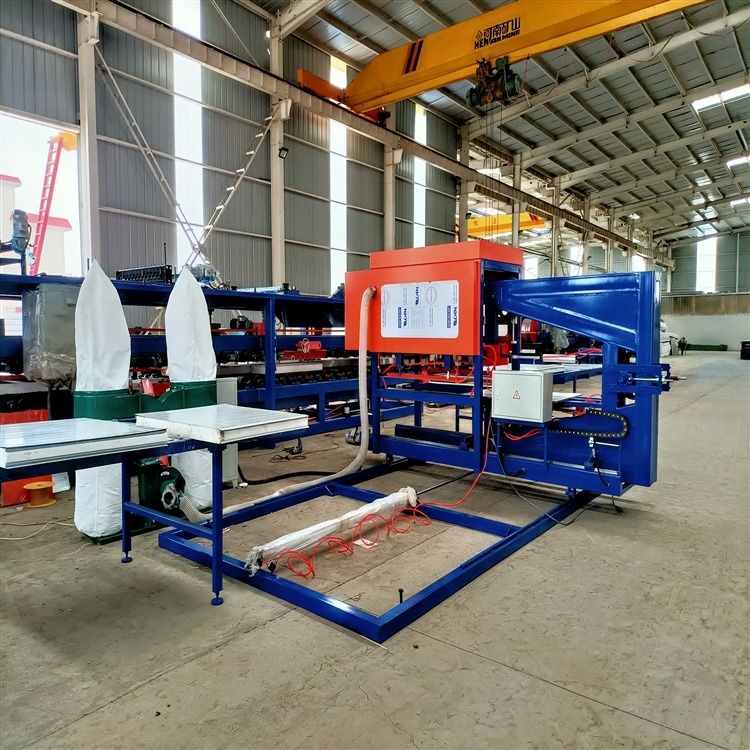

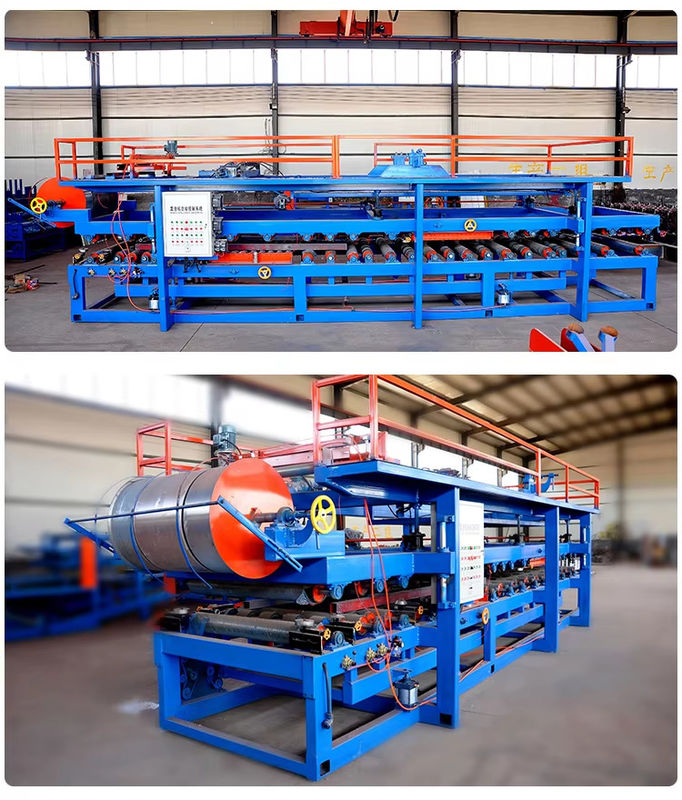

| Product Name | Sandwich Panel Making Machine |
| Cutting System | Flying Tracking Cutting |
| Total Weight | 30T |
| Material Thickness | 0.3-0.8mm |
| Dimension | 45m*2.5m*2.4m |
| Main Motor Power | Total 32KW |
The product of this production line – Rock wool and foam sandwich panel is the new wall building materials which have the best function of heat preservation, heat insulation, sound insulation, fire retardant, water proof, portable, environmental protection etc. It can be widely used in the external wall of retaining and decoration of high-rise building and senior office building The Rock wool and foam sandwich panel is the new wall building material for retaining, decoration and heat preservation. It is the most popular of new generation of decorative wall retaining timber construction. The product of this line—Rock wool and foam sandwich panel is produced with foaming at working site. There’s device which can inject the foaming material between the upper and lower metal sheet ,then will be sent into double belt and evenly forwarded. The chemosynthesis and solidification are finished inside of double belt. The cutting is finished according to the length which is set before running the machine, it is non-stop cutting type, and the cutter will be moved along with the panel.
Q1. How do I choose the right machine for me?
