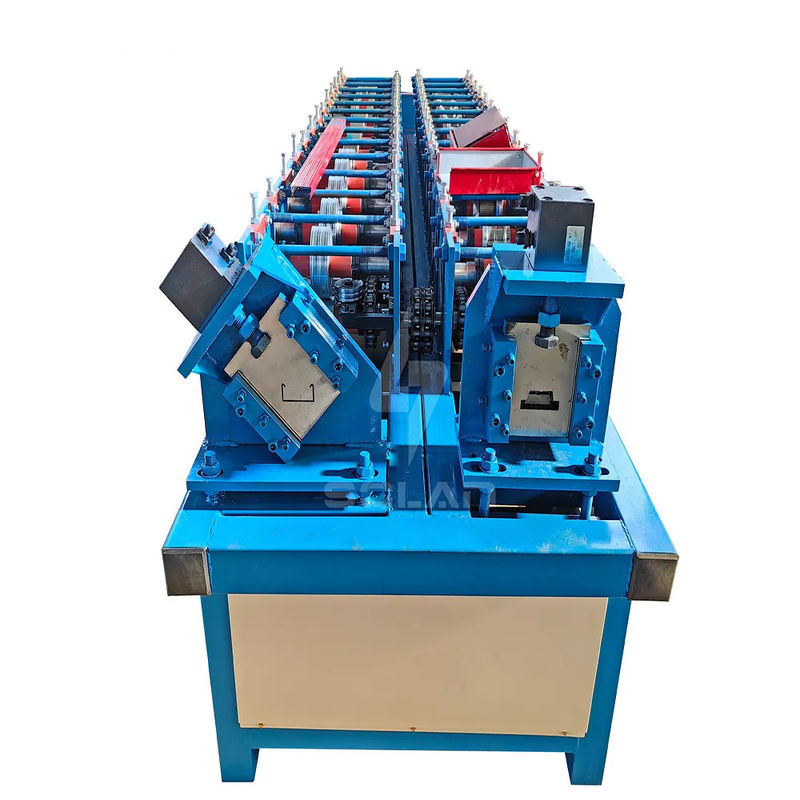

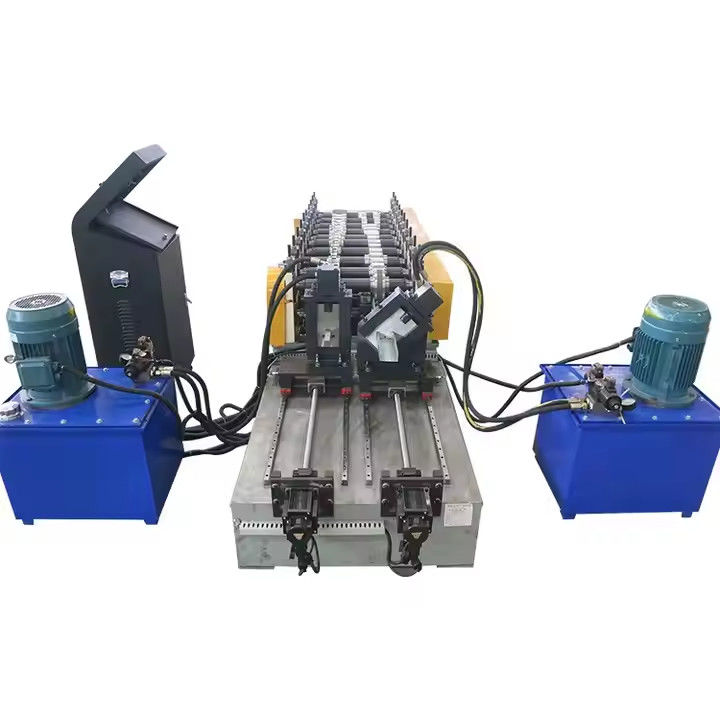

AUTO Change Size type High Speed CU Stud and track roll forming machine is a complete roll forming system which produces 97% of all the stud and track sizes commonly used today. Ideal for start-up facilities or looking to increase production, it is engineered for high volume(Max production speed 120m/min) and high quality. European free standing type frame design, equipped with servo motor flying cutter, Automated width change(No manual roll changes). Every forming station with Gear Box transmission, more stable and long working life. Stud & track packaging equipment also available for options.
| Shaft Diameter | 70mm |
| Cutting Tolerance | ±2mm |
| Dimension | 6.5*0.8*1.2m |
| Transmission | Chain |
| Control System | PLC |
| Warranty | 1 Year |
| Cutting Type | Hydraulic Cutting |
| Weight | 1.5T |
| Power | 5.5KW |
| Cutting Length | Adjustable |
Light-gauge steel roll-forming is a process in metal stud manufacturing where thin steel sheets are shaped by passing them through rollers to create the characteristic “C” or “U” profile of metal studs used in construction framing. This method allows for precise customization of dimensions, such as width and depth, and the addition of holes or notches for wiring and utilities. Metal stud manufacturing plays a crucial role in the construction industry, providing a reliable and versatile solution for framing interior walls, ceilings, and partitions.
Terms:
1.Delivery:in stock
2.Package:export standard package for container
3.Payment:TT (30% by TT in advance,70% by TT after you inspect machine we need)
4.Delivery date:within 30 working days after receiving deposit
5.Products Warranty:12 month,and we will provide the technical support for whole life of the equipment.
