Name: C U Stud With Punching Stud And Track Roll Forming Machine With High Speed
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Kênh FMS-stud&track
Price: 8,000.00 USD
Availability: InStock

Trang chủ > các sản phẩm > Máy tạo hình cán Stud và Track >

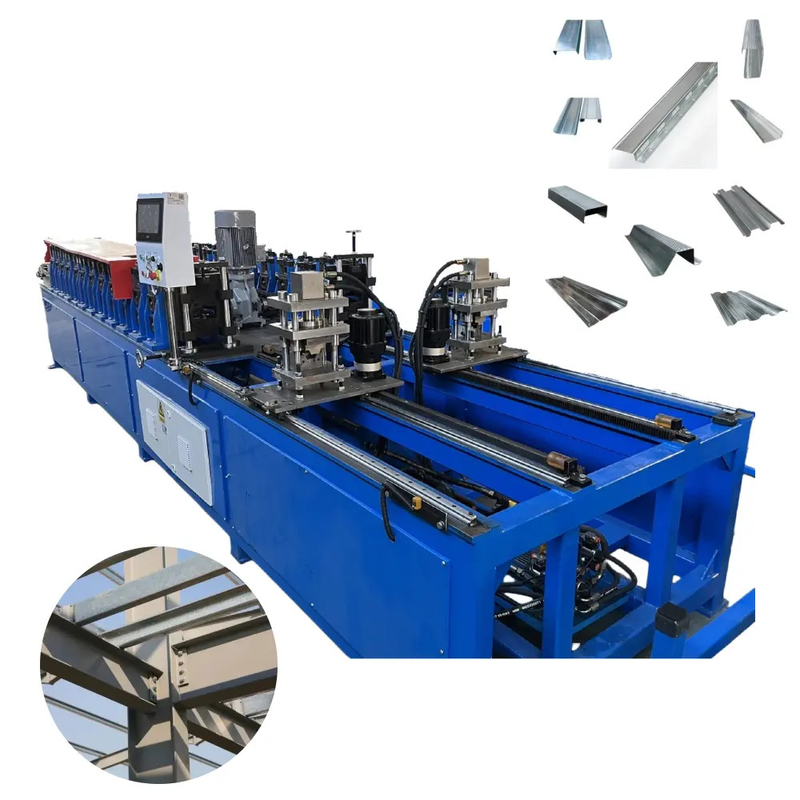

C U Stud With Punching Stud And Track Roll Forming Machine With High Speed

Punching Stud Roll Forming Machine

High Speed Stud Roll Forming Machine

Track Roll Forming Machine

Nguồn gốc:

TRUNG QUỐC

Hàng hiệu:

FMS

Chứng nhận:

Số mô hình:

Kênh FMS-stud&track

Liên hệ với chúng tôi

Yêu cầu báo giá

Chi tiết sản phẩm

Hệ thống điều khiển:

PLC

Con lăn:

15-11

Bảo hành:

1 năm

Tên sản phẩm:

Máy tạo hình cán Stud và Track

Tốc độ hình thành:

10-25m/phút

Vật liệu:

Thép

Cắt dung sai:

± 2 mm

Đường kính trục:

70mm

Làm nổi bật:

Punching Stud Roll Forming Machine

High Speed Stud Roll Forming Machine

Track Roll Forming Machine

Điều khoản thanh toán và vận chuyển

Số lượng đặt hàng tối thiểu

1 bộ

Giá bán

6000-10000

chi tiết đóng gói

Khỏa Thân với Phim Nhựa.

Thời gian giao hàng

45 ngày

Điều khoản thanh toán

T/T, L/C,

Khả năng cung cấp

20 bộ/tháng

Sản phẩm liên quan

Băng hình

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Nhận được giá tốt nhất

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Nhận được giá tốt nhất

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Nhận được giá tốt nhất

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Nhận được giá tốt nhất

Liên hệ với chúng tôi

86-317-2016816

Liên hệ ngay

Mô tả sản phẩm

Product Description:

Light-gauge steel roll-forming is a process in metal stud manufacturing where thin steel sheets are shaped by passing them through rollers to create the characteristic “C” or “U” profile of metal studs used in construction framing. This method allows for precise customization of dimensions, such as width and depth, and the addition of holes or notches for wiring and utilities. Metal stud manufacturing plays a crucial role in the construction industry, providing a reliable and versatile solution for framing interior walls, ceilings, and partitions.

Advantages of Roll Former

• Automatic roll forming and cutting with Inverter, PLC, HMI.
• Automatic programmable length settings via the touch panel.
• Customize design.
• Stable operation with strong power and body frame.

Sheet Roll Forming Machine Line

• Decoiler • Roll forming • Cutting • Run table, with PLC contact system

Technical Parameters:

Product Name	Stud And Track Roll Forming Machine
Dimension	6.50.81.2m
Warranty	1 Year
Rollers	11-15
Forming Speed	10-25m/min
Shaft Diameter	70mm
Cutting Tolerance	±2mm
Power	5.5KW
Cutting Length	Adjustable
Control System	PLC

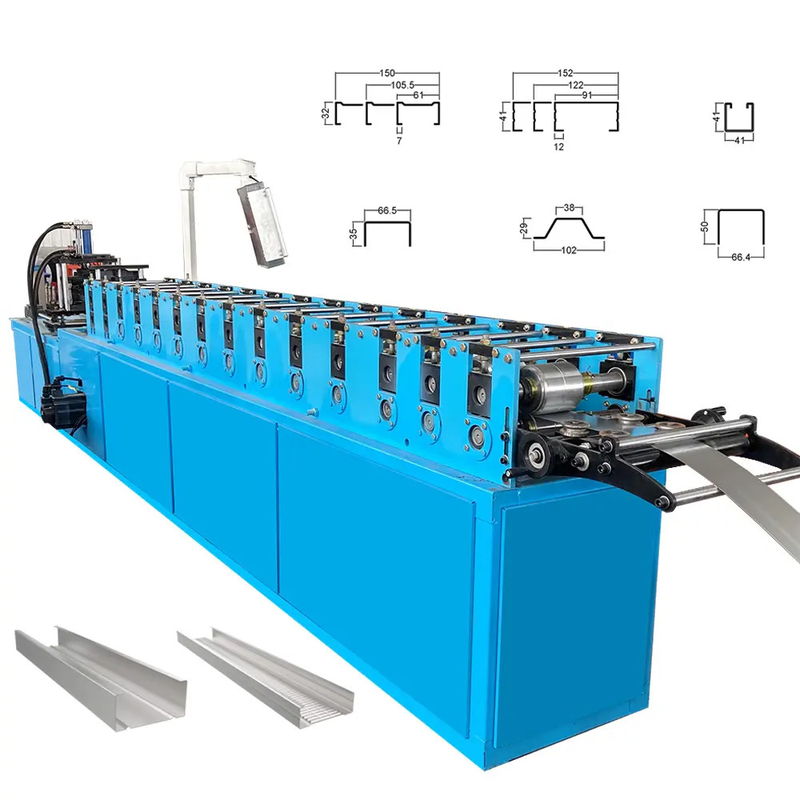

Drawing for custom profiles

As a leading metal forming manufacturer, we are not limited to a specific version, but also provide customized ideas for our customers, if you or your customers have unique ideas, please feel free to contact us.

FAQ:

Q1: How long is the warranty?

A1: We guarantee a 18-month after-sale service. Any problem when using, call or mail us, we will advise on technically sound methods. If needed, we will provide free accessories.

Q2: Can I have my own customized product?
A2: Yes, your are welcome customized requirements for color, logo, design, package, carton mark, etc.

Q3: How can I get sample and how long will it take?
A3: Sample policy is different for different items. Please kindly contact us to get details.

Q4: What's the MOQ?
A4: MOQ is different for different items, please kindly contact us for confirming.

Q5: How do I pay for my purchase order?
A5: T/T, L/C at sight, Western Union, MoneyGram.

Q6: What is your terms of payment?
A6: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance.

Q7: How about your delivery time?
A7: Generally, It will take about 35 days to send goods out. The specific delivery time depends on the items and the quantity of your order.
