Metal Steel Framing Profile Warehouse Automatic Changed CZ Purlin Hole Punch Cold Roll Forming Making Machine For House

Product Description:

1. Feeding: guide shaft + guide wheel
2. Leveling: three up and four down + two leads.
Material: 45#
Processing technology: rough turning + high frequency heat treatment hrc50-55 + cylindrical fine grinding + surface polishing and hard chromium plating
3. Main molding: 18 component type (one of which is waist height molding 87-95 degree arbitrary roll adjustment group), equipped with 13 groups of CZ exchange modules, which can be switched by rotating 180 degrees, and the specification can be changed through the electric button.
4. Pressing bar: straight bar
5. Alignment: Ten roll CZ special two axis alignment + four roll two axis alignment, a total of two alignment units
6. Guiding: equipped with transmission, driven by upper and lower shaft gears

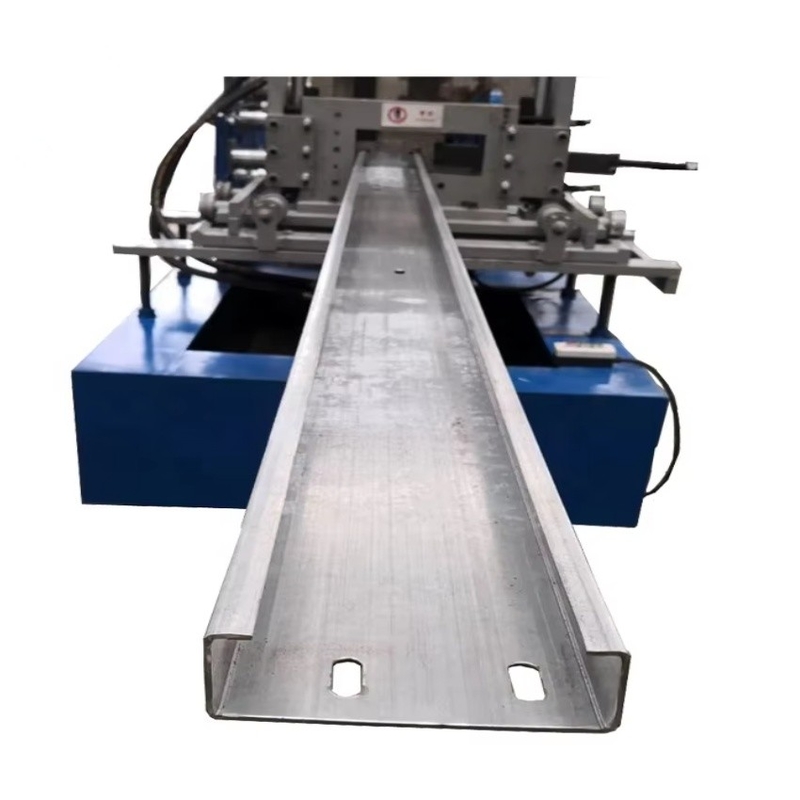

7. Punching: punching single hole + punching double holes after forming, with round holes Φ 14mm and Φ 16mm and oval hole 28 ×16mm and 28 × 14mm optional.
8. Cutting: endless cutting system after forming, cutting does not need to change the knife, and manual type change is required.
Cutter material: Cr12

Technical Parameters:

Applications:

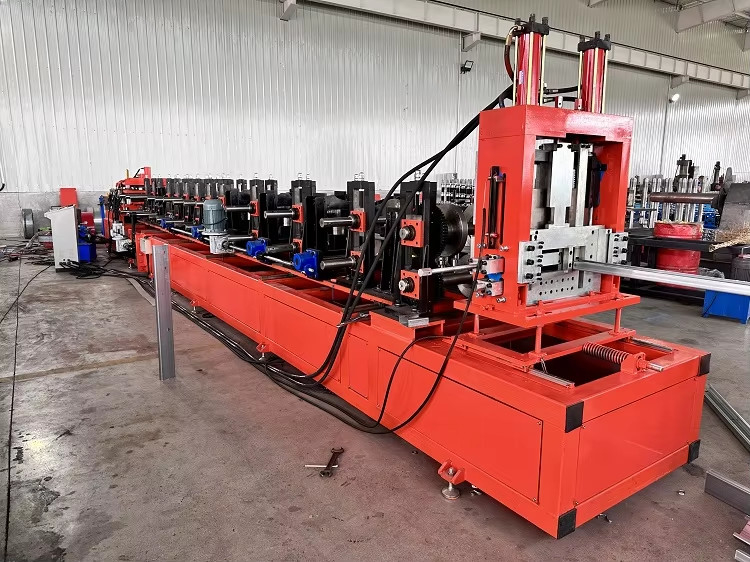

The automatic CZ exchange forming machine is a single roll forming unit that can produce CZ purlin products of various specifications. Automatic CZ section steel forming equipment is mainly composed of passive loading frame, leveling device, automatic punching device, front shear device, forming host, endless post forming shear device, hydraulic station, computer control system, etc.

Packing and Shipping:

Product Packaging:

• The CZ Purlin Roll Forming Machine will be securely packed in a wooden crate.
• The CZ Purlin Roll Forming Machine will be shipped via sea or air freight depending on the customer's preference.
• The shipping cost will be calculated based on the destination and weight of the machine.
• Customers will be provided with a tracking number to monitor the shipment status.
