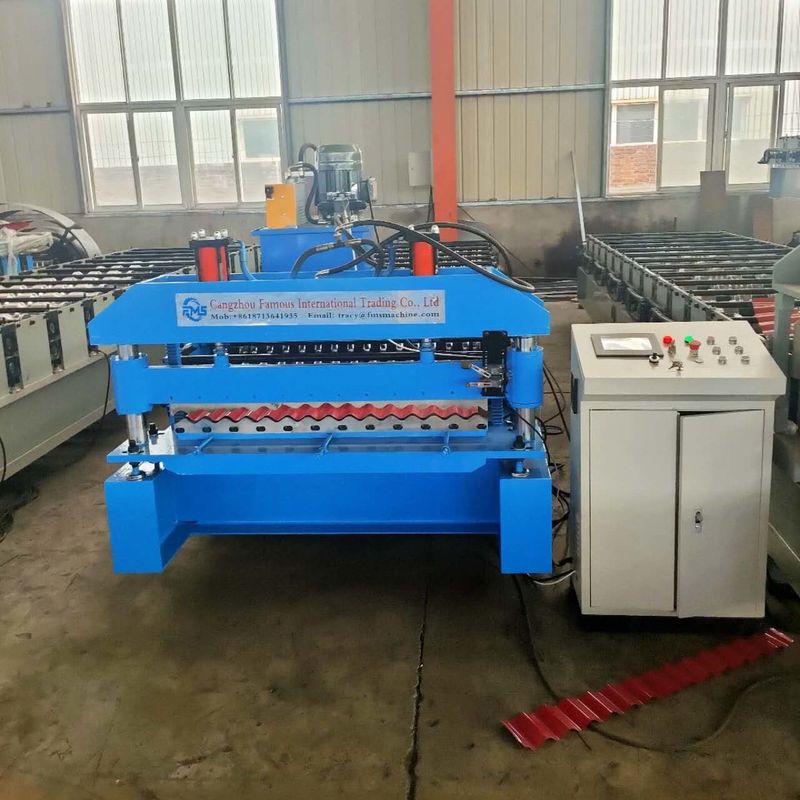

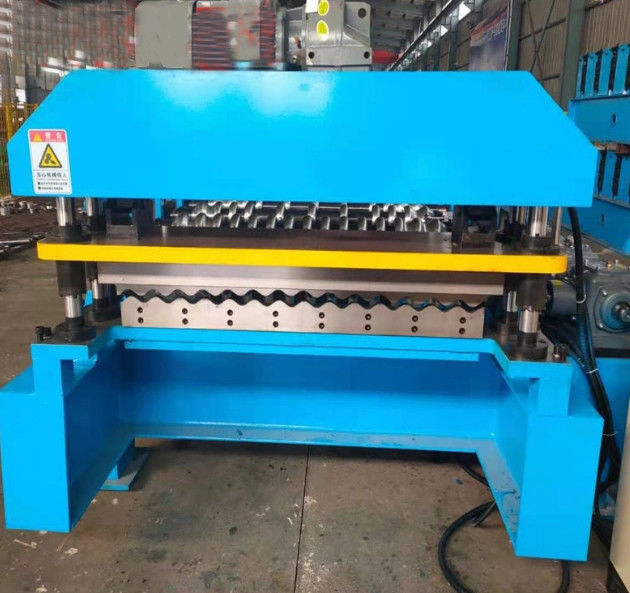

7/8'' Roofing Sheet manufacturing making machine Industrial Commercial Corrugated Panel Roof Roll Forming Machine
Specification:
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3-0.7mm |
| 3 | Working Speed | 10-25 m/min |
| 4 | Roller Station | 9Raws |
| 5 | Dimension (L*W*H) | 6500 mm*1500 mm*1500 mm |
| 6 | Machine Weight | 3000 KG |
| 7 | Electrical Control System | PLC |
| 8 | Drive Motor Power | 4 KW |
| 9 | Hydraulic Station Power | 4 KW |
| 10 | Power Supply | 380V, 50HZ, 3 PHASES(can be customized) |
| 11 | Cutting Accuracy | ±2 mm |
| 12 | Driving Mode | Single Chain 1 inch |
| 13 | Material of Shaft | 70 mm |
| 14 | Material of Roller | 45# Steel Finish Machining, Plated Hard |
Structure introduction:Manual uncoiler - Feeding - Roll formng - cutting
Guarantee:
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Q1. What is the brand name of this product?
A1. The brand name of this product is FMS.
Q2. What is the model number of this product?
A2. The model number of this product is Floor Deck.
Q3. Where is this product manufactured?
A3. This product is manufactured in China.
Q4. Is this product certified?
A4. Yes, this product is certified with CE.
Q5. What is the minimum order quantity for this product?
A5. The minimum order quantity for this product is 1 set.
Q6. Is the price for this product negotiable?
A6. Yes, the price for this product is negotiable.
Q7. How is this product packaged?
A7. This product is packaged naked with plastic film.
Q8. What is the delivery time for this product?
A8. The delivery time for this product is 45 days.
Q9. What are the payment terms for this product?
A9. The payment terms for this product are TT/LC.
Q10. What is the supply ability for this product?
A10. The supply ability for this product is 20 sets per month.
