Name: Three Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet Making
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: 840/820/850
Price: 12,500.00 USD
Availability: InStock

Trang chủ > các sản phẩm > Máy cán tôn mái >

Three Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet Making

Metal Iron Roofing Sheet Making Machine

Corrugated Roofing Sheet Making Machine

Three Layers Roofing Sheet Making Machine

Nguồn gốc:

TRUNG QUỐC

Hàng hiệu:

FMS

Chứng nhận:

Số mô hình:

840/820/850

Liên hệ với chúng tôi

Yêu cầu báo giá

Chi tiết sản phẩm

Kích thước máy:

Phụ thuộc vào hồ sơ

Trọng lượng máy:

5000kg

tốc độ hình thức:

10-15

Vật liệu lăn:

45#Thép

Bảo hành:

độ dày:

0,3-0,8

Động cơ thủy lực:

5,5kw

Xây dựng các trạm:

Phương pháp cắt:

Cắt thủy lực

Màu sắc:

Phụ thuộc vào khách hàng

Làm nổi bật:

Metal Iron Roofing Sheet Making Machine

Corrugated Roofing Sheet Making Machine

Three Layers Roofing Sheet Making Machine

Điều khoản thanh toán và vận chuyển

Số lượng đặt hàng tối thiểu

Giá bán

10000-15000USD

chi tiết đóng gói

7500*1500*1400

Thời gian giao hàng

45 ngày

Điều khoản thanh toán

L/C, T/T, D/P.

Khả năng cung cấp

1000

Sản phẩm liên quan

Băng hình

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Nhận được giá tốt nhất

Băng hình

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Nhận được giá tốt nhất

Băng hình

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Nhận được giá tốt nhất

Băng hình

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Nhận được giá tốt nhất

Liên hệ với chúng tôi

86-317-2016816

Liên hệ ngay

Mô tả sản phẩm

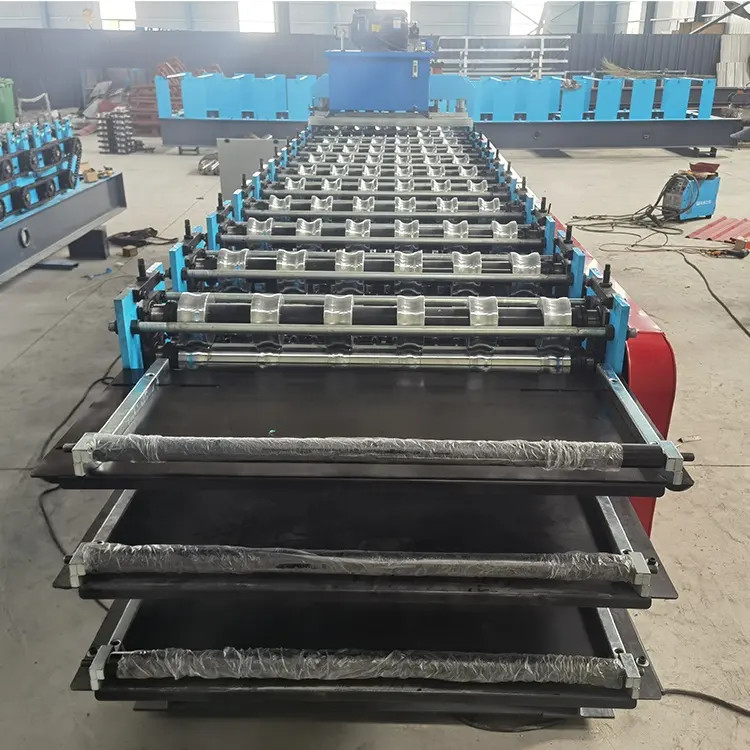

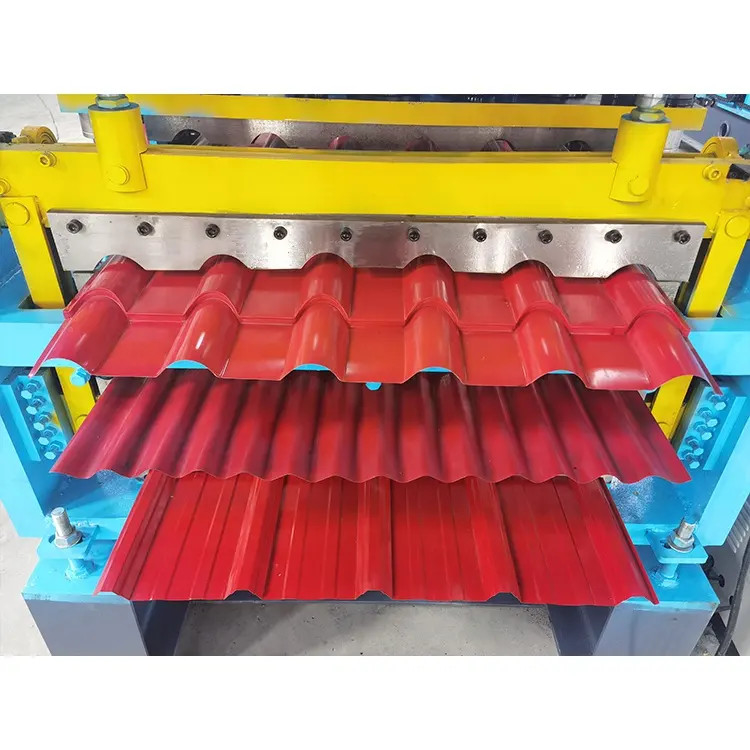

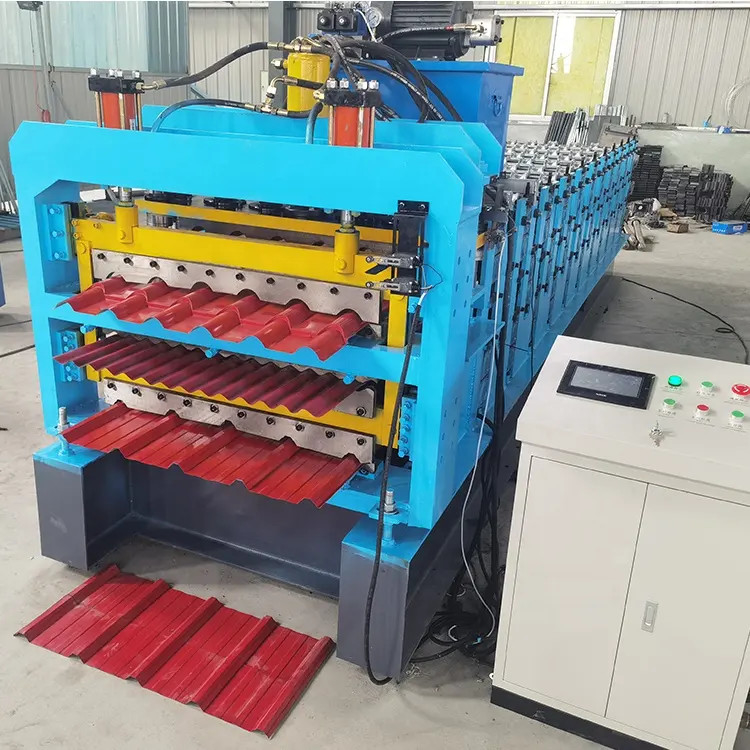

Triple Layer Roof Sheet Roll Forming Machine

Roof Sheet Double Layer Forming Machine,it is our company most popular products in building materials machine. For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine, trapezoidal tile roll forming machine,glazed tile roll forming machine, ridge cap roll forming machine and other type profile panel roll forming machine.

When you choose roof sheet three layers roll forming machine, you had better learn popular shape in local,also raw material is an important considering data, if do not have good supplier in local, we can assist you purchase it in China together. we are professional factory and in this area for many years, any requires please contact us at any time

working principle.
The tile pressing machine belongs to the cold bending roll forming machine, which mainly presses the color steel plate into the required shape, size and shape by rolling. When the machine works, the power group drives the roller shaft, and the roller forming wheel is used to roll the color steel plate with the specified thickness. It is widely used in industrial and civil buildings, such as factory buildings, warehouses, gymnasiums, exhibition halls, cinemas and other rooms and walls.

Product Specification

No	Item	Data
1	Raw material width	1000-1200 mm
2	Sheet effective width	750-1000 mm
3	Raw material	Color steel sheet or galvanized steel sheet
4	Material thickness	0.3-0.8 mm or customized
5	Forming roller material	45# steel plated with chrome
6	Shaft diameter	80mm
7	Forming roll station	13-18steps
8	Main motor power	3 KW 4 KW 5.5 KW(according to type)
9	Hydraulic power	4 KW (according to type)
10	Control system	PLC control

Roll Forming Machine Components:

No.	Name	Qty
1	De-coiler	3Set
2	Roll Forming Machine	1 Set

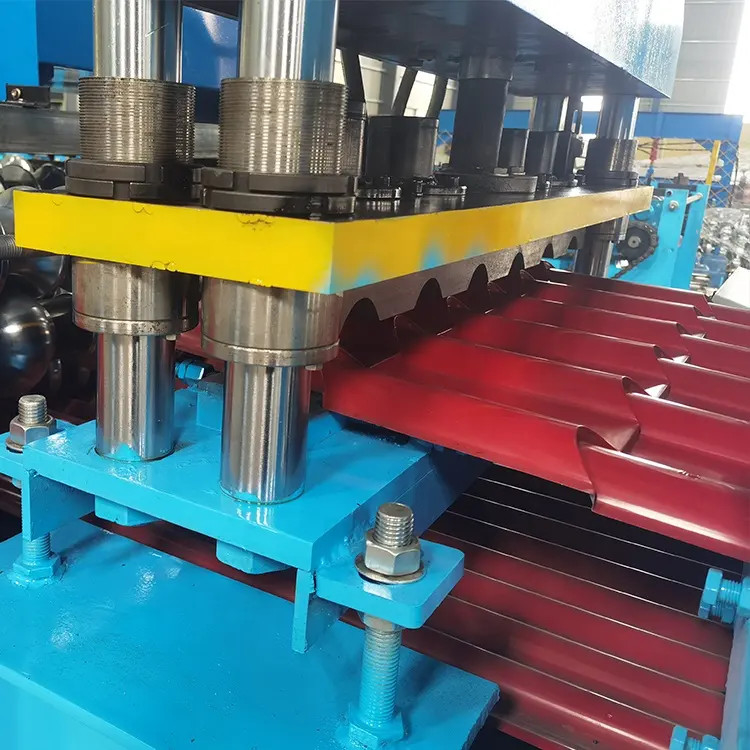

3	Hydraulic Cutting Devic	1 Set
4	PLC Control Box	1 Set
5	Output table	1 Set

Display and Application

Roof sheet three/double layer roll forming machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.
