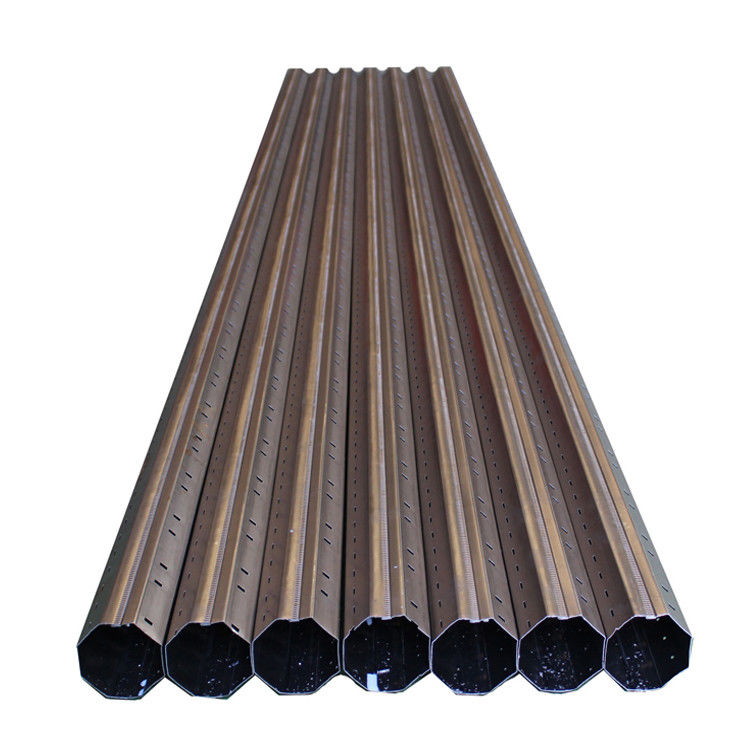

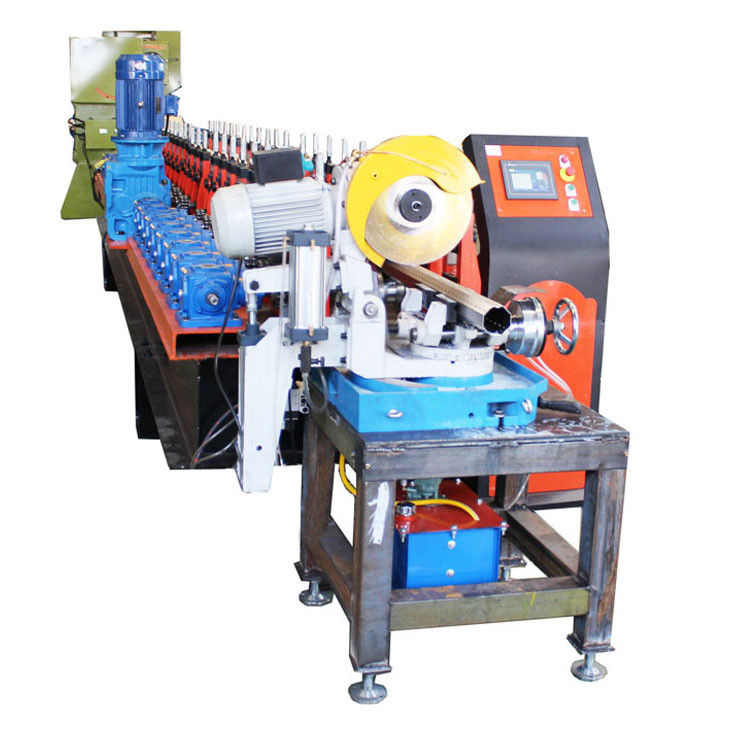

Metal Octagonal Tube Roll Forming Machine Galvanized 60mm 70mm
Cangzhou Famous produce high quality Octagonal Tube Roll Forming Machine Usually it can run with the normal speed to 15m/min, high speed to 25m/min, max speed to 30m/min. PLC with touch screen operation make the machine simple and easy for operation.
Shutter slats work with shutter channels and bottom curtains to form a complete shutter door system. And it widely used in shops door,Garage door, shopping mall door, etc.
We also manufacture various kinds of roll forming machine for producing the following products. Such as Roof Tile, Wall Panel, Floor Deck, C & Z Purlin, Highway Guardrail, Sandwich Panel, Downspout etc
Specification
|
Metal Octagonal Tube Roll Forming Machine Galvanized 60mm 70mm
|
|
|
Metal material thickness
|
0.3 - 0.6mm
|
|
Metal material width
|
235mm or as client require
|
|
Roller Stage
|
20 forming rows
|
|
Roller Material
|
Gcr15 steel with chromium plate
|
|
Diameter of shaft
|
Φ60mm
|
|
Material of cutting blade
|
Cr12Mov, Quenched treatment 58℃-60℃
|
|
Main Structure of the Machine
|
350H Steel
|
|
Side Panel of Machine
|
25mm
|
|
Cutting Type
|
No Stop Sawing Cutting
|
|
Motor power
|
5.5 kw
|
|
Hydraulic power
|
3 kw
|
|
Productivity
|
15-20 meters per minute
|
|
Plc control system
|
Delta or as customer require
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
30% in advance as down payment
70% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
