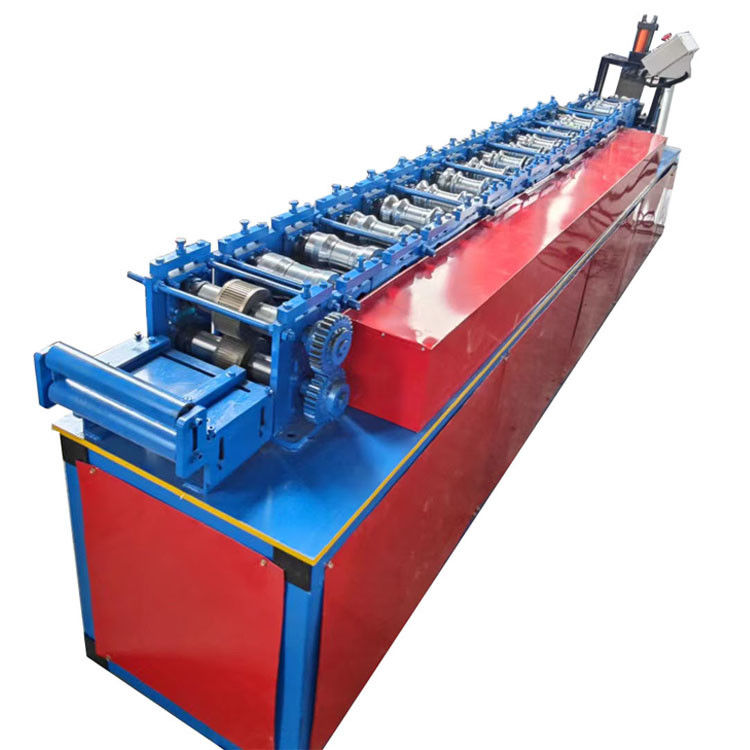

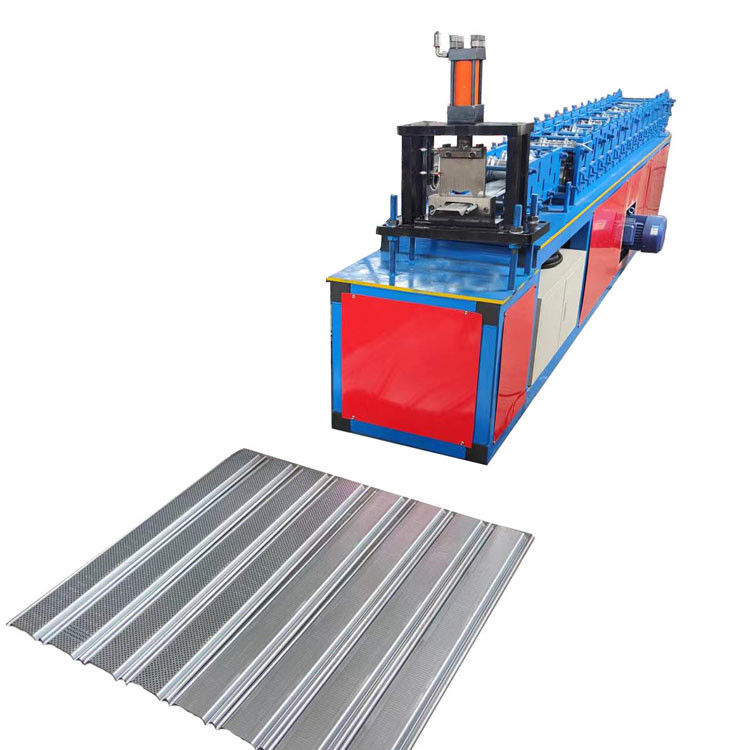

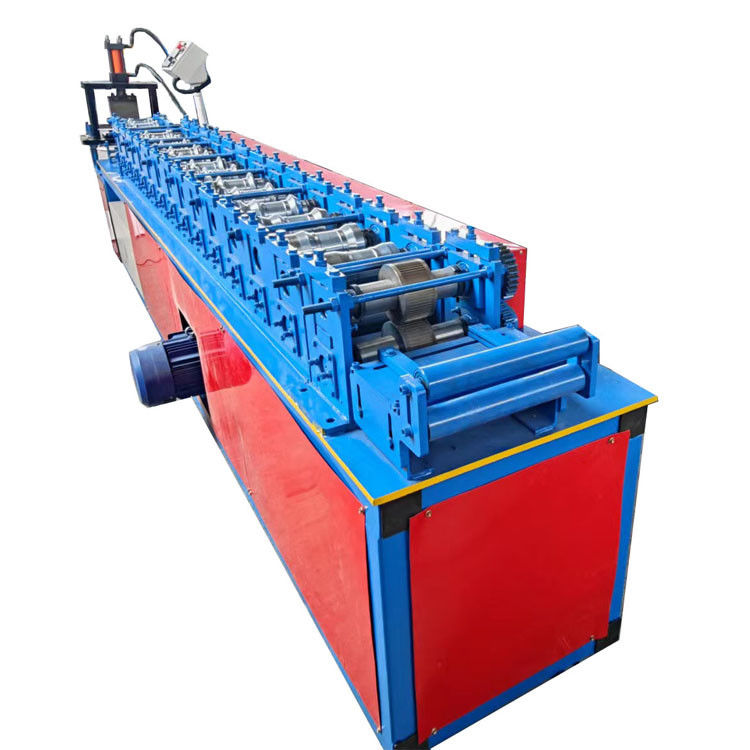

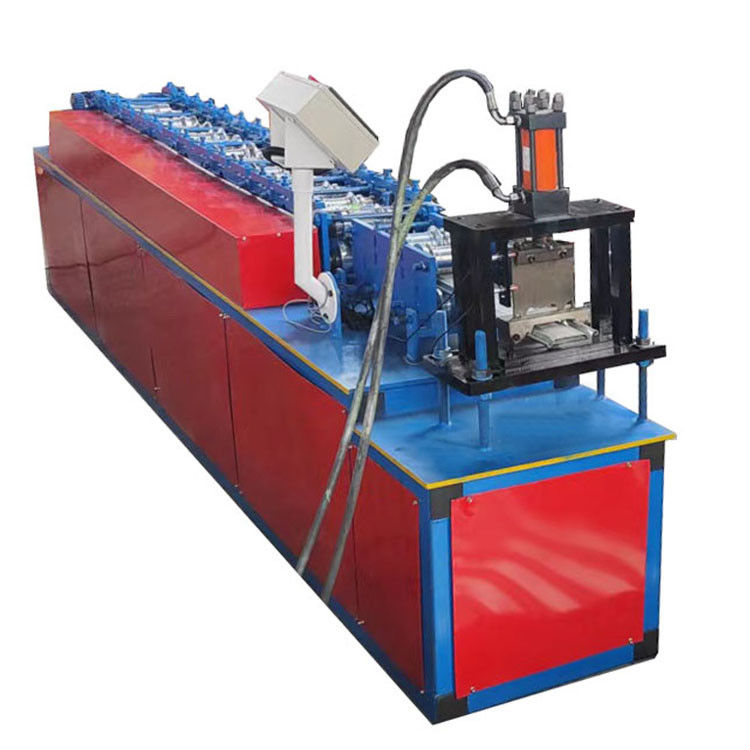

Metal Rolling Shutter Door Slats Roll Forming Machine Speed 20-30m/Min
Shutter door slat rolling machine can roll forming different kinds of shutter door slat.
The machine will be customized according to your shutter door slat profile drawing.

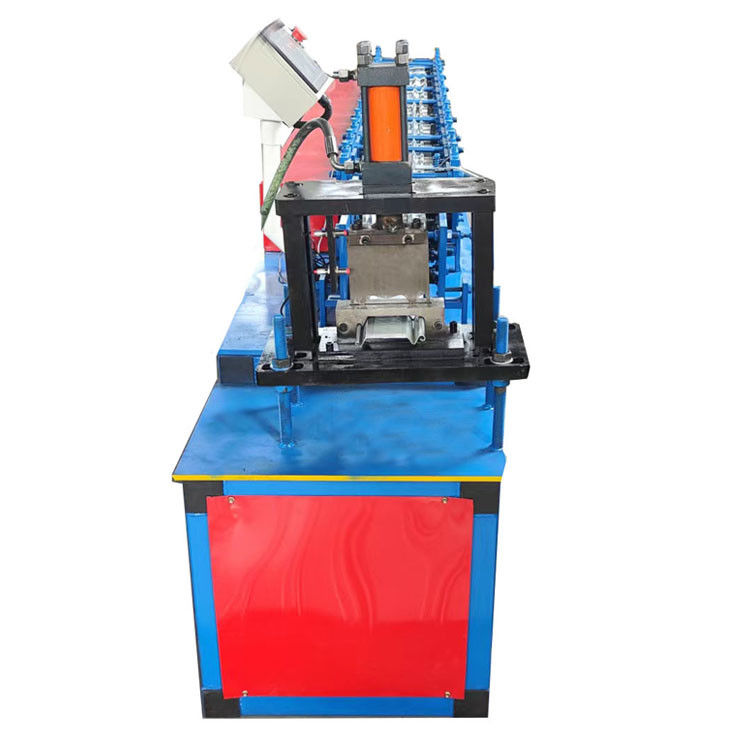

After roll forming, here will have a punching system. the hole design will follow your request.

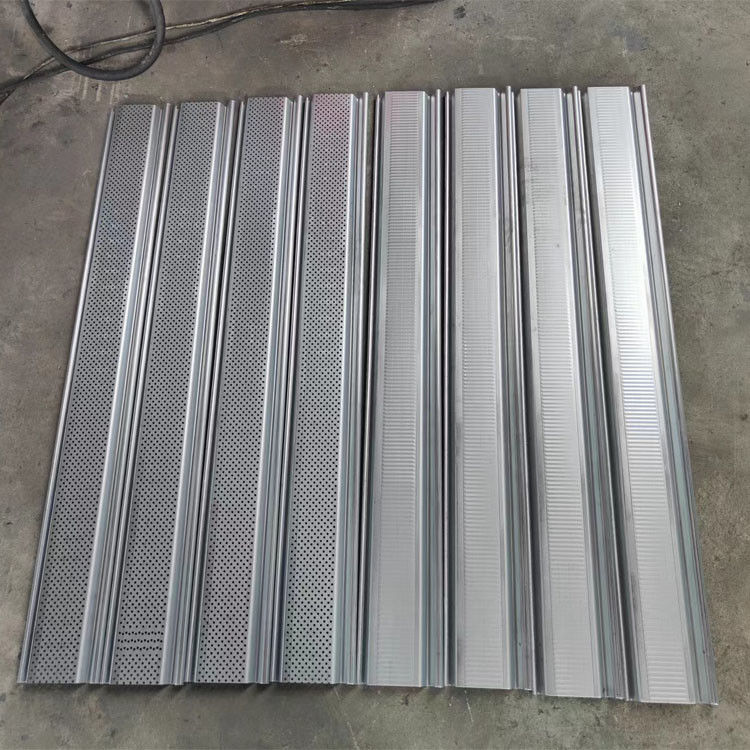

The surface of shutter door slat will very smooth and beautiful without any scrtached on surface.
On the shutter door slat surface, also can embossing different kind pattern or press logo as your request.
Specification
|
Material Thickness
|
0.6-1.0 mm |
| Working Speed |
8-15 m/min
|
| Roller Stations | 12 stations |
| Material of Roller | 45# steel quenching process and chrome coated |
| Material of Main Shaft | 45 steel forged |
| Main Motor Power | 3 KW |
| Electrical Hydraulic Station Power | 3 KW |
| Hydraulic Station Pressure | 12.0 Mpa |
| Material of Cutter | Cr12 Mov HRC 58-62 |
| Driving Mode | Single chain 1 inch |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
