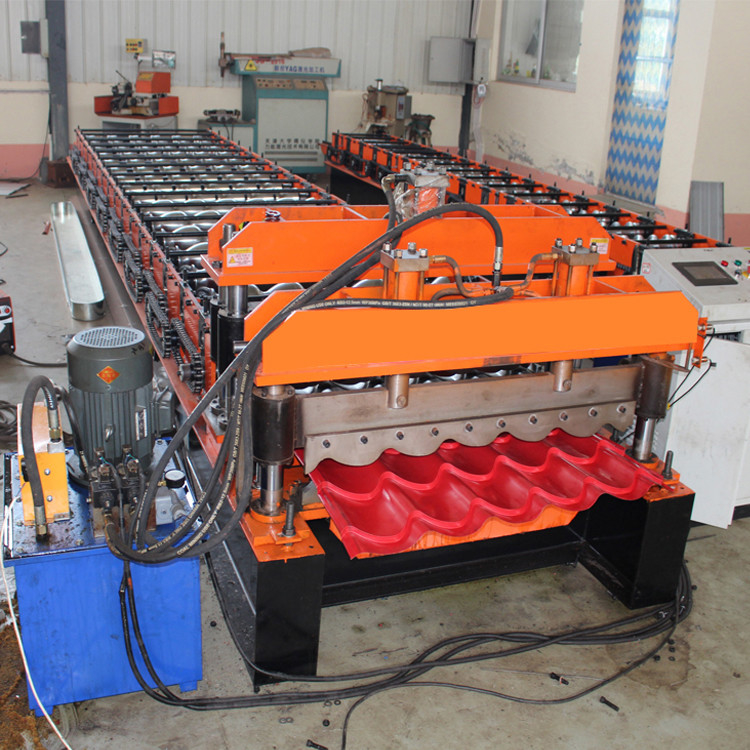

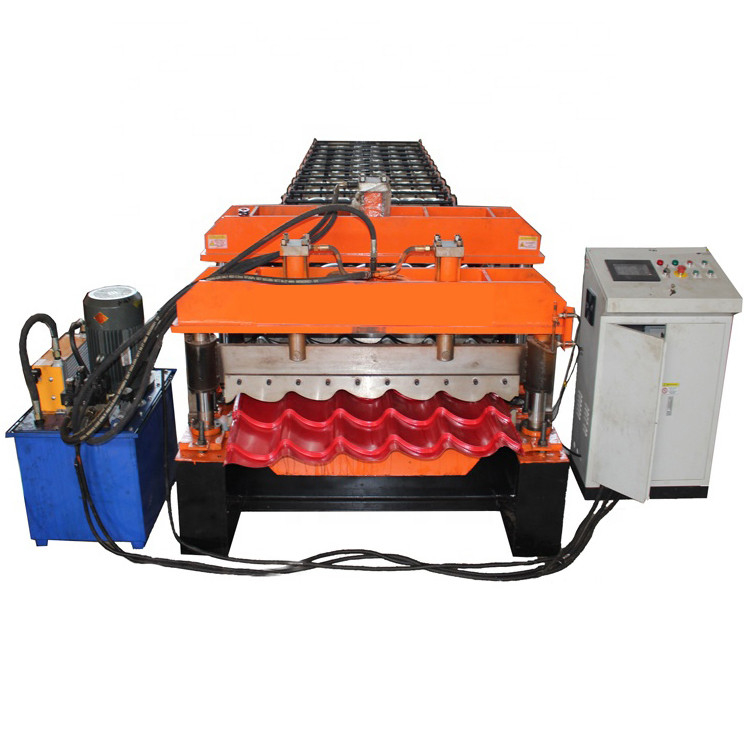

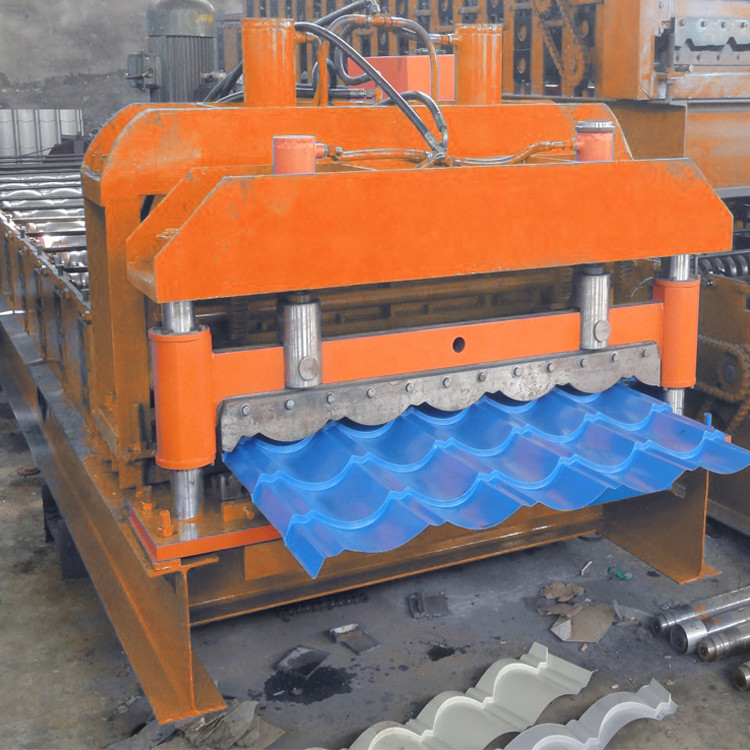

Effctive Width1080mm Long Span Glazed Tile Roof Sheet Cold Roll Forming Machine
Effctive Width1080mm Long Span Glazed Tile Roof Sheet Cold Roll Forming Machine, suitable for PPGI material and other coils , the finished sheet mostly use for roof and wall panel . It has beautiful wave design .Glazed tile roll forming machine is our high technical advantage equipment. We have high standard for glazed tile roll forming machine. No painting break is our first step. The second is accurate length of every pitch. The third is installation with acceptable gaps.
|
Suitable material
|
Strip steel
|
|
Working speed
|
1- 3 m/min
|
|
Main motor power
|
7.5 kw
|
|
Hydraulic station power
|
4 kw
|
|
Thickness of material
|
0.3-0.8 mm
|
|
Roller station
|
16 stations
|
|
Driving mode
|
Chain
|
|
Electric tension
|
380 V /3 phase/ 50 HZ
|
|
Material of roller
|
45# forged steel
|
|
Material of cutting
|
Cr12
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for 1 years after date of purchase except Electrical parts.
Payment terms
35% in advance as down payment
65% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
