Nguồn gốc:
Trung Quốc đại lục
Hàng hiệu:
CZ Channel Manual Adjustable Purlin Roll Forming Machine
Chứng nhận:
ISO CE
Số mô hình:
CZ
Băng hình
Băng hình
Băng hình
Băng hình

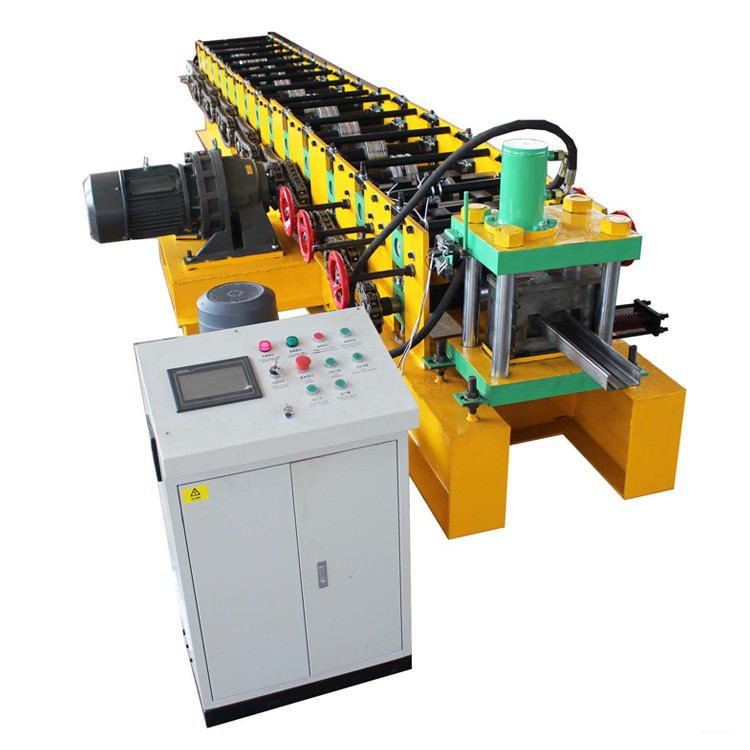

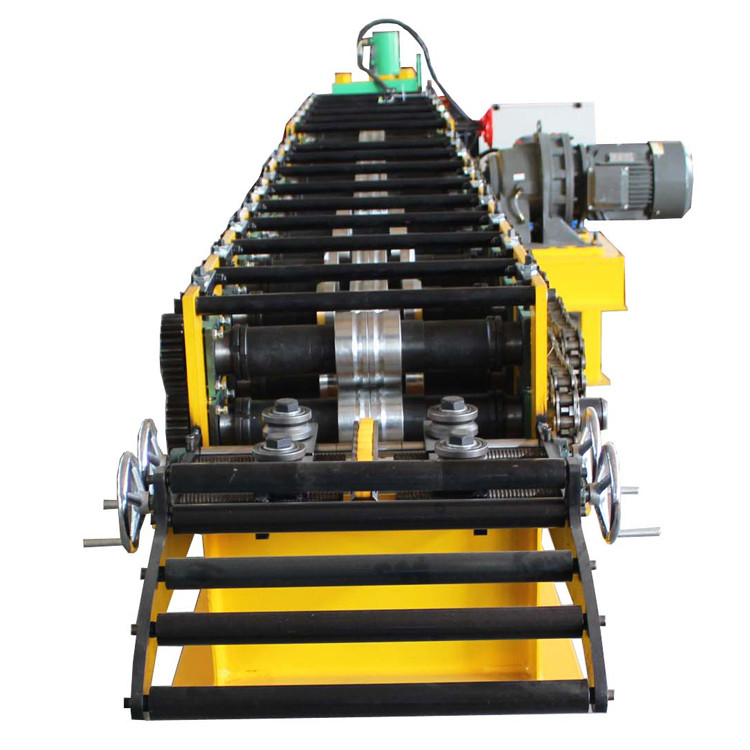

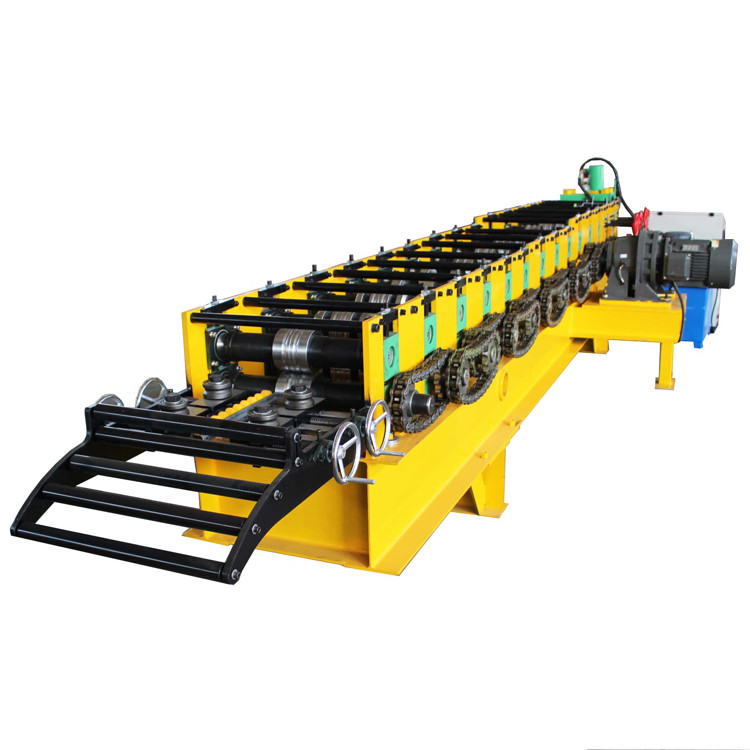

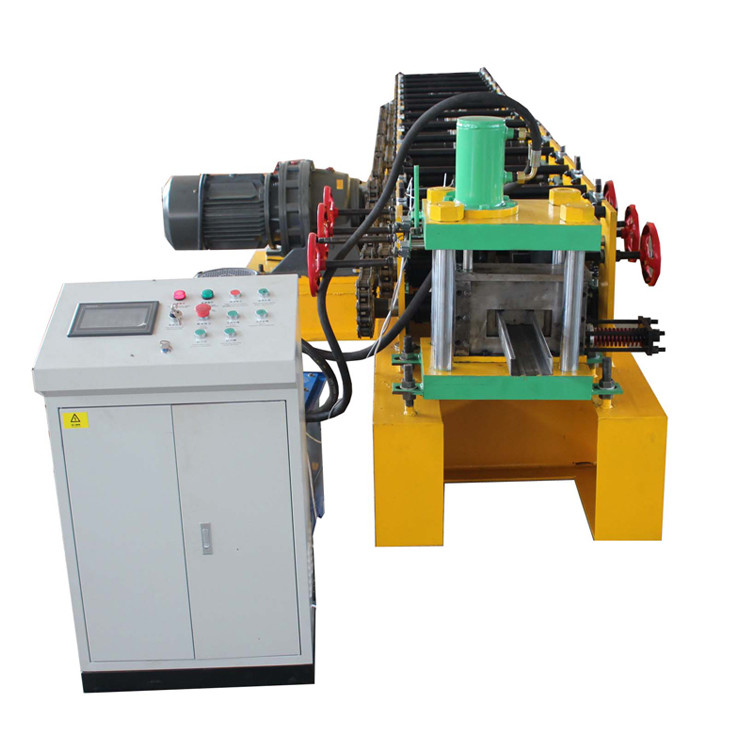

Automatic 2 Mm C Purlin Roll Forming Machine
Specification
| No. | Item | Description |
| 1 | Coil | Galvanized |
| 2 | Material Thickness | 1 mm- 3.5 mm |
| 3 | Working Speed | 15- 20 m/min ( not including the cutting time) |
| 4 | Roller Station | 12-16 Raws |
| 5 |
Dimension (L*W*H) |
7000 mm*1000 mm*1300 mm |
| 6 | Machine Weight | 4000 KG |
| 7 |
Electrical Control System |
Panasonic PLC |
| 8 |
Drive Motor Power |
15KW |
| 9 |
Hydraulic Station Power |
15 KW |
| 10 |
Power Supply |
360V/60HZ/3PH |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 2 inch |
| 13 |
Material of Shaft |
80 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
The C -type steel is widely used in the barrier and wall beams of steel structure buildings, and can also be combined into lightweight roofs, brackets and other building components. In addition, pillars, beams and arms in mechanical light industry can be used.
Advantage
The finished C -type steel finished product of the C -type steel machine equipment has good straightness and straight pressure, fully automatic fixed -length cutting, automatic punching, high degree of automation, fast installation and convenient installation. Structures, such as factory buildings, warehouses, garages, airplanes, exhibition halls, movie theaters, stadiums, marketing roof load loads and wall support. Cold -curved steel is the main material for making light steel structures. It is made of steel plate or steel band cold bending.
