Nguồn gốc:
TRUNG QUỐC
Hàng hiệu:
FMS
Chứng nhận:
CE
Số mô hình:
Khay cáp
Băng hình
Băng hình
Băng hình
Băng hình

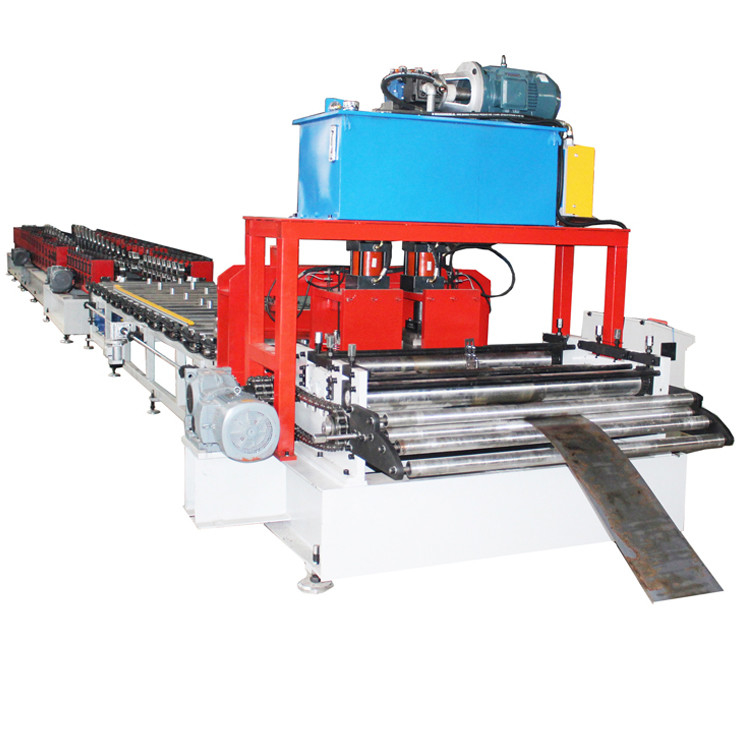

Size Changeable PLC Control CT100-600 Cable Tray Roll Forming Machine
Cable trays are quite commonly used these days to hold courses, wires and cables safely inside a sky scrapper or a high rise. It is a construction material that has some major benefits. Cable trays are used for supporting insulated electrical cables and wires that are meant for communication and distribution.
We are the professional ladder type cable tray roll forming machine, our line could be run for cable tray and cover cable tray production, cable ladder, Slotted Cable Tray, the cable tray production line can be custom prepared according to client requirements.
specifications
| Material Spec | colored steel sheet, galvanized steel sheet |
| main motor power | 7.5 kw |
| forming speed | 10-15m/min |
| Diameter of roller | 70 millimeter |
| Thickness of Coil Sheet |
0.3-0.8 millimeter |
| the width of the colored sheet | as per requested |
| the effective of steel sheet | as per requested. |
| Hydraulic station pressure | 3 kw |
| Hydraulic pressure | 10 - 12Mpa |
| Total Weight | about 5500 kg |
| Voltage | 380 volt/3PH as per requested |
| Roll stand | 22 Roller station |
| PLC | overseas Brand |
| Dimension | 11.4m*1.3m*1.2m |
| Roller material | #45 steel |
| Frequency converter | containing |
| Computer operating screen | touch screen |
| Material of cutter | Cr12 |
Application

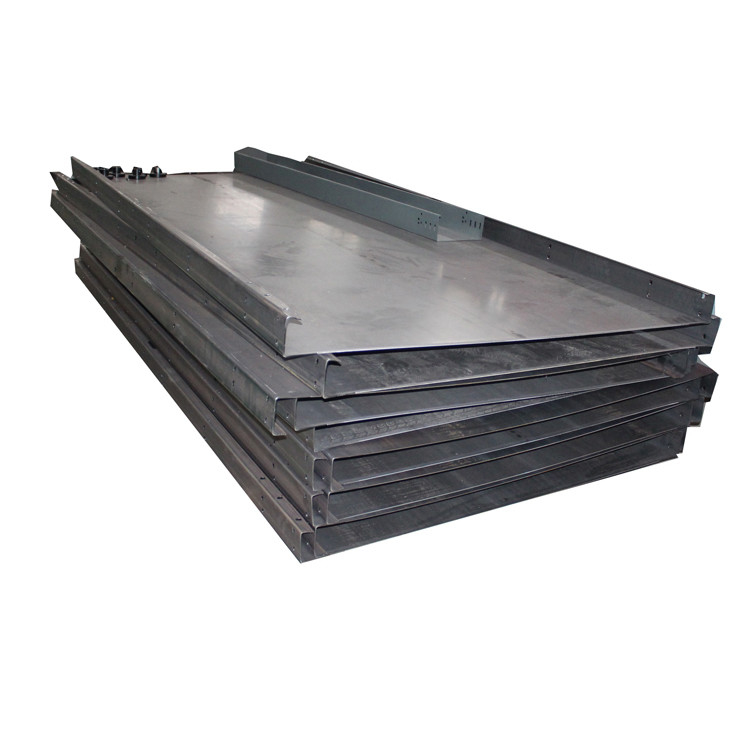

Cable tray is used to support and protect when wire electricity, electric power, communication control and instrumentation cable.
FMS compose this machinery as a cassette replacement type or automatic width control type in accordance with product.
And we supply equipment that is suitably designed for the use of product which can be formed after perforating a partition and other panels.
Re-sale Service :
1. Send you invitation letter, if you wanna visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by whatsapp or Telephone.
