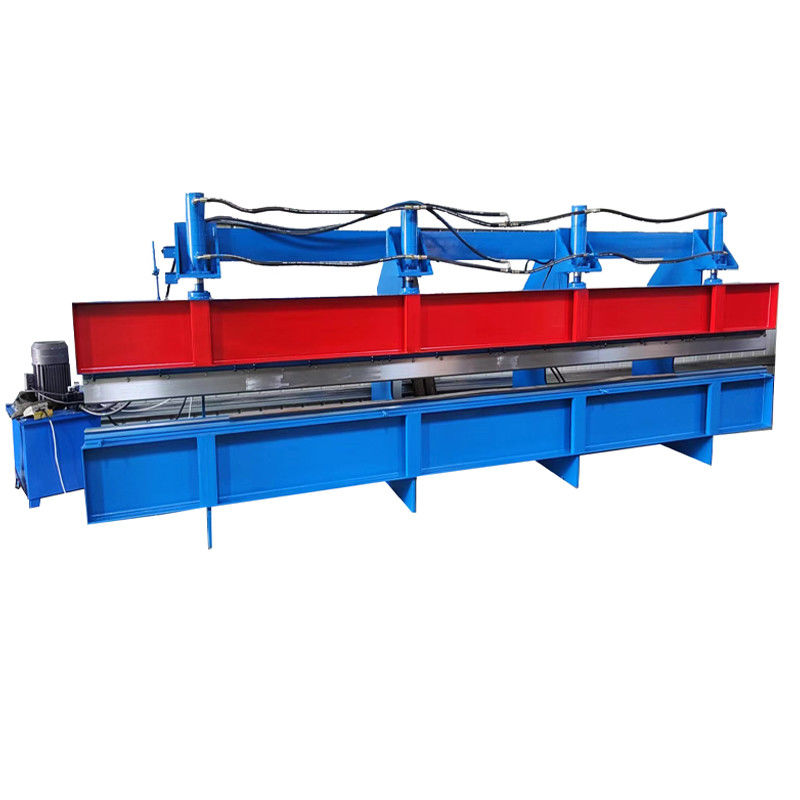

Hydraulic bending machine is generally used in the industry for the bending of plates, and the strength is controlled according to the system parameters to achieve different bending effects. The structure includes a support, a workbench, and a clamping plate. The workbench is placed on the support. The workbench is composed of a base and a pressing plate. The base is connected to the clamping plate through a hinge. The base is composed of a housing, a coil, and a cover plate. The coil is placed In the recess of the seat shell, the top of the recess is covered with a cover plate.
Equipment Detailed Parameters:
| No. | Main parameter | |
| 1 | Suitable to process | color steel plate, steel plate, galvanized sheet and so an. |
| 2 | Raw material thickness | 0.3 ~ 2mm |
| 3 | Bending Angle | 30° 45° 60° 90° 130° |
| 4 | Motor power | 3KW |
| 5 | length | as per requested |
| 6 | Material | prepaitned steel |
| 7 | Warranty of core components | 1 Year |
| 8 | Voltage | 380V 50Hz 3phasesas per requested |
| 9 | Core Components | Motor, PLC |
| 10 | bending type | hydraulic |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for 12 months after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% TT in advance
60% TT before the shipment and after inspection
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 20 days after the down payment is received.
