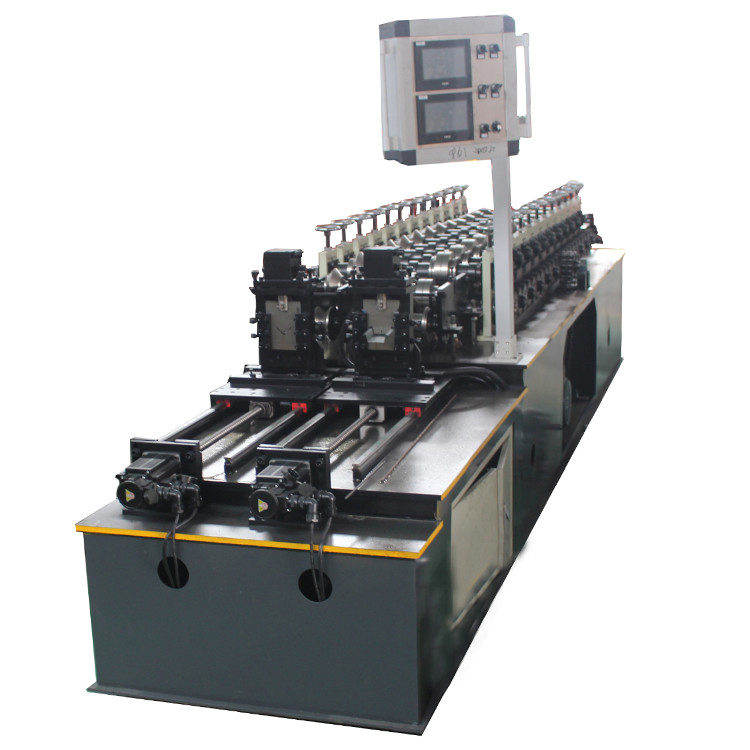

Double Head Light Gauge Steel Roll Forming Machine Stud And Track Roll Forming Machine
Cangzhou FMS has a long history in producing rolling machines. Decades ago, their technical experience was consolidated through a flexible hydraulic punch system called 'soft punching'. Since then, Cangzhou FMS has produced several systems to meet the constantly changing industry needs. We have a team of professionals with many years of experience and a good track record, which can bring you some advanced and innovative energy, and this is also the case.
Specification
| No. | Item | Description |
| 1 | Coil | PL,GL,PPGL,PPGI |
| 2 | Raw Material Thickness | 0.3-0.8mm |
| 3 | Working Speed | 10-25m/min |
| 4 | Roller Station | 13 /16Raws |
| 6 | Machine Weight | 3500 KG |
| 7 |
Electrical Control System |
PLC (can be customized) |
| 8 |
Drive Motor Power |
7.5 KW |
| 9 |
Hydraulic Station Power |
5 KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
60 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
