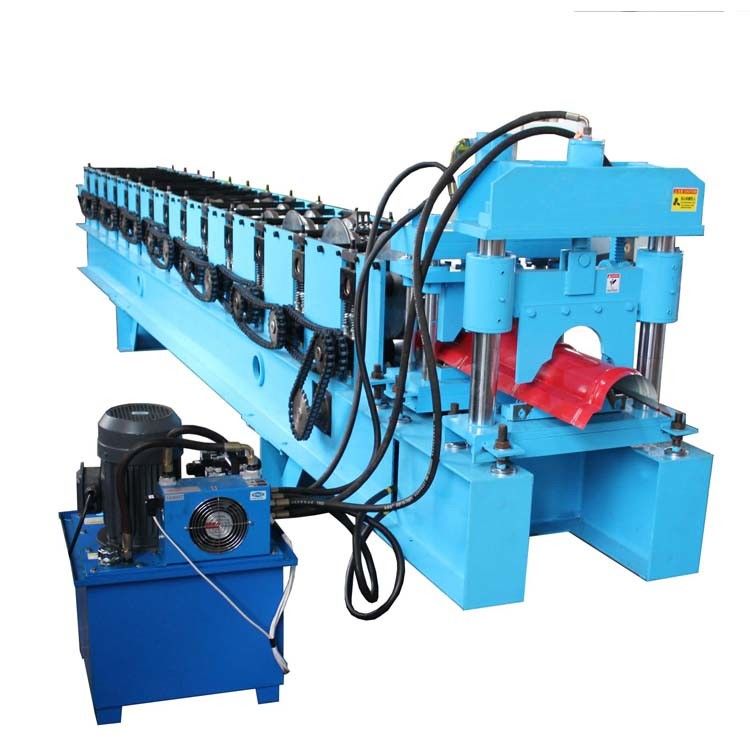

Ridge Cap Color Steel Roll Forming Metal Roof Ridge Cap Roll Forming Machine
Ridge cap roll forming machine make the ridge cap is a new building material with rich colors and classical elegance, adding a finishing touch to your building. It has the characteristics of light weight, high strength, good waterproof, convenient and fast installation, and can be widely used in villa roofs, urban flat slope roofs and tourist attractions. Compared with other materials, the combined construction of lightweight materials and various auxiliary materials is not only short in construction period, but also simple in construction method, and can maintain the beautiful roof without editing and repairing. The arc color steel roof ridge tile is more complete than the manual roof ridge tile. It is a better partner for color steel glazed tiles or color steel plates
Specification
| Specification | 6500x850x1250mm |
|
Material Thickness
|
0.3-0.8 mm
|
|
Working Speed
|
8-15 m/min
|
|
Frame
|
welded with 350H section steel
|
|

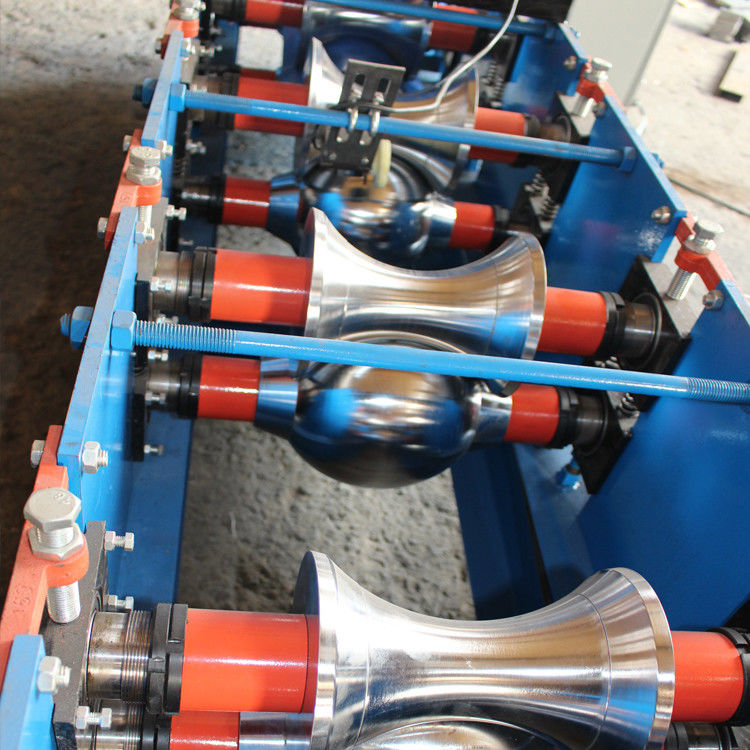

Material of Roller
|
45# steel quenching process and chrome coated
|
|
Material of Main Shaft
|
45 steel forged
|
|
Main Motor Power
|
4 KW
|
|
Electrical Hydraulic Station Power
|
KW
|
|
Hydraulic Station Pressure
|
12.0 Mpa
|
|
Material of Cutter
|
Cr12 Mov HRC 58-62
|
|
Control system
|
PCL
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
