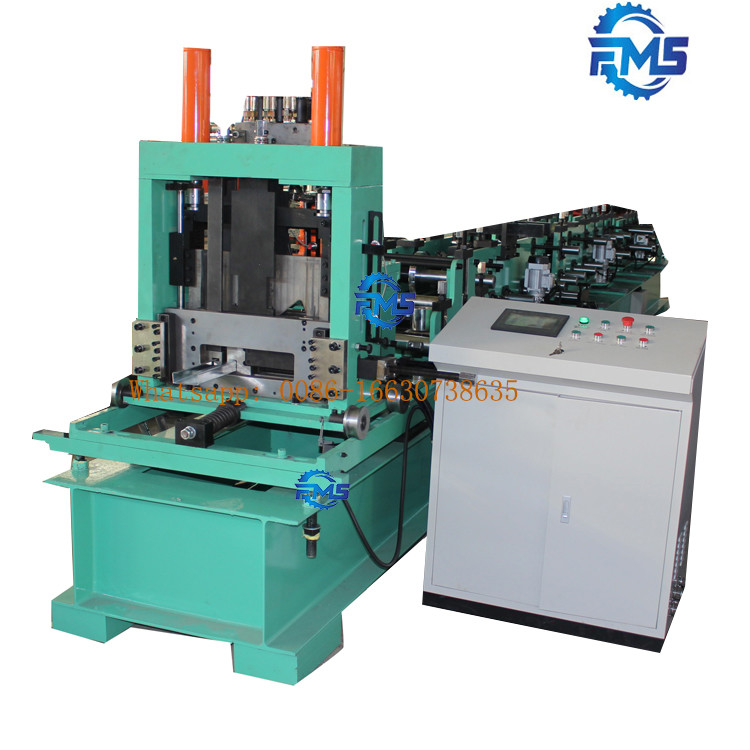

Fly Saw Cutting Automatic CZ Purlin Forming Machine PLC

Fly Saw Cutting Automatic CZ Purlin Forming Machine PLC

PLC C Purlin Roll Forming Machine

Automatic CZ Purlin Forming Machine

PLC CZ Purlin Forming Machine

Nguồn gốc:

TRUNG QUỐC

Hàng hiệu:

FMS

Chứng nhận:

CE,ISO

Số mô hình:

C80-300

Liên hệ với chúng tôi
Yêu cầu báo giá
Chi tiết sản phẩm
Tên sản phẩm:
Máy tạo hình cuộn xà gồ CZ hoàn toàn tự động để điều chỉnh kích thước 80-300mm
Thành phần cốt lõi:
PLC (thương hiệu nhập khẩu)
Áp lực công việc:
16 MPa
Điện áp:
380V hoặc 415V
Kích thước (L * W * H):
10,5m*1,35m*1,75m
Tự động hóa:
Tự động
Cắt vật liệu lưỡi:
Cr 12 Mov
Màu sắc:
Màu xanh da trời
Làm nổi bật:

PLC C Purlin Roll Forming Machine

,

Automatic CZ Purlin Forming Machine

,

PLC CZ Purlin Forming Machine

Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu
1 bộ
Giá bán
negotiable
chi tiết đóng gói
Máy chính có màu khỏa thân, hộp điều khiển máy tính được đóng gói bằng nhựa.
Thời gian giao hàng
35 ngày
Điều khoản thanh toán
T/T, Công Đoàn Phương Tây, L/C, D/P
Khả năng cung cấp
20 bộ mỗi tháng
Mô tả sản phẩm

Fly Saw Cutting Automatic C Purlin Roll Forming Machine C Z Purlin Forming Machine

Fully Automatic CZ Purlin Roll Forming Machine For Size Adjustment 80-300mm



    Fully Automatic CZ Purlin Roll Forming Machine For Size Adjustment 80-300mm.Standard Shape Profile ( Also can be customized)
C Purlin: A=80-300mm ; B=40-80mm ; C=10-20mm ; T=1.5-3mm
Z Purlin: A=120-300mm ; B=40-80mm ; C=10-20mm ; T=1.5-3mm
   Other detailes of interchange cz cold rolled purlins machine
Suitable for material with thickness 1-3mm,Shafts manufactured from 45#,Main shaft diameter=φ80mm,precision machined,
Motor driving,Gear chain transmission, 16 rollers to form and 7 rollers for straightening and levelling,Main motor=22KW , Frequency speed control. Forming speed approx.18m/minPLC Control System Omron (Touch screen: WUXI xinjie),Inverter brand:Taiwan DELTA,Encoder brand:Japan OMRON),It takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters,Combined with: PLC, Inverter, TouchScreen, Encoder, etc.


specifications



Raw material
Steel Coil gi ppgi
Control system
PLC(imported Brand)
Punching
Roller Station
Roller Station
18 Stations Roll Forming Machine
Weight
11000 kg
Power
22KW
Production Capacity
20m/min
Warranty of core components
1.5 years


Guarantee


   1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

   2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



   40% in advance as down payment

   60% is paid before the shipment is processed



Delivery



   FOB: Tianjin Xingang Port

  The Delivery Time: 30 days after the down payment is received.



 Fly Saw Cutting Automatic CZ Purlin Forming Machine PLC 0
 FAQ

A:- What service can you provide before order?
- About the pre-sale service. We provide you answers of all your questions on our machines, such as technical parameter, price,
payment terms, etc. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our
warmest welcome.
B:- Can you finish the machine during the delivery time?
- We will finish the machine in time according to determined lead time.
C:- Can you provide some spare parts?
- Yes, of course. The quick-wear parts are sent to you together with the machine.
D:- What is the after- sale service?
- About the after-sales service. We can send technician to your country to fix the machine. The buyer should bear all the cost
including: visa, Round trip ticket and suitable accommodation, also buyer should pay the salary 100USD/day.
The warranty is one year. and we will provide the technical support for the whole life. It is free to maintain the machine the
first year after buying, including changing the main components. The first year hence, you will pay for our technician $100 per
day to maintain the machine. And the components are not free, if you need to get it from us.
E:- Any other service?
- We can manufacture, design, installation and debug various roll forming machines including standard and customized machines.
It is free to assemble machine and train your works, but the buyer should pay for the round-trip airplane ticket, and arrange
accommodation during that time.
F:- Can you accept OEM?
- We can accept OEM.
G:- Any certification:
- Yes, we have CE TUV BV certification.
