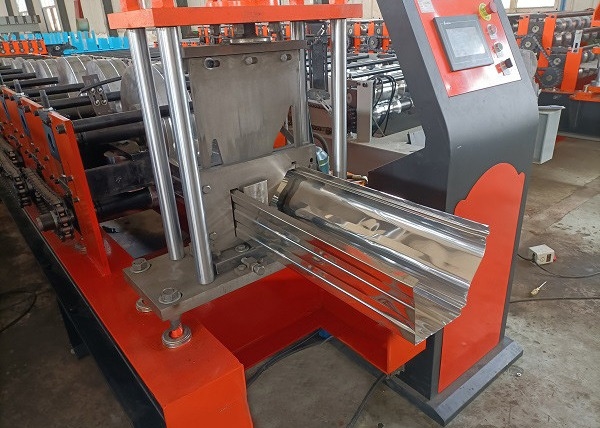

High Speed Automatic Rain Gutter Downspout Roll Forming Machine PCL Control
Rain Gutter refers to the lower part of the two spans between the roof of the building. The roof drainage is divided into tissue drainage. Generally, the rainwater is collected in the Rain Gutter and then discharged by the rainwater pipe. The gap of the rainwater is called Rain Gutter. Rain Gutter is mostly made of steel plate.
Specification
| Galvanized Gutter Making Machine Downspout Metal Gutter Roll Forming Machine | |
| Processing material | colored steel coil |
| Material thickness | 0.4-0.8mm |
| Frame design | according to design drawing |
| Main motor power | 4 kw |
| Material of forming roller | 45# steel, CNC lathes, Hard Chrome Coated |
| Shafts Diameter | Φ70mm |
| Max. Line speed of roll former | 15m/min |
| Hydraulic group power | 3 KW |
| Material of cutting blade | Cr12, hear treatment |
| Electric Standard | 380V /50Hz/3PH or as per customer's requirements |
| Main frame | 300H steel |
Installation
During the installation and adjustment of the equipment, our engineers should provide the buyer's personal request to provide training and maintenance for the equipment. Including basic buildings, electrical engineering, hydraulic oil, safe operation and non-standard safety items, testing materials, etc.
Guarantee
The warranty will be maintained during the delivery period and within the delivery period. Due to the quality of the equipment during the warranty period, we will provide parts free of charge, which is the correct operating condition. Natural disasters or factors that cannot be imposed by humans are excluded.
Payment terms
40% in advance
60% is paid before shipping and pass the inspection
