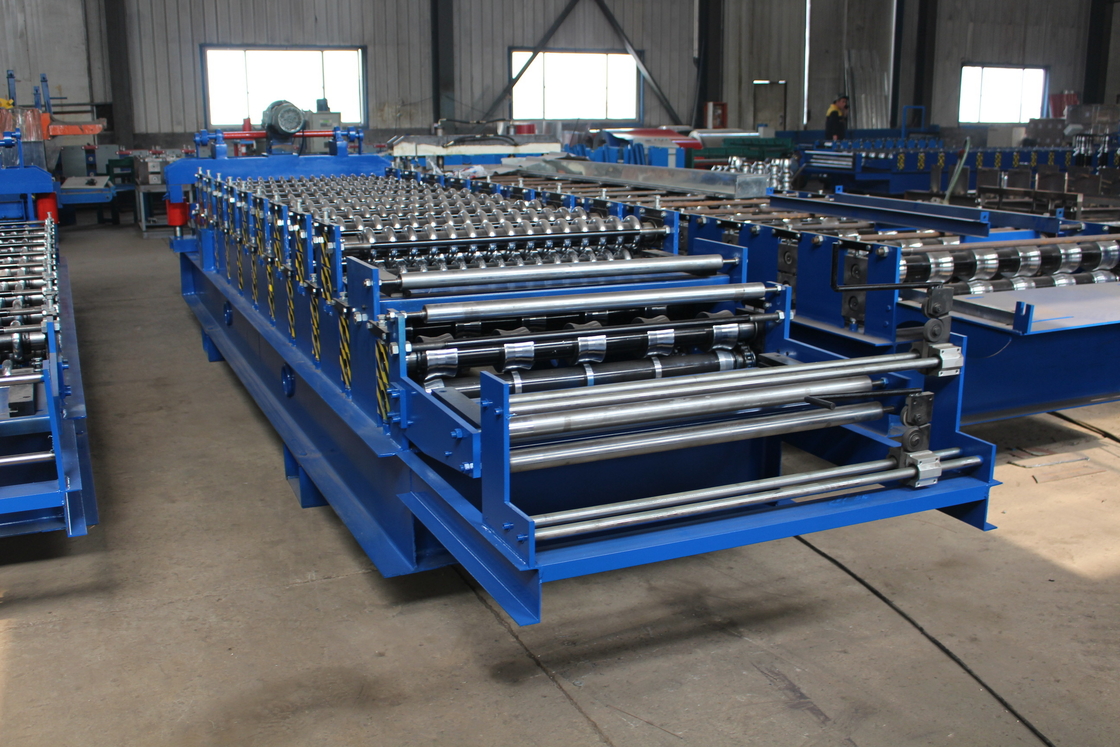

Trapezoid And Corrugated Double Layer Roll Forming Machine
Steel Tile Roofing Sheet Double Layer Roll Forming Machine 840 900 High Quality
Automatic Color Steel Roll Forming Machine IBR Profile Roof Sheet Tile Making Machinery Price is a machine composed of unwinding, forming, and post-forming cutting. Its color plate has a flat and beautiful appearance, uniform paint patterns, high strength, and durability. It is widely used in industrial civil buildings, such as factory buildings, warehouses, stadiums, exhibition pavilions, theaters and other rooms and walls.
|
Dimensions
|
7.5m*1.6m*1.4m
|
|
hydraulic transmission
|
15 m/min
|
|
Main frame material
|
300H Steel
|
|
Thickness of plate in equipment
|
14mm
|
|
Roll forming row number
|
high layer:9 row (900), under layer: 11 row (840)
|
|
Forming shaft material
|
45# steel quenching treatment
|
|
Molding shaft dimension
|
Diameter of 70
|
|
Roll shape material
|
45# steel with hard chrome plating
|
|
Number of rollers
|
11rollers
|
|
Power
|
6kw
|
|
Main motor power
|
4kw
|
|
Forming speed
|
8-10 m/min
|
|
Material thickness
|
0.3-0.8mm
|
Installation
During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.
Guarantee
The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).
Payment terms
40% in advance
60% is paid before shipping
