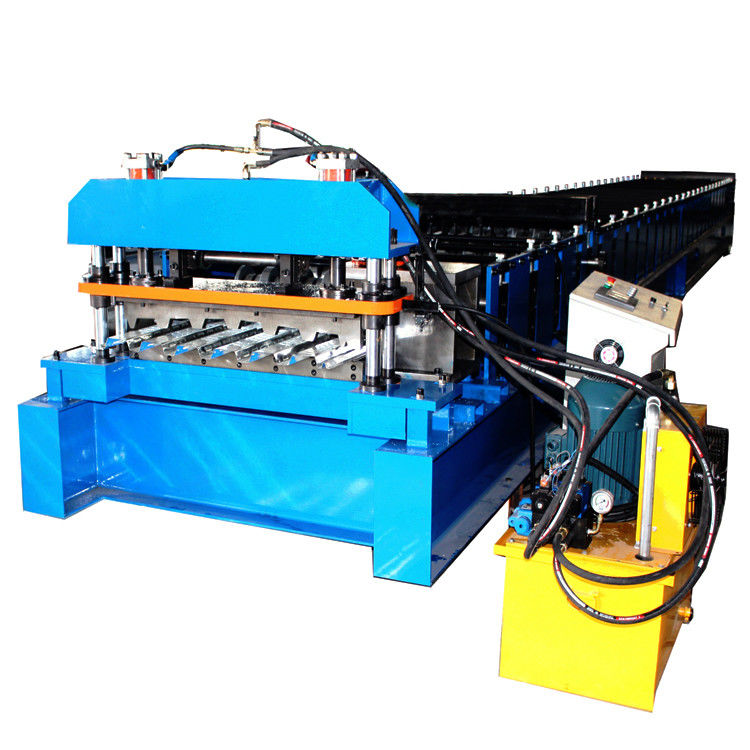

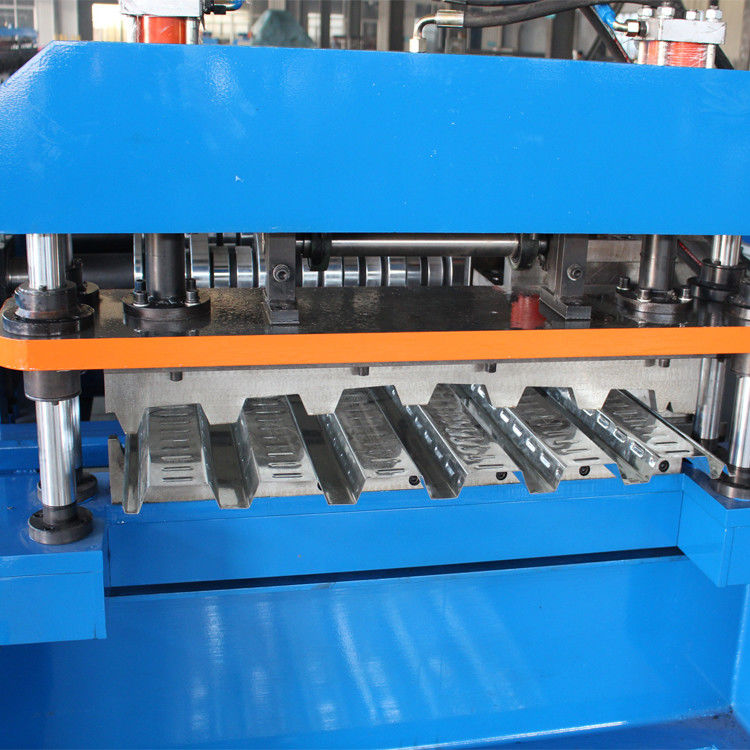

High Quality Steel Plate Deck Floor Tile Making Machine For European Market
1.High Quality Steel Plate Deck Floor Tile Making Machine For European Market
---- We adopted a no stop cutting system to enhance the machine running speed.
---- Hydraulc drive motor provide strength power to make the machine running fast.
---- High precision machining parts ensure machine's high speed.
---- Good service let you no any trouble.
2. High Quality Steel Plate Deck Floor Tile Making Machine For European Market parameters:
Specification
| Suitable Material | Material | GI, PPGI, PPGL |
| Width | 1200 mm | |
| Thickness | 0.8-1.2 mm | |
| Material of rollers | High grade 45# forged steel, surface hard chromium plating | |
| Rows of rollers | 24 stations | |
| Material of shafts | High grade 45# forged steel | |
| Diameter of shafts | 90mm | |
| Material of cutting blade | Cr12 Heat Treatment | |
| Speed | 15-20 m/min | |
| Side plate thickness | 20 mm | |
| Chain size | 2 inch | |
| Total power | 22 kw | |
| Voltage | 380V 50HZ 3Phase | |
| Appearance size (About) | 12000mm*1800mm*1700mm | |
| Weight(About) | 13 tons | |
| Length measurement | Encoder | |
| Control mode | Delta PLC | |
| Operating mode | Button +Delta Touch screen | |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
