Nguồn gốc:
TRUNG QUỐC
Hàng hiệu:
FMS
Chứng nhận:
CE,ISO
Số mô hình:
Lớp kép
Băng hình
Băng hình
Băng hình

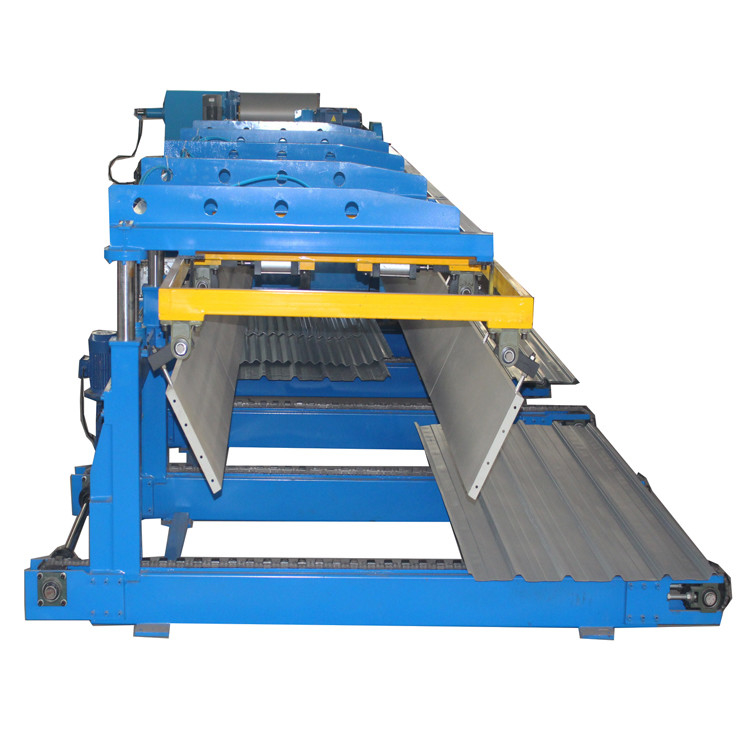

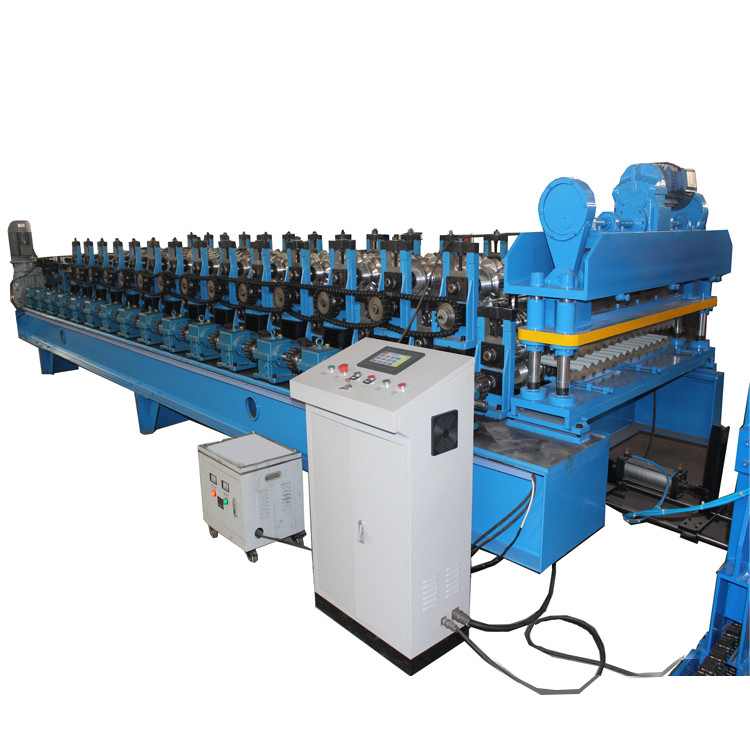

Roof Panel Double Layer Roll Forming Machine Full Auto Sheet Metal Roll Forming Machine
Roof Panel Double Layer Roll Forming Machine Full Auto Sheet Metal Roll Forming Machine.Compared to a single layer roof panel roll forming machine, a double layer roll forming machine is desgined to produce two different kinds of metal sheets which can be one trapezoidal roofing and one roof/wall cladding sheet.
Our Roll Forming Machine’s advantages
1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.
5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.
6. powerful driving system: big inch train,or gear box driving system.
7. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.
Detailed Parameters:
| Raw material | Color steel, PPGI, GI, Aluminum sheet, etc |
| Material width | 600-1250mm |
| Thickness of material | 0.3-0.8mm |
| Forming speed | 10-15 m/min |
| Main motor power | 5.5kw |
| Roller material | 45#steel |
| Roller station | 12-16 stations |
| Transmission | By chain |
| Shaft material | 45#steel |
| Blade material | Cr12Mov |
| Electrical control system | PLC control with touch screen |
| Cutting type | Hydraulic cutting |
| Hydraulic power | 3kw |
| Cutting length tolerance | +/- 1.5mm |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
