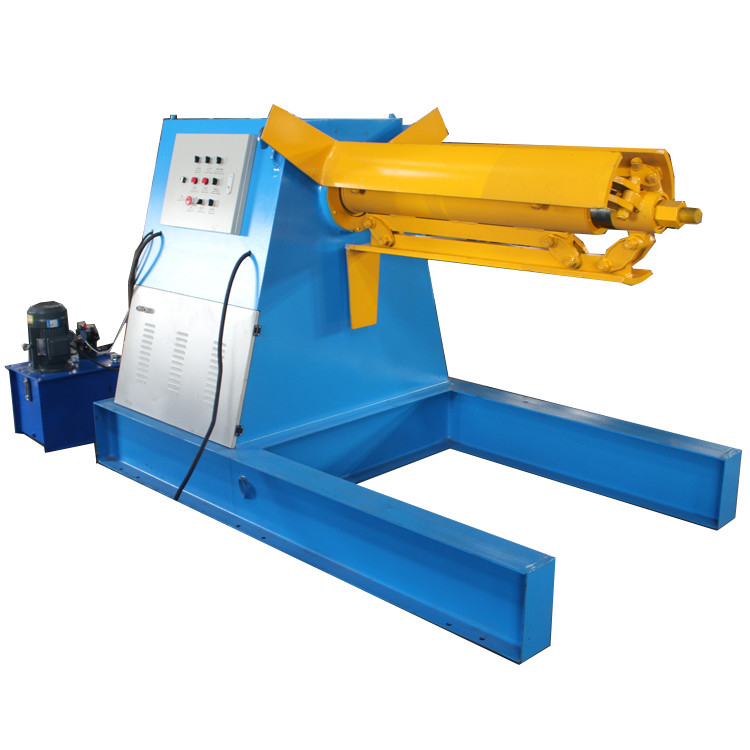

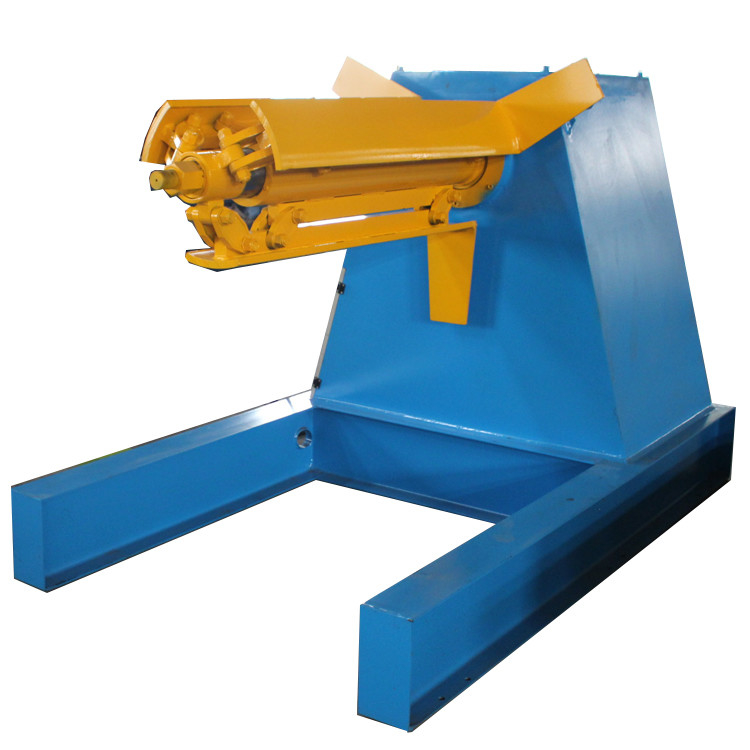

Full-Automatic Decoiler Uncoiler Machine High Speed 5T Hydraulic
Full-Automatic Decoiler Uncoiler Machine High Speed 5T Hydraulic .Characteristics
1.Applicable for feeding and winding all kinds of rolls,thin metal sheets and non-metal sheets.
2.It is driven by a master motor to drive the rolls.If necessary,it can be additionally equipped with a motor to coodinate the feeder.
3.The hydraulic equipment can coordinate the motor automatic constant tension system to brake or adjust the position,featuring easy operation.
4.An indispensable unit for the full auto macromolecule film laminating prodution line.
Main Technical Specifications
| Type of Decoiler | Full automatic |
| Weighting capacity | 5t |
| Coil diameter range | 480-620mm |
| Color | blue or according to your request |
| Wide | 1250 mm |
| Motor power | 3kw |
| Bearing weight | 1 Year |
| Weight | 1000kg |
| Dimension(L*W*H) | 1.5*12.1.5m |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 60 working days after the down payment is received.
