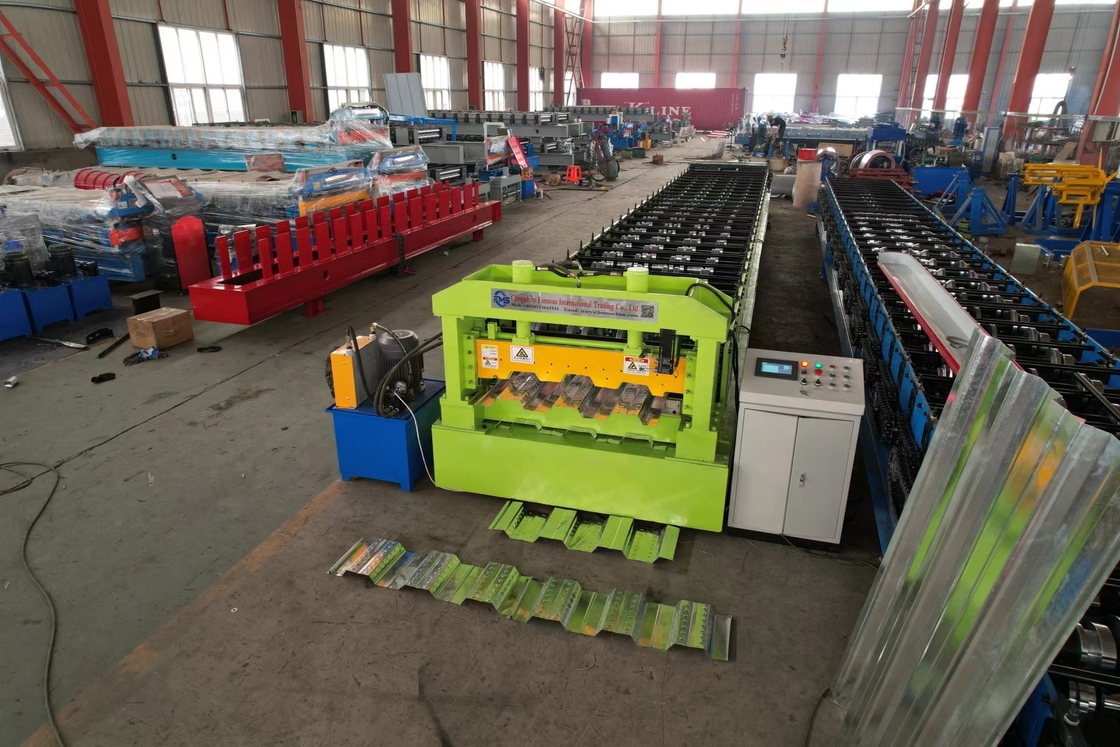

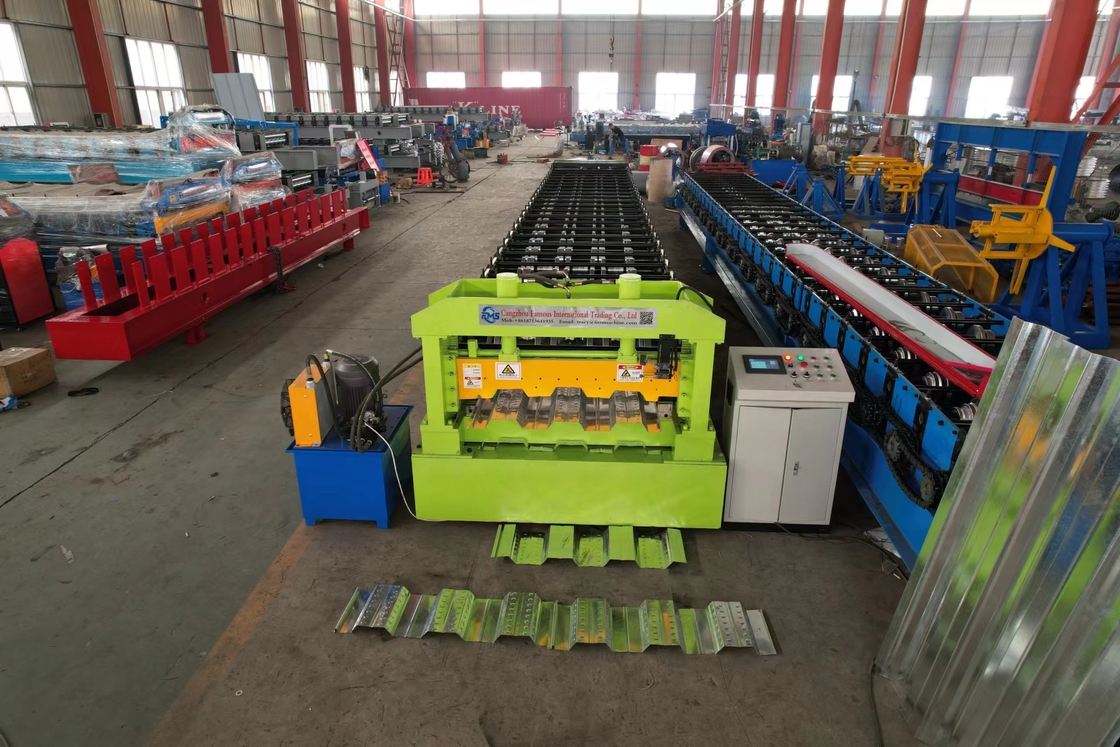

Automatic Control Metal Deck Roll Forming Machine With 10 - 20m/Min
Products are widely used in power plants, power equipment companies, automotive exhibition halls, steel structure plants, cement tanks, steel structure offices, airport terminals, railway stations, stadiums, concert halls, large -scale supermarkets, logistics centers, Olympic venues sports sports Steel structure buildings such as venues
Specification
|
Customized Metal Deck Roll Forming Machine With 15 - 20m/Min
|
|
|
Dimensions
|
12.5*1.8*2.0m
|
|
Weight
|
About 10500kgs
|
|
Roller
|
26 Rows
|
|
Material of the Cutting Blade
|
Cr12, Quenched treatment 58℃-60℃
|
|
Rolling Materials
|
45# forging steel with chromium plate
|
|
Diameter of the Roller
|
Φ90mm
|
|
Main Structure of the Machine
|
450H beams
|
|
Side Panel of Machine
|
20mm
|
|
Chain
|
1 Inch
|
|
Motor Power
|
15Kw*2
|
|
Pump Station Motor
|
4Kw Lichao Brand
|
|
Productivity
|
10-15m/min
|
|
Thickness of the Plate
|
0.5-1.2mm
|
|
Length Tolerance
|
±2mm
|
|
Touch Screen
|
Delta
|
|
Voltage
|
380V 50Hz 3 phases or as customer's need
|
|
Drive Mode
|
Motor driver
|
|
Suitable to Process
|
GI/GL/PPGI/PPGL/Aluminum coils
|
To meet the requirements of the rapid construction of the main steel structure, it can provide a firm operating platform in a short period of time, and can use multiple floors to lay pressure steel plates, and layered pouring concrete plate flowing water construction construction
Advantage
1: To meet the requirements of the rapid construction of the main steel structure, it can provide a firm operating platform in a short period of time. It can also use multiple floors to lay pressure steel plates and layered flowing water on the stratified concrete plate.
2: During the use stage, the tillers of the concrete floor are also increased the rigidity of the floor, which saves the amount of steel and concrete.
3: The surface pressure of the pressure plate makes the maximum binding force between the panel and the concrete, so that the two form the overall, with the ribs, so that the building's board system has a high -strength bearing capacity.
4: Under the cantilever conditions, the Loucheng board is only used as a permanent template. The length of the suspended length can be determined according to the section characteristics of the building. In order to prevent the cracking of the suspended board, it is necessary to match the negative tendon according to the design of the structural engineer at the branch.
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
