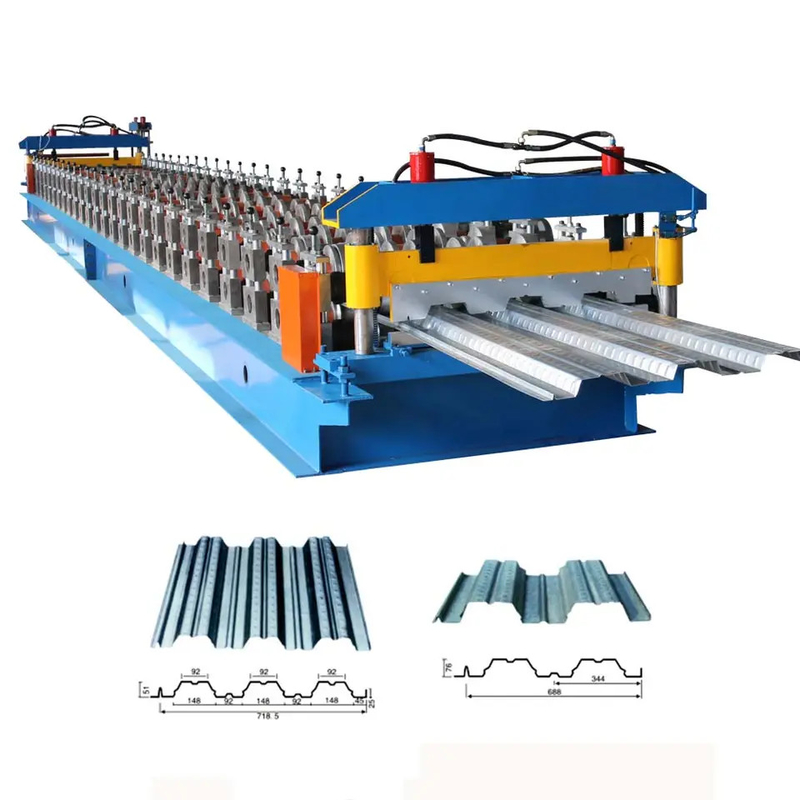

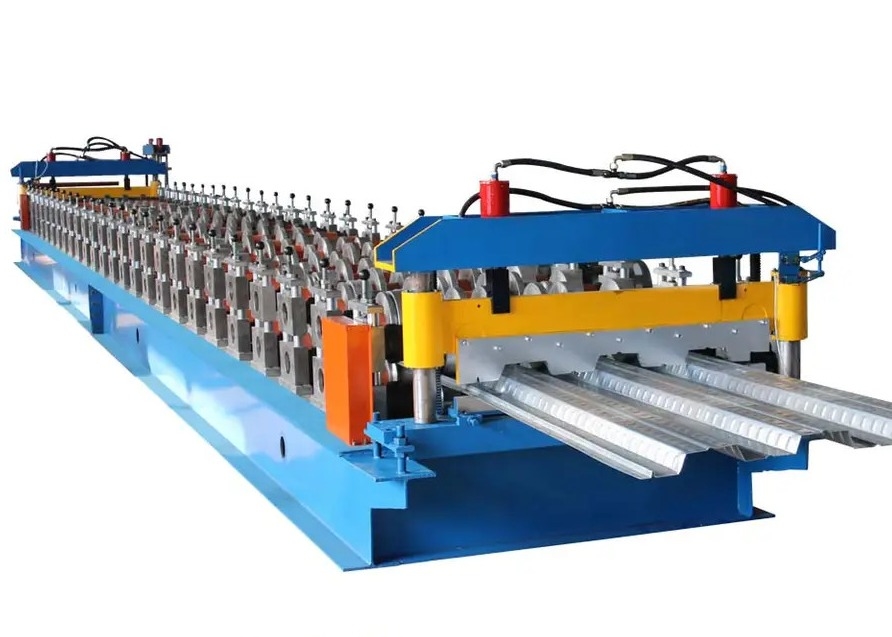

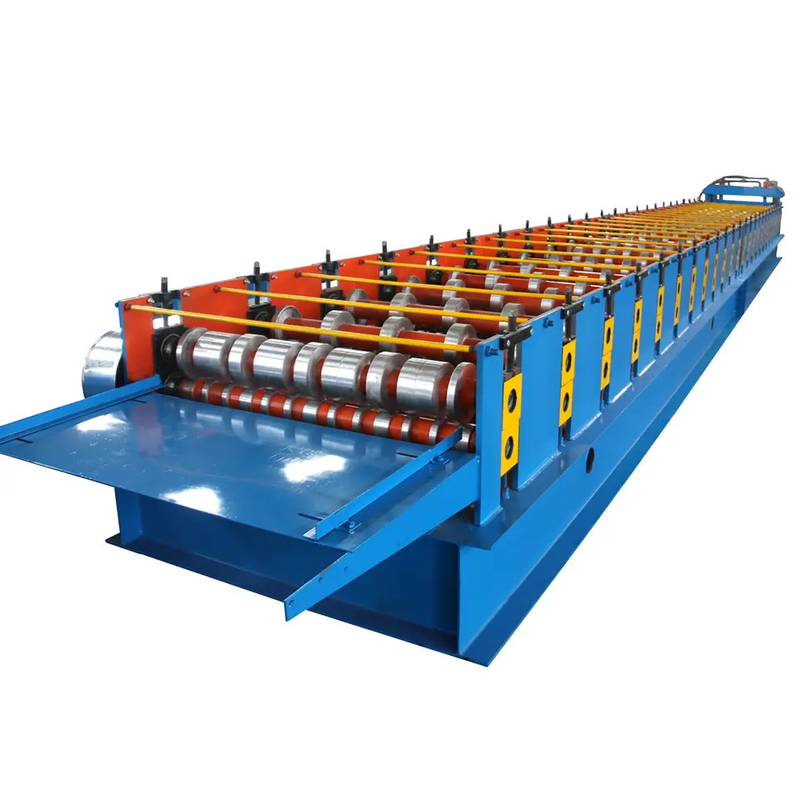

Automatic High Precision Steel Floor Deck Roll Forming Machine Production Line
Automatic High Precision Steel Floor Deck Roll Forming Machine Production Line
Usage:
In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working
Feature:
Ensure stability , precision and lifetime.
Our company's products are available inall price ranges. Different functions andconfigurations have different product pricesIt depends on your needs and budget. Inthis way,l can recommend the most suitableproducts to you.
Specification
| Main Forming machine | Forming steps | 22 steps |
| Shaft diameter | 80mm | |
| Machine stand | Individual Arch Plate | |
| Machine frame | steel plate welded | |
| roller material | 45#steel | |
| shaft material | 45# steel with quenching and tempering | |
| Work speed | 0-15m/min | |
| Transport | By chains | |
| Power of main machine | 22kw | |
| Voltage | 380V-50HZ-3P(as required) | |
| Machine dimension | 13*1.5*1.2m | |
| Machine weight | About 6.5T | |
| Machine color | Yellow and blue(as required) |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
