Hydraulic Shear Metal Decking Floor Deck Roll Forming Machine Metal Deck Machines
Hydraulic Shear Metal Decking Floor Deck Roll Forming Machine Metal Deck Machines :
The main benefit of a composite metal floor deck is strengthening your floor system without adding extra weight. Composite metal floor deck comes in different profile types, gauges and lengths. Each profile type and gauge is engineered for different concrete slabs and yields different values in strength. Not all projects are engineered the same. Some areas may require more strength and that requires a heavier gauge or different profile type.
metal decking floor deck roll forming machine is mainly used to produce press-formed steel plate to support floor concrete,the floordeck which is widely used in power plants, power equipment companies, automobile exhibition halls, steel structure plants, cement warehouses, steel structure offices, airport terminals, railway stations, stadiums, concert halls, grand theaters, large supermarkets, logistics centers, Olympic venues, sports Steel structure buildings such as stadiums.This product has strong durability, is not easy to be damaged, and the speed of rolling the steel plate is fast, which greatly saves time and labor costs. The finished steel plate after rolling is light in weight, good in shape, and not easily deformed.
Specification
|
Hydraulic Shear Metal Decking Floor Deck Roll Forming Machine Metal Deck Machines
|
|
|
Dimensions
|
12.5*1.8*2.0m
|
|
Weight
|
About 10500kgs
|
|

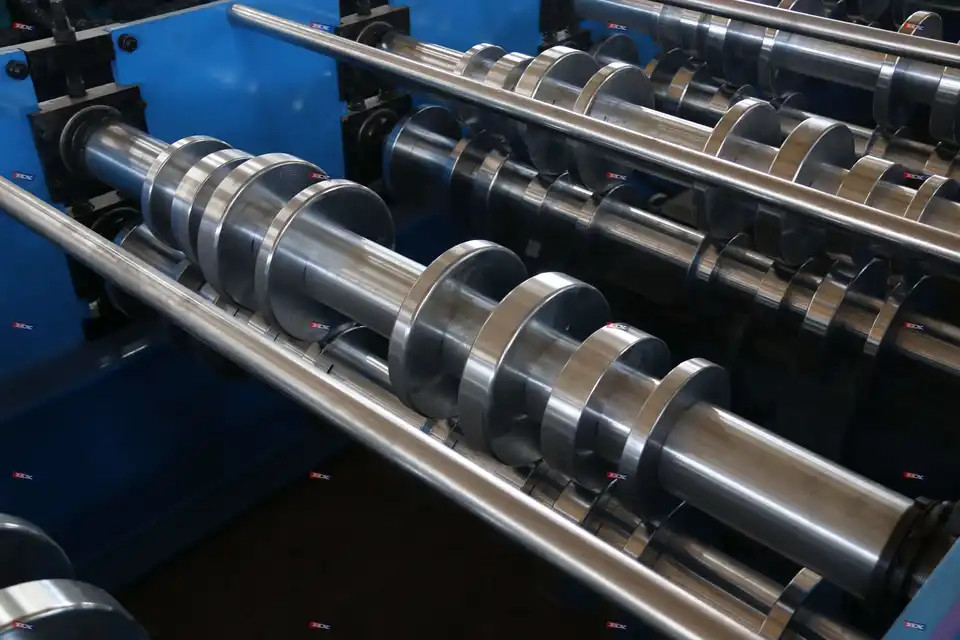

Roller
|
26 Rows
|
|
Material of the Cutting Blade
|
Cr12, Quenched treatment 58℃-60℃
|
|
Rolling Materials
|
45# forging steel with chromium plate
|
|
Diameter of the Roller
|
Φ90mm
|
|
Main Structure of the Machine
|
450H beams
|
|
Side Panel of Machine
|
20mm
|
|
Chain
|
1 Inch
|
|
Motor Power
|
15Kw*2
|
|
Pump Station Motor
|
4Kw Lichao Brand
|
|
Productivity
|
10-15m/min
|
|
Thickness of the Plate
|
0.5-1.2mm
|
|
Length Tolerance
|
±2mm
|
|
Touch Screen
|
Delta
|
|
Voltage
|
380V 50Hz 3 phases or as customer's need
|
|
Drive Mode
|
Motor driver
|
|
Suitable to Process
|
GI/GL/PPGI/PPGL/Aluminum coils
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
