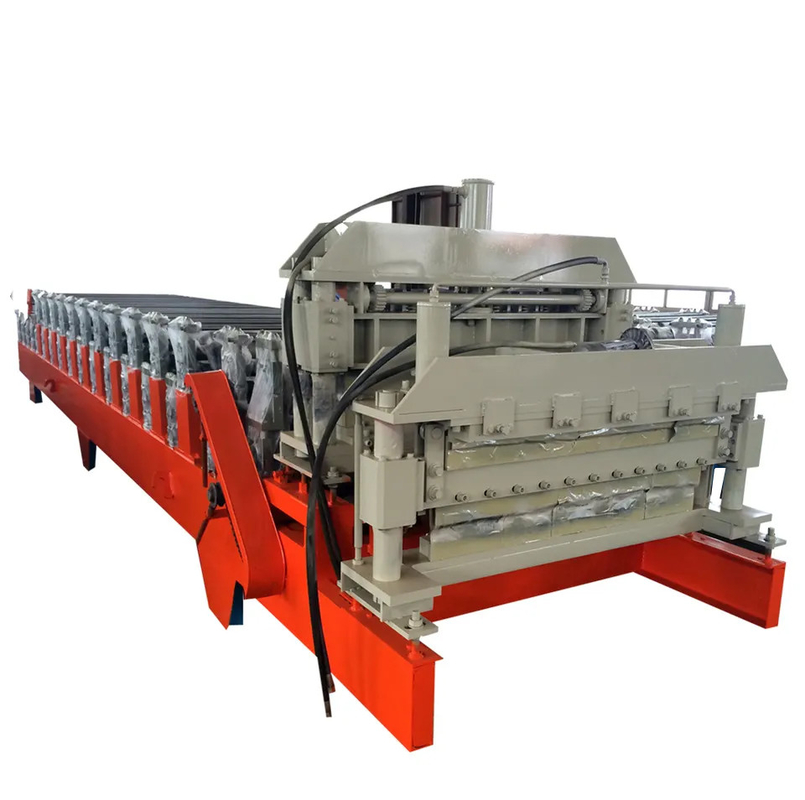

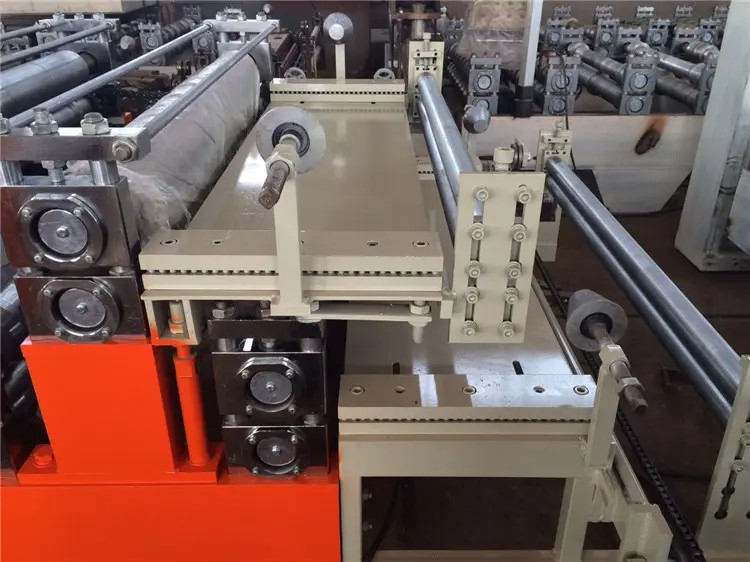

Roofing Sheet Double Layer Roll Forming Machine For Metal Roof Sheet Production
Roofing Sheet Double Layer Roll Forming Machine For Metal Roof Sheet Production .Compared to a single layer roof panel roll forming machine, a double layer roll forming machine is desgined to produce two different kinds of metal sheets which can be one trapezoidal roofing and one roof/wall cladding sheet.
Now our double layer metal roofing corrugated roll forming machine have been exported to many countries,We factory have already machine, welcome to visit and test. we can aslo customize the machine as ur need.
Detailed Parameters:
| Part details | Item Name | Specification |
| Manual uncoiler | carrying capacity | 5-8 tons |
| Stype | Manual | |
| Raw coil | Coil material | steel |
| Coil thickness | 0.3-0.8 mm | |
| Machine body | Roller station | 15 station |
| Roller material | 45# steel | |
| Shaft material | 45# steel | |
| Shaft diameter | 75 mm | |
| Machine weight | About 6.5 tons | |
| Machine size | 5-7.5*1.3*1.3 m | |
| Speed | 8-12 m/min | |
| Cutter | Operate | Hydraulic cutting |
| Blade material | Cr12 | |
| Power | Operate | Chain transmission |
| Chain size | 1 inch chain | |
| Control system | PLC brand | Taiwan delta |
| Motor power | 7.5 kw | |
| Hydraulic pump power | 3 kw | |
| Voltage | 380V 50Hz 3phase | |
| Machine color | As ur need | |
| Machine language | Chinese and English |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
