High Quality Double Layer Roll Forming Machine Glazed Tile IBR

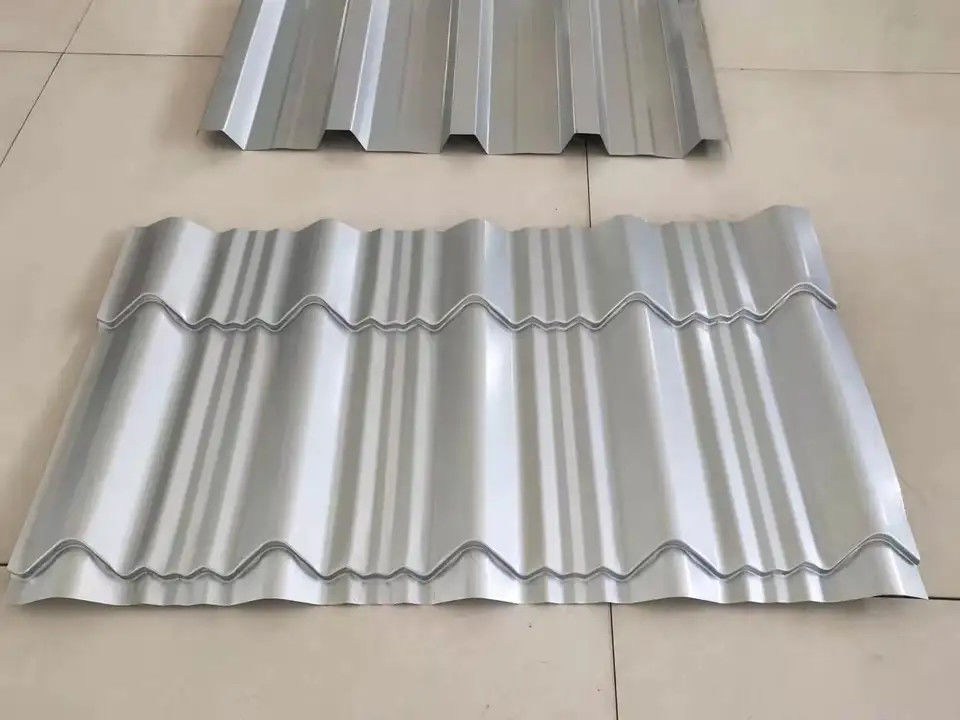

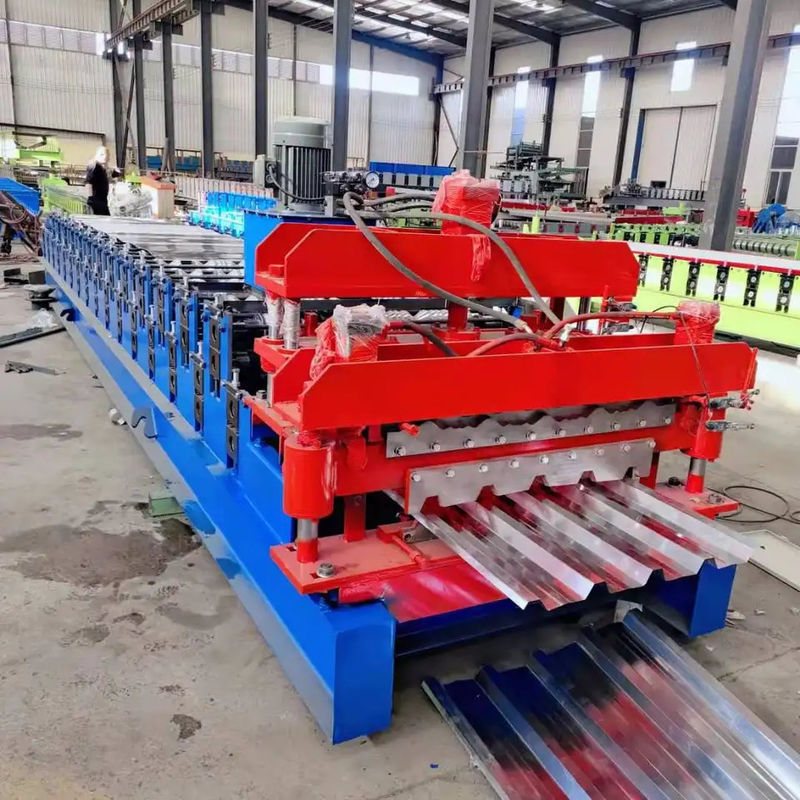

High Quality Double Layer Roll Forming Machine Glazed Tile IBR.The double layer roll former produces a dual profile on the same machine, sharing the same decoiler, drive trains and motors, but using different rolls and different cut offs.
The double layer machine is particularly useful where operating or storage space is a problem.
Specification
|
Superior Quality Colored Glazed Metal Roof Tile Roll Forming Machine
|
||
|
General details
|
Suitable Material
|
PPGI/PPGL/GI/GL
|
|
coil width
|
1000/1200/1250MM(according to your need)
|
|
|
Materials thickness
|
0.3mm-0.8mm
|
|
|
Dimension
|
About 7*1.4*1.5m(L*W*H) , as per the drawing
|
|
|
Length of the Sheet
|
can set the length according to your infact need.
It is controlled by PLC which can ensure the accuracy of ±1mm. |
|
|
Cutting
|
Automatically stop and cutting when it comes to the set length.
|
|
|
Components Details
|
Roller Material
|
High grade 45# steel. Hard chrome plating, 0.05mm.
|
|
Main Frame
|
350# steel. More stable and no shaking.
|
|
|
Middle Plate
|
16mm. We use thicker plates to ensure stability
of our products. |
|
|
Forming Steps
|
9-20 steps, according to the drawing.
|
|
|
Shaft Material
|
Φ70 mm, high grade 45# steel.
Treating process: tempering- finish turning, high rigidity, hard to deform. |
|
|
Cutting
Blade Material |
Cr12, hardness HRC60-62.
Treating process: heat treatment- plane abrasion- wire electrode cutting. |
|
|
|
Suitable Power
|
380V, 50 Hz, 3 phase(according to your need)
|
|
Screen
|
7 inch touch screen, easy to operate.Brand Delta or based on your need
|
|
|
PLC
|
Delta Brand (Or Panasonic /Siemens )
Well-adapted to various conditions, such as moisture, electromagnetic disturbance. |
|
|
Frequency Converter
|
Sanjing
It has the advantage of slowing down before cutting,
to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
|
|
Length
Measurement Device |
Omron, made in Japan.
It features with high accuracy and stability. |
|
Advantage
The metal system is accurate and solid, and will not move over time or with changes in temperature.
There is a wide range of stud widths from 50mm to 146mm to meet varying requirements.
It is a fast and clean system to erect that allows services to pass through easily.
All sections fit together easily and door frames are formed very simply.
Payment terms
30% in advance as down payment
70% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
