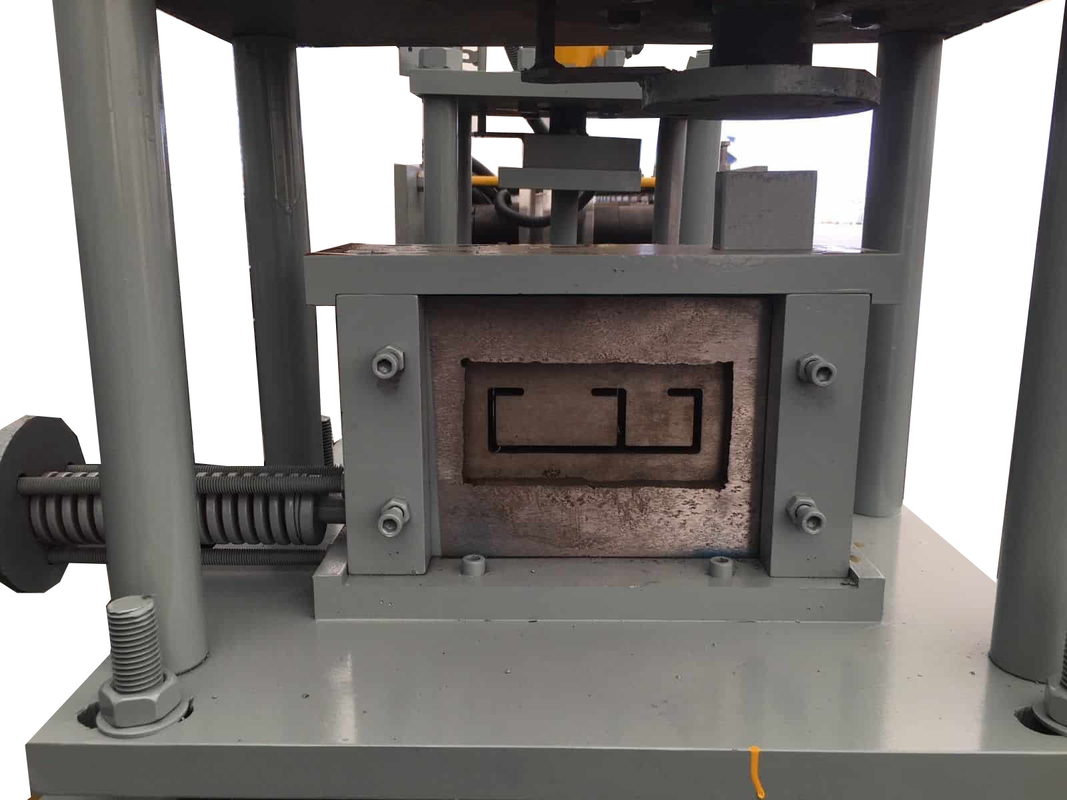

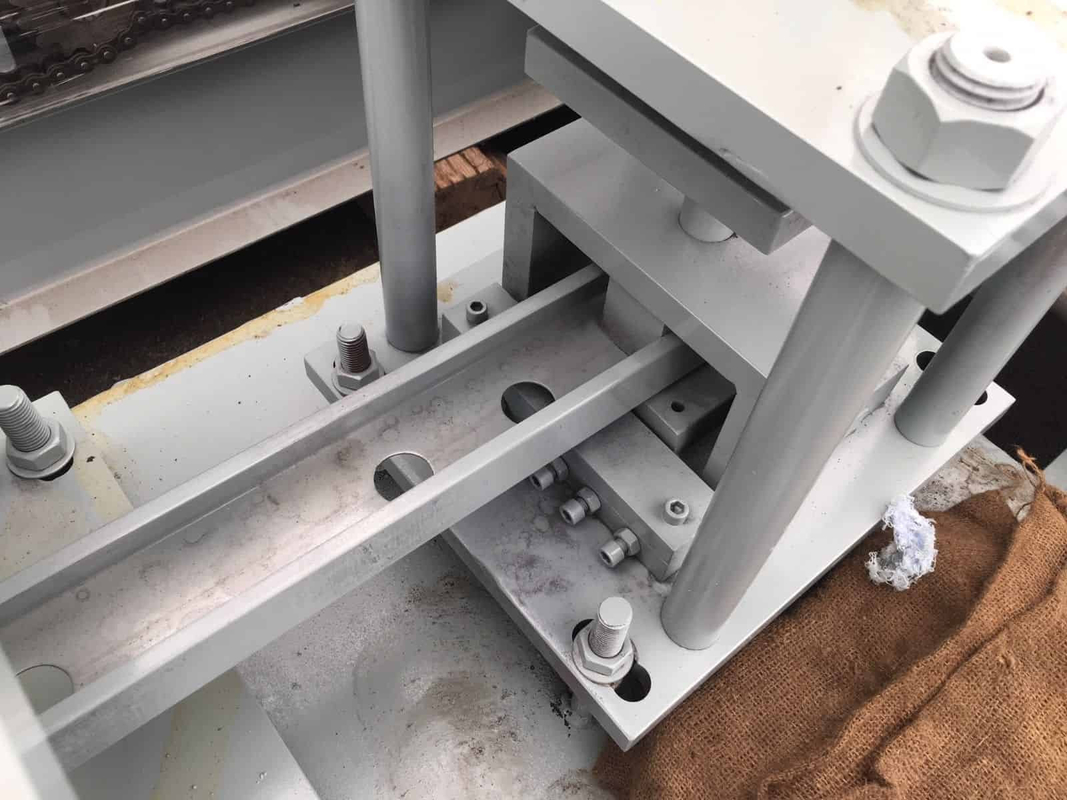

Metal Stud & Track Roll Former Machine Roll Former With Punching
The sMetal Stud & Track Roll Former Machine Roll Former With Punching for use in commercial and domestic buildings where it is necessary to provide strong non-load-bearing partitions.
There is a wide range of partition thickness available for heights of up to 12m. The system is economical and can be erected easily. When installing the system, it is advisable to use and electrically or battery-operated screw gun. It is necessary to ensure that electric cables can pass through the studs that are protected by grommets.
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized |
| 2 | Raw Material Thickness | 0.4-0.6mm |
| 3 | Working Speed | 20-40 m/min |

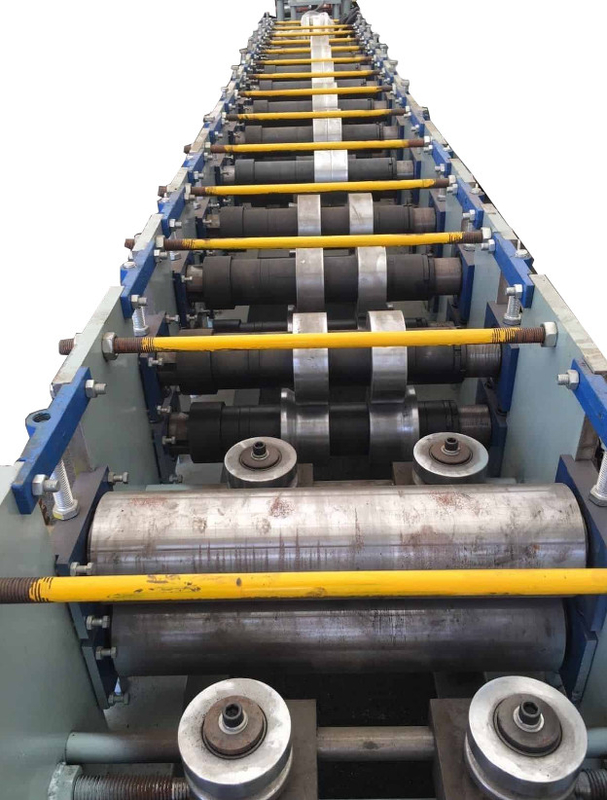

| 4 | Roller Station | 12 Raws |
| 5 |
Dimension (L*W*H) |
5500 mm*1000 mm*1500 mm |
| 6 | Machine Weight | 1500 KG |
| 7 |
Electrical Control System |
Delta PLC (can be customized) |
| 8 |
Flange Track |
3.6 & 5.6 x 2.125 |
| 9 |
Hydraulic Station Power |
4 KW |
| 10 |
Power Supply |
220v 3 phase 60hz(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
gauge |
24 gauge -16 gauge |
| 13 |
Profile |
as customer requested |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Advantage
The metal system is accurate and solid, and will not move over time or with changes in temperature.
There is a wide range of stud widths from 50mm to 146mm to meet varying requirements.
It is a fast and clean system to erect that allows services to pass through easily.
All sections fit together easily and door frames are formed very simply.
Payment terms
30% in advance as down payment
70% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
