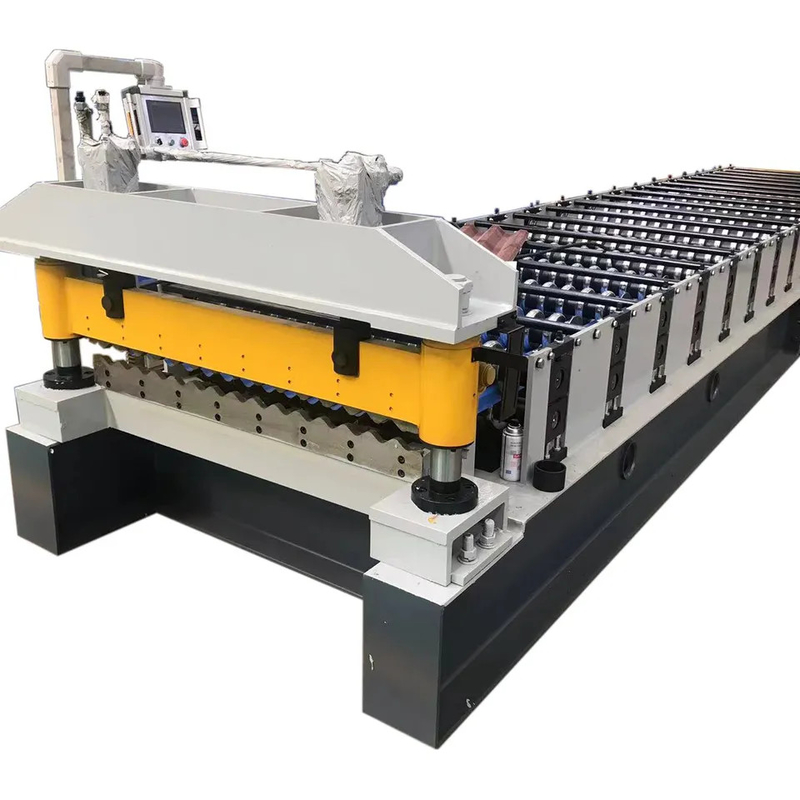

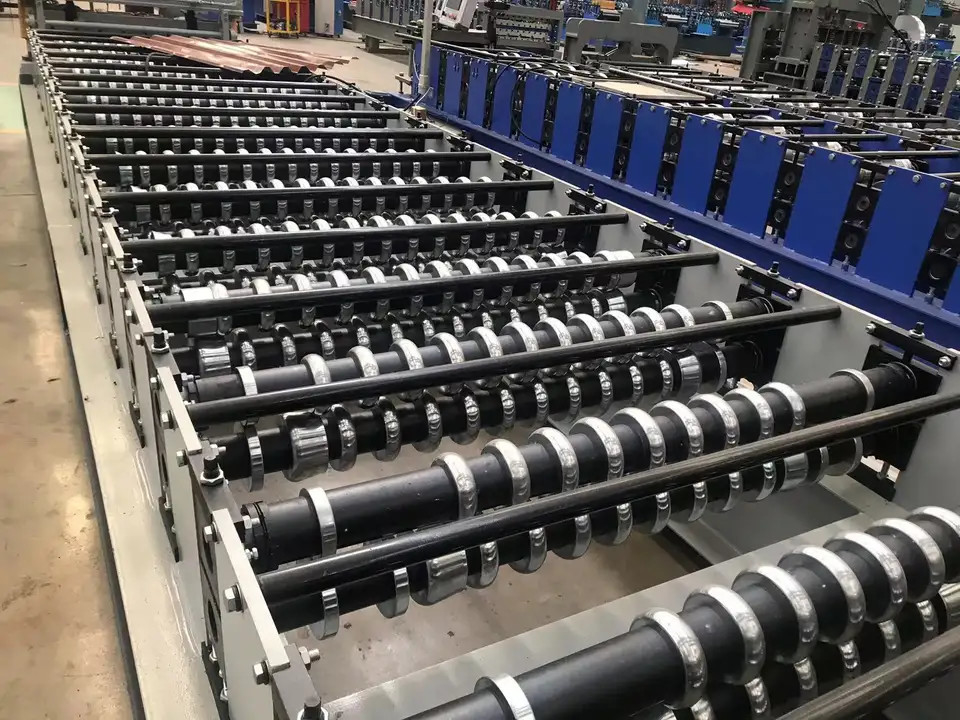

Automatic Corrugated Roof Sheet Roll Forming Machine Corrugated Iron Making Machine
Automatic Corrugated Roof Sheet Roll Forming Machine Corrugated Iron Making Machine
decoiler→feeding→roll forming→measuring length→cutting to length→product to stand
Automatic Corrugated Roof Sheet Roll Forming Machine Corrugated Iron Making Machine
|
No
|
Item
|
Data
|
|
1
|
Coil Width
|
according to drawings
|
|
2
|
Diameter of shaft
|
70mm
|
|
3
|
Forming Speed
|
8-12meters/min
|
|
4
|
Middle plate
|
16mm
|
|
5
|
Material of shaft
|
45#steel with tempering
|
|
6
|
forming thickness
|
0.2mm-0.6mm
|
|
7
|
material of rollers
|
45#steel
|
|
8
|
Cutting type
|
hydraulic -cutting
|
|
9
|
Main power
|
4kw+3kw
|
|
10
|
Main frame
|
300H steel
|
|
11
|
Control system
|
PLC
|
|
12
|
Brand of electrical parts
|
Delta
|
|
13
|
Manual decoiler
|
5 tons
|
|
14
|
Power
|
3 Phase,380 Voltage,50Hz
|
|
15
|
Dimensions(L*W*H)
|
About 6.5*1.2*1.2M
|
|
16
|
Weight
|
about 3 KG
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
