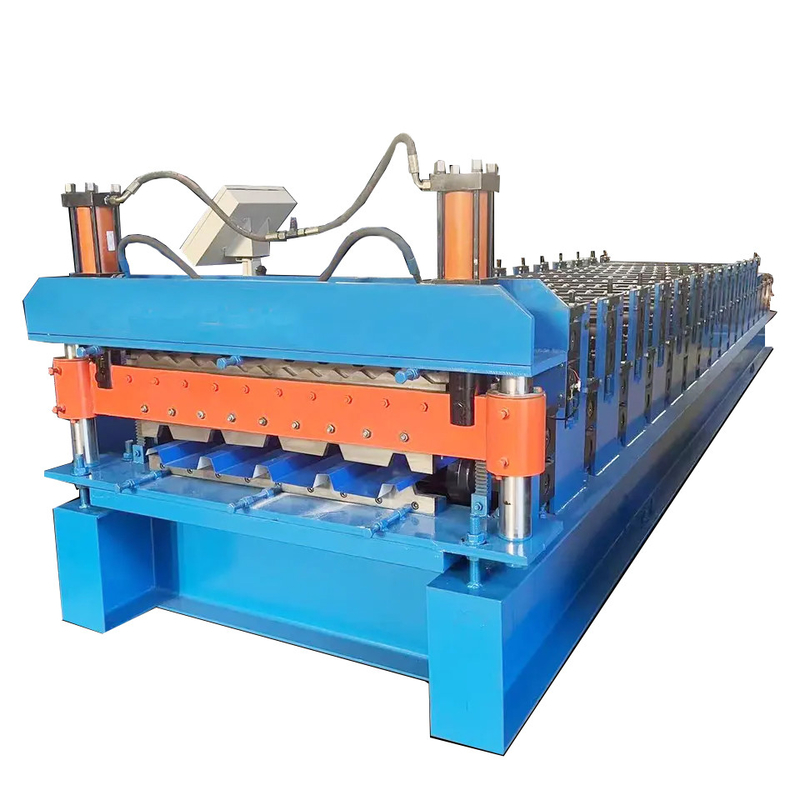

Roof Sheet Form Double Layer Roll Forming Machine With Long Service Life
roofing sheet double layer roll forming machine | double layer metal roof roll forming machine | metal roof machine | trapezoidal sheet roll forming machine | roofing sheet making machine | Roof Sheet Form Double Layer Roll Forming Machine With Long Service Life
Double Layer Roll Forming Machine, available for two profiles (wall and roof panels, etc...) shared one frame, save the cost & space. The two profiles should be double check before making together.
1.This double roll forming machine can produce two different profiles with one machine. Via shared same base frame, un-coiler, PLC control system can much save of your cost.
2.More reasonable forming process design and higher speed; Less roller steps with competitive price.
3.The whole line consists of un-coiler, feeding section, double pre-shearing device, roll forming machine with protect guard, post-cut device, PLC control system, and so on.
Specification
|
item
|
value
|
|
Applicable Industries
|
Building Material Shops, Farms
|
|
Type
|
Tile Cutting Machine
|
|
Tile Type
|
Steel
|
|
Production Capacity
|
8-15M/min
|
|
Place of Origin
|
China
|
|
Voltage
|
380V
|
|
Dimension(L*W*H)
|
12*2.2*1.8 meters
|
|
Weight
|
3100kg
|
|
Warranty
|
2 years
|
|
Key Selling Points
|
Automatic
|
|
Rolling thinckness
|
0.3-0.8mm
|
|
Feeding width
|
1220mm
|
|
Machinery Test Report
|
Not Available
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Motor, Pump, PLC
|
|
Control system
|
PLC(imported Brand)
|
|
Roller material
|
45#steel Chrome Plated
|
|
Cutting blade material
|
Cr 12 High Grade Steel
|
|
Machine Color
|
Client's Requriment
|
Advantage
The metal system is accurate and solid, and will not move over time or with changes in temperature.
There is a wide range of stud widths from 50mm to 146mm to meet varying requirements.
It is a fast and clean system to erect that allows services to pass through easily.
All sections fit together easily and door frames are formed very simply.
Payment terms
30% in advance as down payment
70% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
