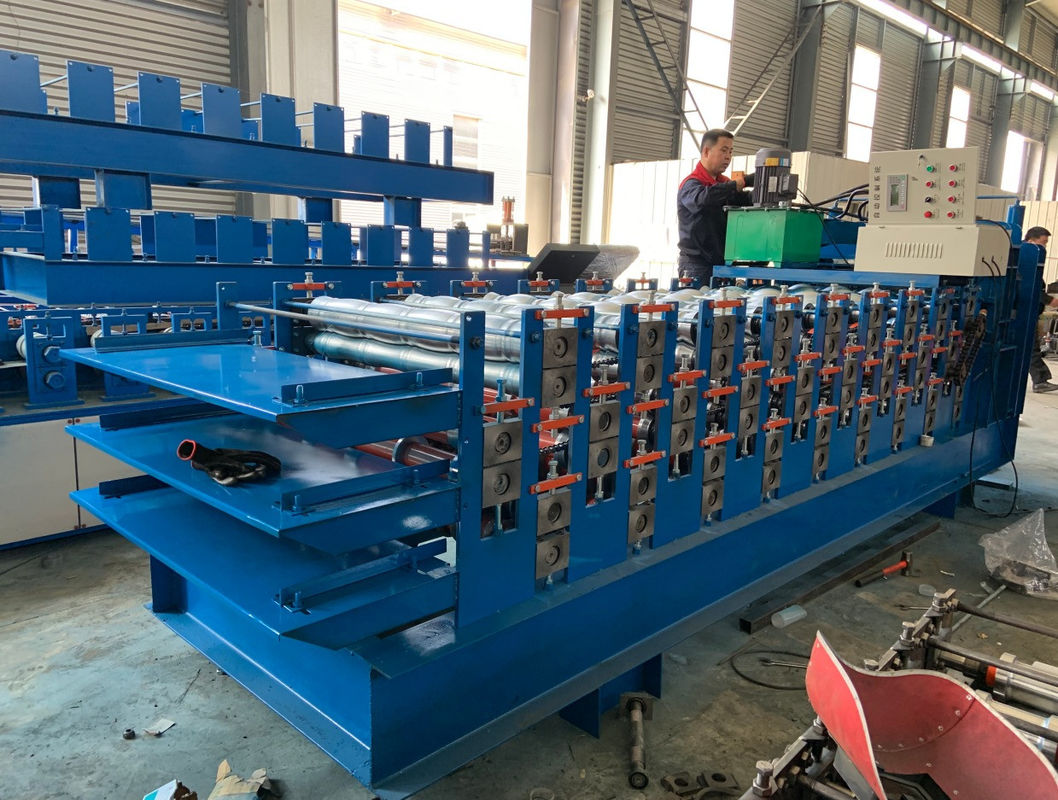

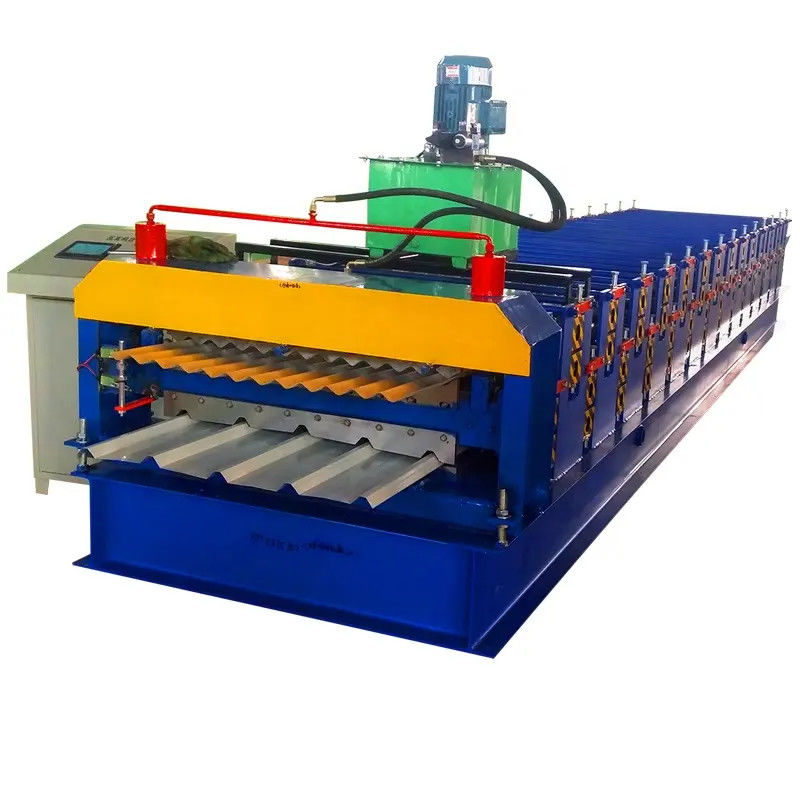

Metal Roofing Sheet Double Deck Roll Former Double Layer Roll Forming Machine
Our factory is a professional manufacturer of roll forming machine established for more than 20 years. The main products are metal trapezoidal/corrugated roofing roll forming machine,color steel glazed tile roll forming machine, Metal Roofing Sheet Double Deck Roll Former Double Layer Roll Forming Machine, rain gutter/downspout roll forming machine, C/U/Z purline roll forming machine, light keel stud and track roll forming machine, rolling shutter door /door frame making machines and so on.
We have passed ISO9001 quality certification and European CE security certificate.
Our products have been sold to worldwide, including North/South America, Asia, Africa, Australia and Europe... We know well about the requirement from different regions’ customers.
We have outstanding export team to listen to your request; the designed team will show you the best proposal according to your request. We believe that our cooperation will create bright future.
Specification
| No. | Metal Roofing Sheet Double Deck Roll Former Double Layer Roll Forming Machine | |
| 1 | Suitable to process | Color steel plate,galvanized board |
| 2 | Width of the plate | 1220mm |
| 3 | Rollers | 14+12rows |
| 4 | Dimensions | 7.4*1.45*1.51m |
| 5 | Power | 4+4kw |
| 6 | Thickness of the plate | 0.3-0.6mm |
| 7 | Productivity | 0-15m/min |
| 8 | Material of the cutting blade | Cr12 |
| 9 | Diameter of the roller | Φ70mm |
| 10 | Weight | About 5.8T |
| 11 | Voltage | 380v 50Hz |
Advantage
The metal system is accurate and solid, and will not move over time or with changes in temperature.
There is a wide range of stud widths from 50mm to 146mm to meet varying requirements.
It is a fast and clean system to erect that allows services to pass through easily.
All sections fit together easily and door frames are formed very simply.
Payment terms
30% in advance as down payment
70% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
