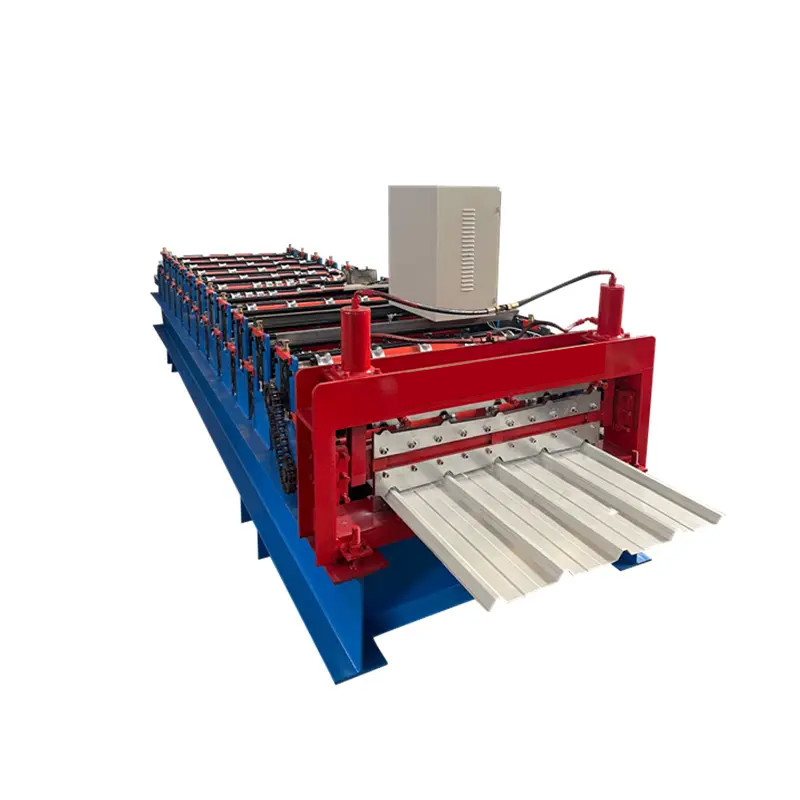

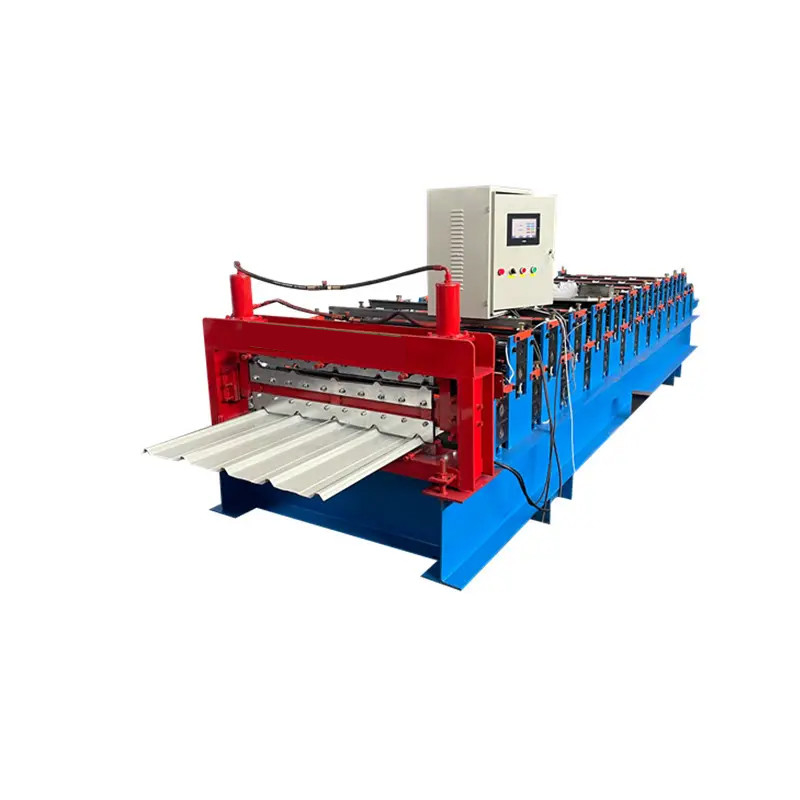

Roofing Sheet Wall Panel Double Layer Roll Forming Machine IBR Roll Forming Machine
Specification
| Model | 840/900 |
| Rod | 18 |
| Production and processing speed | 10 m/min |
| Processing thickness | color steel 0.8mm |
| Axle diameter of roll | Ø70 |
| Frame | 300H steel welding |
| Medium plate | 16mm |
| Transmission mode | 1 inch sprocket chain drive |
| Shaft material | 45# quenching and finishing machining |
| Wheel material | 45# finishing car processing, high frequency quenching, hard chrome plating |
| Main engine power | 4KW pure copper motor |
| Oil pump motor | 4KW |
| Control system | touch screen setting |
| Shear | hydraulic mold shear |
| Cutter plate | Cr12 blade |
Advantage
The metal system is accurate and solid, and will not move over time or with changes in temperature.
There is a wide range of stud widths from 50mm to 146mm to meet varying requirements.
It is a fast and clean system to erect that allows services to pass through easily.
All sections fit together easily and door frames are formed very simply.
Payment terms
30% in advance as down payment
70% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
