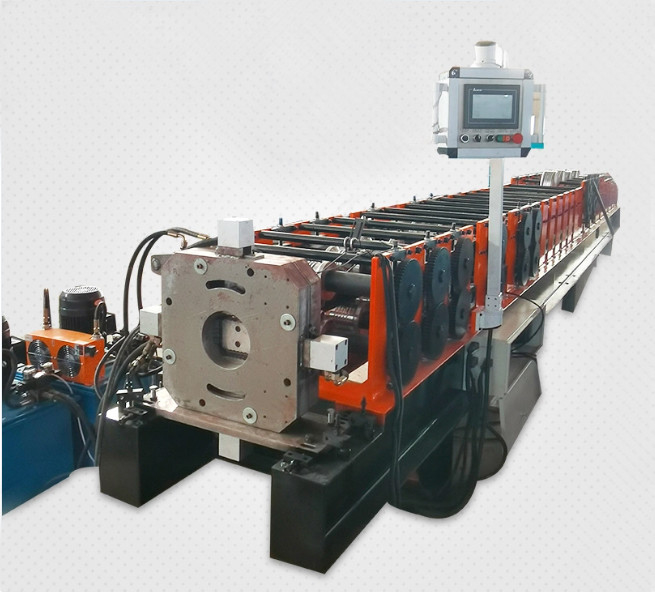

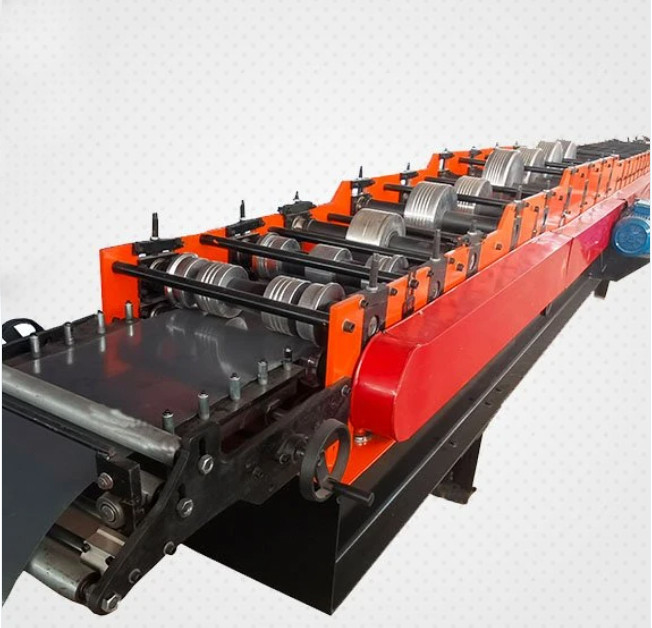

Galvanized Steel Rain Downspout Pipe Making Machine Manufacture Hydraulic Cutting System
The downpipe forming equipment is one of the high-end equipment of our company. The whole production line realizes high automation, high efficiency, labor saving, and produces the best quality products with the fastest speed. Strive for the greatest benefit for customers.
PLC Control System
Control The Quantity And Cutting Length Automatically Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,It Can Finish The Production Automatically.
Specification
| Body Frame made | H450 type steel by welding |
| Material thickness | 0.3-0.8mm |
| Frame design | According to customer requested |
| Main motor power | 4 kw |
| Rollers manufactured | 45# Steel |
| Shafts Diameter | Φ70mm |
| Main motor power | 7.5KW |
| forming speed | 5-8m/min |
| Power | 3kw |
| Cutting tool material | Cr12MoV, |
| Electric Standard | 380V /50Hz/3PH or as per customer's requirements |
| Body Frame made | from H450 type steel by welding |
Installation
During the installation and debugging of the device, our engineers should provide the buyer's personal request to provide training and maintenance of the equipment. Including basic buildings, electrical engineering, hydraulic oil, safety operations and non -standard safety items, test materials, etc.
Guarantee
The warranty will be maintained and during the delivery period during the delivery period. Due to the quality of the equipment during the guarantee period, we will provide parts for free, which is the correct operating condition. (Natural disasters or factors that humans cannot force are excluded).
Payment terms
40% in advance, 60% is paid before shipping after pass the inspection
