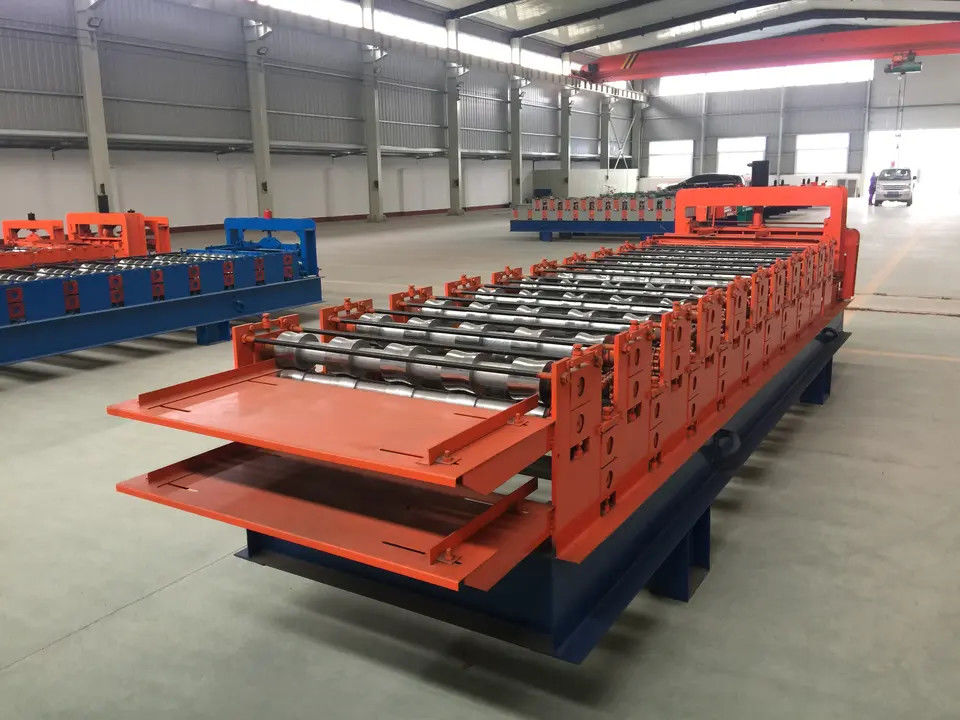

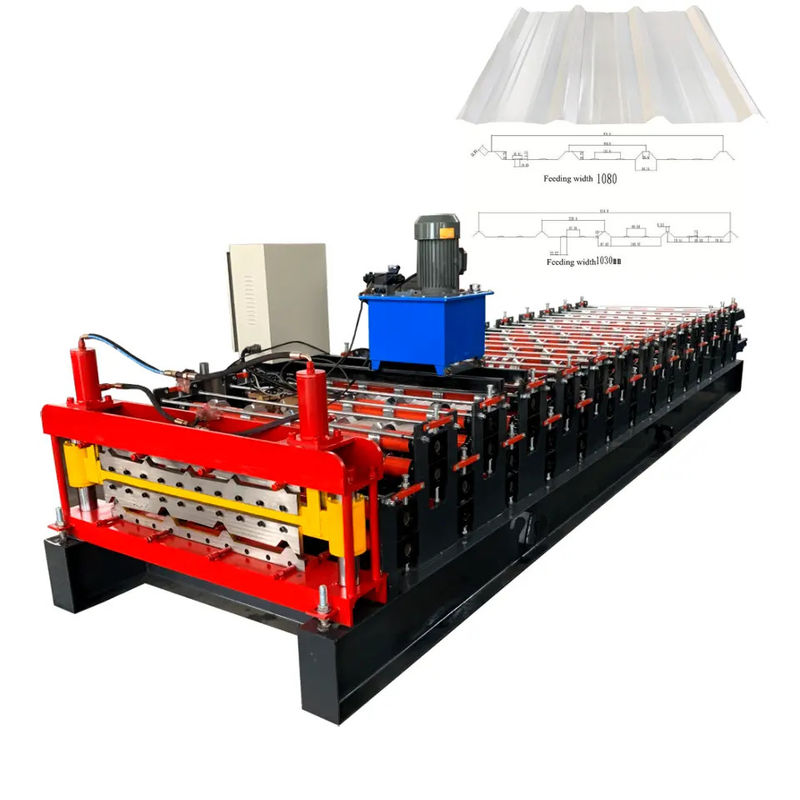

New Design 840 900 Double Layer IBR Type Roof Cold Roll Forming Machine
The double deck corrugator was a solution to the problem of limited space in the customers production facility. Two sections produced in a two level over and under configuration gives the opportunity to produce different sections from a single machine.
Specification
|
Dimensions
|
5600mm*1300mm*1500mm
|
|
Weight
|
6300 kg |
|
Main frame material
|
300H Steel
|
|
Thickness of plate in equipment
|
14mm
|
|
Roll forming row number
|
high layer:9 row (900), under layer: 11 row (840)
|
|
Forming shaft material
|
45# steel quenching treatment
|
|
Molding shaft dimension
|
Diameter of 70
|
|
Roll shape material
|
45# steel with hard chrome plating
|
|
Kind of drive
|
Chain wheel chain drive/hydraulic motor drive
|
|
Shaft Dia
|
inch 0.6
|
|
Power
|
6kw
|
|
Main motor power
|
4kw
|
|
Forming speed
|
8-10 m/min/hydraulic transmission 15 m/min
|
|
Material thickness
|
0.3-0.8mm
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
.
Payment terms
30% in advance as down payment
70% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
