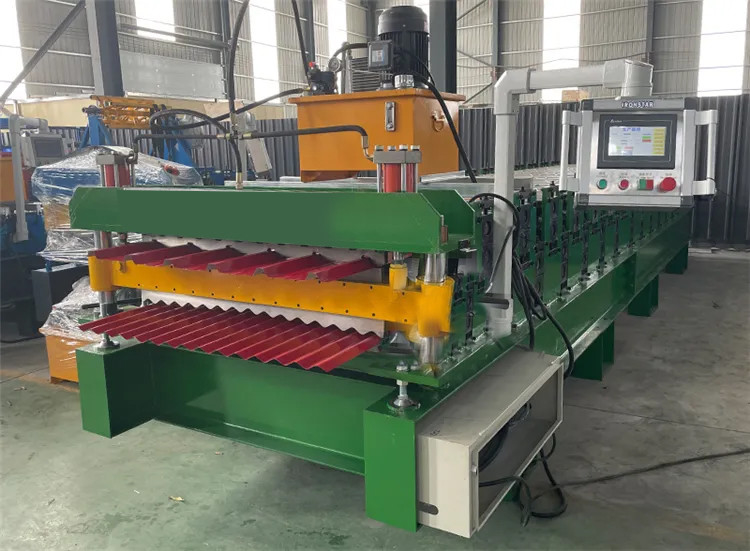

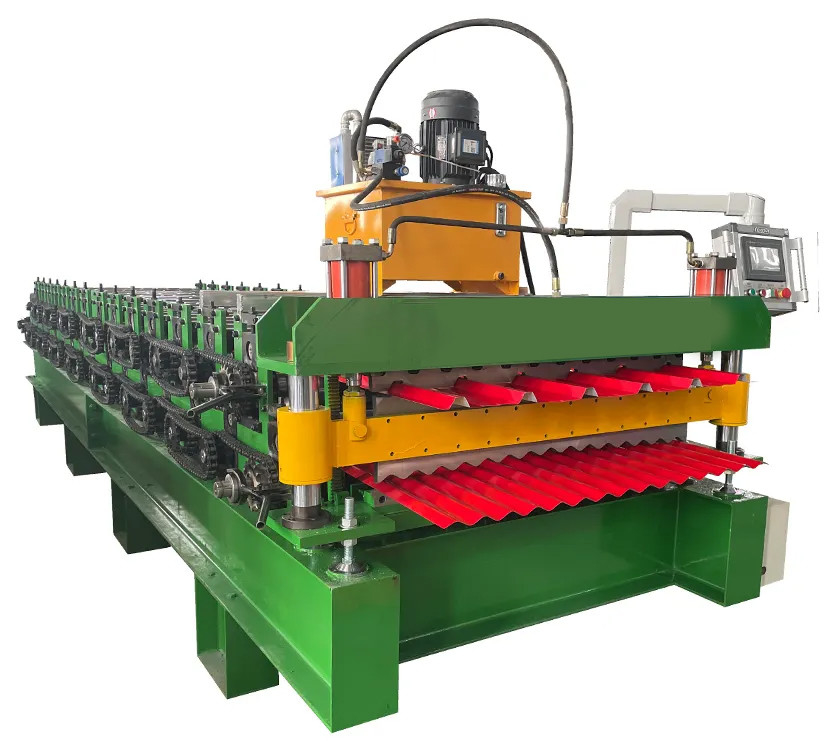

Ibr And Corrugated Double Layer Roll Forming Machine Full Automatic Plc Control
Ibr And Corrugated Double Layer Roll Forming Machine Full Automatic Plc Control Main Features
The production size we can design the machine all as customize,customer just show us the profile drawing material thickness width,Different roof panel forming machines can produce different shapes of steel roof wall sheets according to the client’s profile drawings and requirements. The steel roof, wall sheets are new building materials with various thickness and colors.
Specification
| Part Details | Item Name | Specification |
| Material | Raw Material | PPGI material |
| Thickness | 0.3-0.6 mm | |
| Machine | Roller Station | 12-18 |
| Shaft Material | 70 mm | |
| Shaft Material | 45# steel with 0.05mm chrome | |
| Roller Material | 45# steel with 0.05mm chrome | |
| Machine Size | About 5.5*1.5*1.8m | |
| Machine Weight | About 5 ton | |
| Machine Color | As customer request | |
| Working Speed | 10-20 m/min | |
| Cutter | Hardness | 50-65 HRC |
| Cutting Tolerance | ± 1mm | |
| Material | CR12 | |
| Operate | Hydraulic cutting | |
| Power | Driving Way | Chain 1 inch |
| Main Power | 5.5 KW | |
| Pump Power | 4 KW | |
| Voltage | 380v 50hz 3P, or Customize as Customer' request | |
| Control System | PLC Brand | Delta made in Taiwan |
| Screen | Touchable Screen | |
| Language | Chinese, English or Add customer' need | |
| Decoiler | Operation | Manual |
| Weight Capacity | 3 ton | |
| Price | Free as gift | |
| Receiving Table | Operation | Manual |
| Length | 3m |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
.
Payment terms
30% in advance as down payment
70% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
