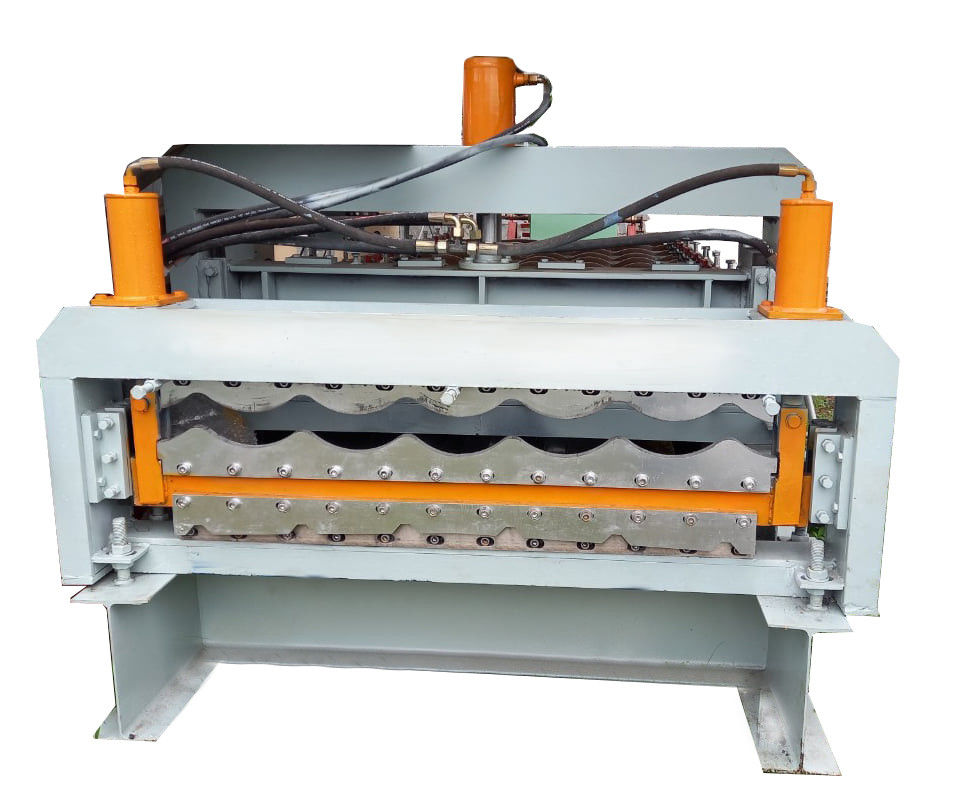

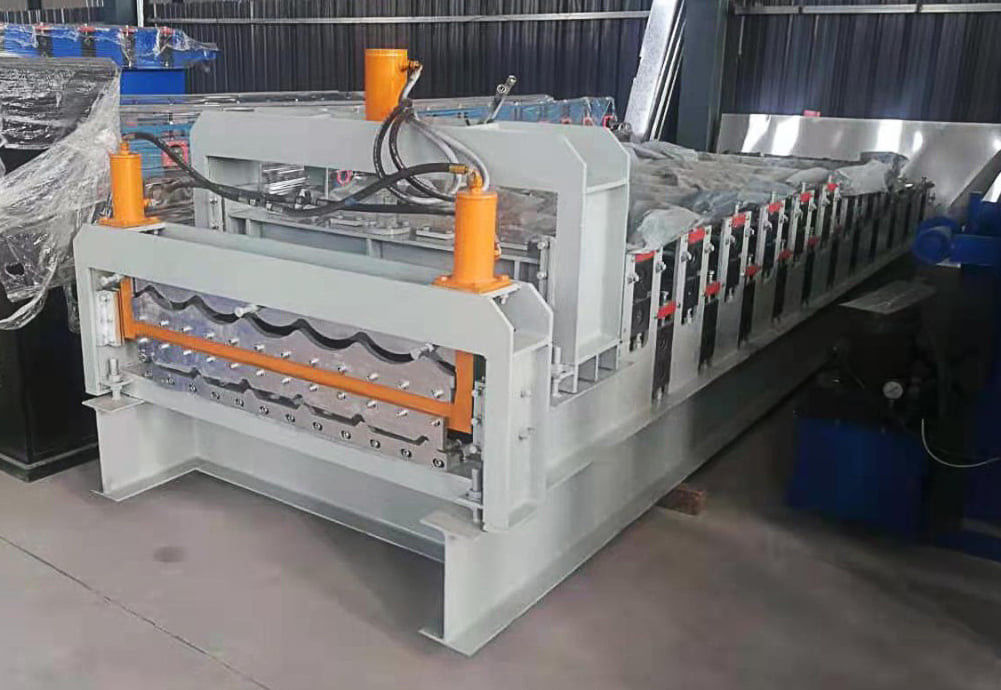

Space Saving Double Layer Roll Forming Machine Glazed Tile Span & Rib Type
Space Saving Double Layer Roll Forming Machine Glazed Tile Span & Rib Type

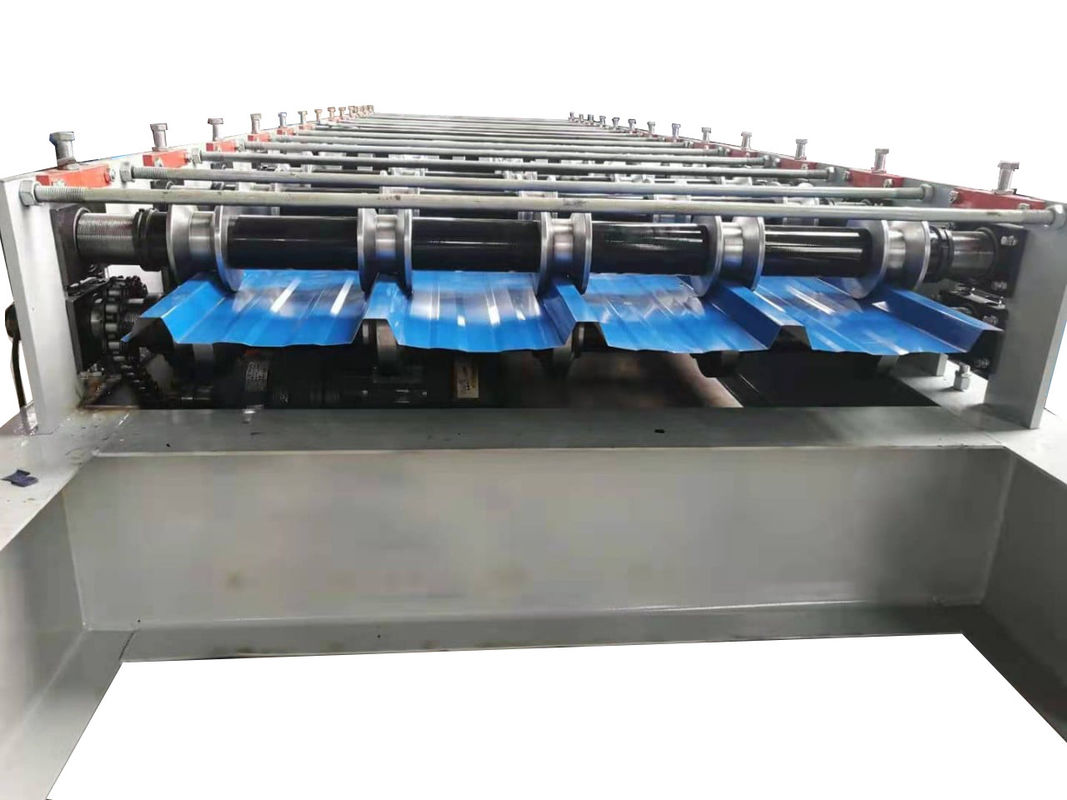

1) This double layer oof sheet roll forming machine adopts coil production material to form 2 different roofing profiles through 5 Ton manual decoiler, pinch feeding, main roll forming part, Hydraulic cutting, hydraulic station, PLC control system, and Non-power type support table.
2) The whole machine adopt PLC control, AC speed control by frequency inverter technology, to realize continuous auto production, which is the best desired machinery in steel structure and metal cold roll forming machinery industry.
This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site.
Specification
|
item
|
value
|
|
Production Capacity
|
15 m/min
|
|
Voltage
|
380V 220v
|
|
Dimension(L*W*H)
|
8.*1.2*1.3
|
|
Weight
|
5000kg
|
|
Warranty
|
1 Year
|
|
Key Selling Points
|
Automatic
|
|
Rolling thinckness
|
0.3-0.8mm
|
|
Feeding width
|
1000mm
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Bearing, Gear, Pump, PLC
|
|
Raw material
|
PPGI
|
|
Roller material
|
45#steel Chrome Plated
|
|
Local Service Location
|
Philippines
|
|
Coil width before rolling
|
1000mm
|
|
Cutting blade material
|
Cr 12 High Grade Steel
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
.
Payment terms
30% in advance as down payment
70% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
