Nguồn gốc:
Trung Quốc đại lục
Hàng hiệu:
CANGZHOU
Chứng nhận:
ISO CE
Số mô hình:
Uốn thủy lực
Băng hình
Băng hình
Băng hình

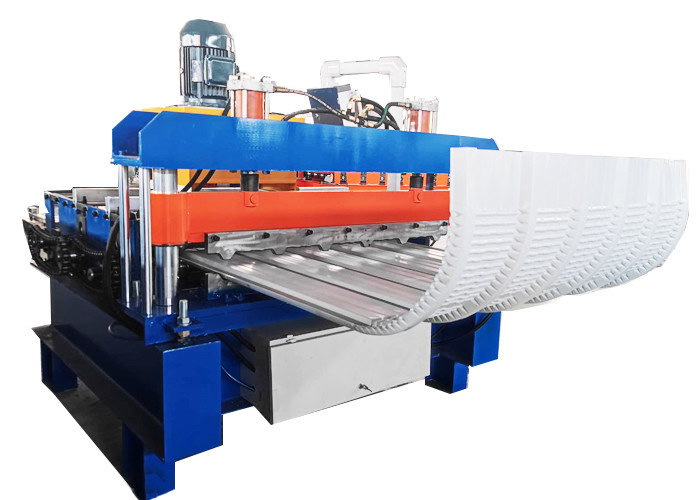

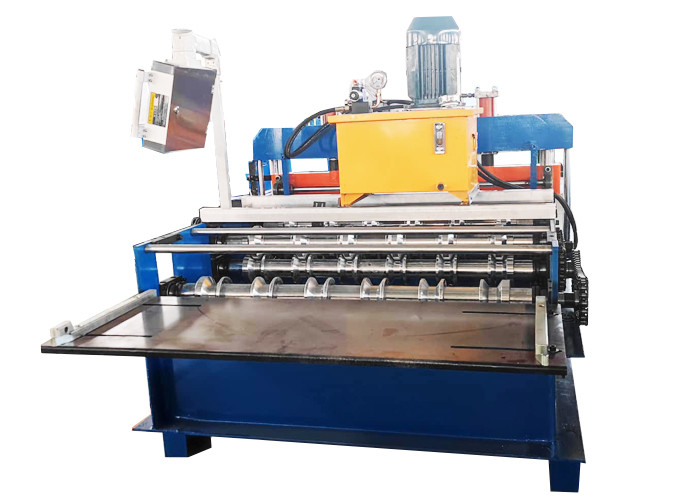

Arch Curving Roof Roll Forming Machine/Curved Roof Roll Forming Machine
1 More efficient and accurate execution of production orders;
All the control system of our machines we make by ourselves. we have a professional engineer to design and make the control system. This can make sure the after-sale service, when customer have problem with control, we can solve it timely.curving roof sheet cold roll forming machine roof curving cold roll forming machinery
Specification
|
No.
|
Item
|
parameter
|
|
1
|
machine size
|
8900mm*2230mm*2300mm
|
|
2
|
Feeding width
|
914-1250mm
|
|
3
|
Equipment weight
|
0.5T
|
|
4
|
Material of shaft
|
45#steel adjustable treatment
|
|
5
|
Out diameter of shaft
|
φ70mm
|
|
6
|
Material of roller
|
Cr12, hard chromize coated HRC58-60°C
|
|
7
|
Number of forming rollers
|
3-4 rows
|
|
8
|
Main frame
|
300 H steel
|
|
9
|
Thickness of medium plate
|
16mm
|
|
10
|
Thickness of formed steel
|
0.3-0.8mm
|
|
11
|
Main motor power
|
4 KW
|
|
13
|
Forming speed
|
8-10m/min |
|
15
|
Removable or not
|
Removable type with 4 wheels
|
|
16
|
Product name
|
IBR metal sheet curve forming machine
|
Application
This Curved roofing arch sheet building machine hydraulic crimping machine will be very smooth and beautiful without any scratch on surface.Rollforming process:uncoiler, rollforming, forming step effect, cut to length.Fully Automatic Control System with PLC.Easy operation: Key in the length and quantity on the control panel.
Payment terms
40% in advance.
60% before the shipment is processed.
Delivery
FOB Tianjin Xingang Port or CNF Designated port
The Delivery Time: 30 days after the down payment is received
