Nguồn gốc:
Trung Quốc đại lục
Hàng hiệu:
CANGZHOU WILLING
Chứng nhận:
ISO CE
Số mô hình:
Khuỷu tay Downspout Plus

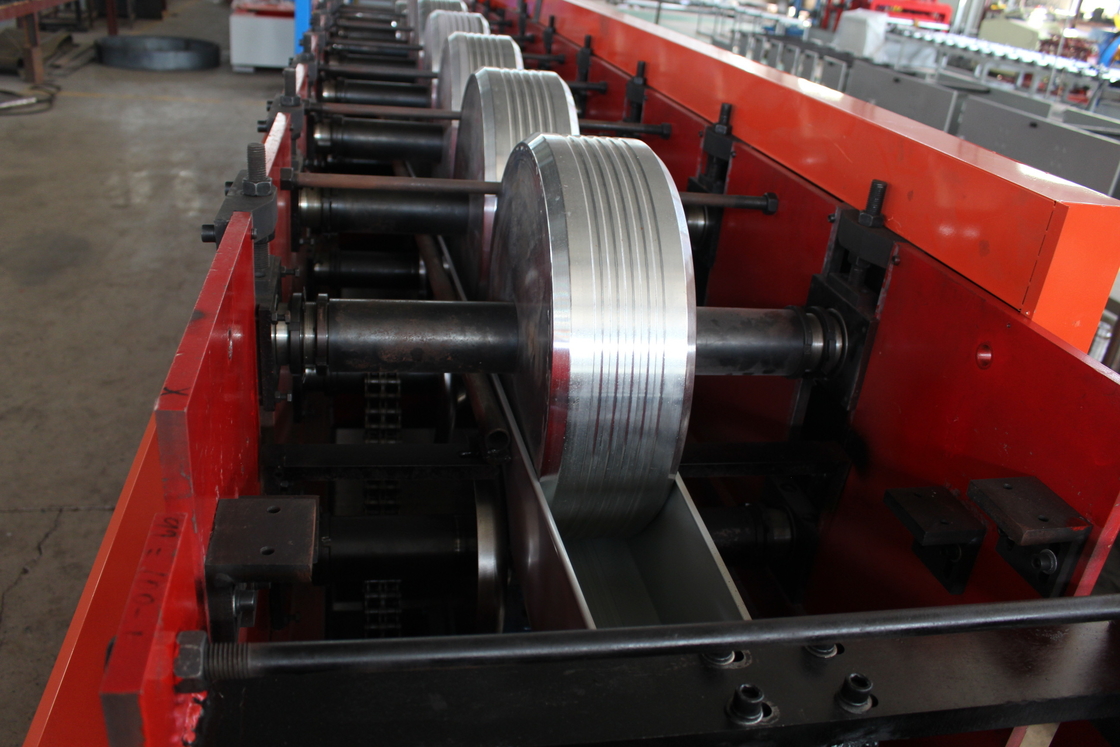

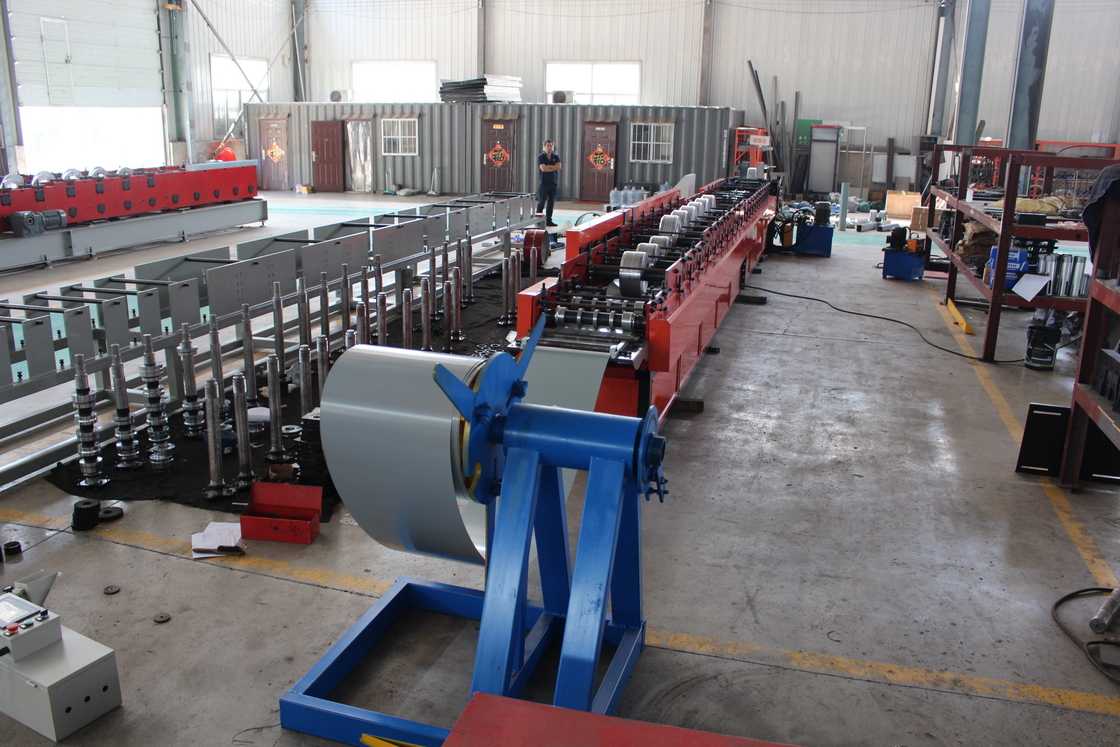

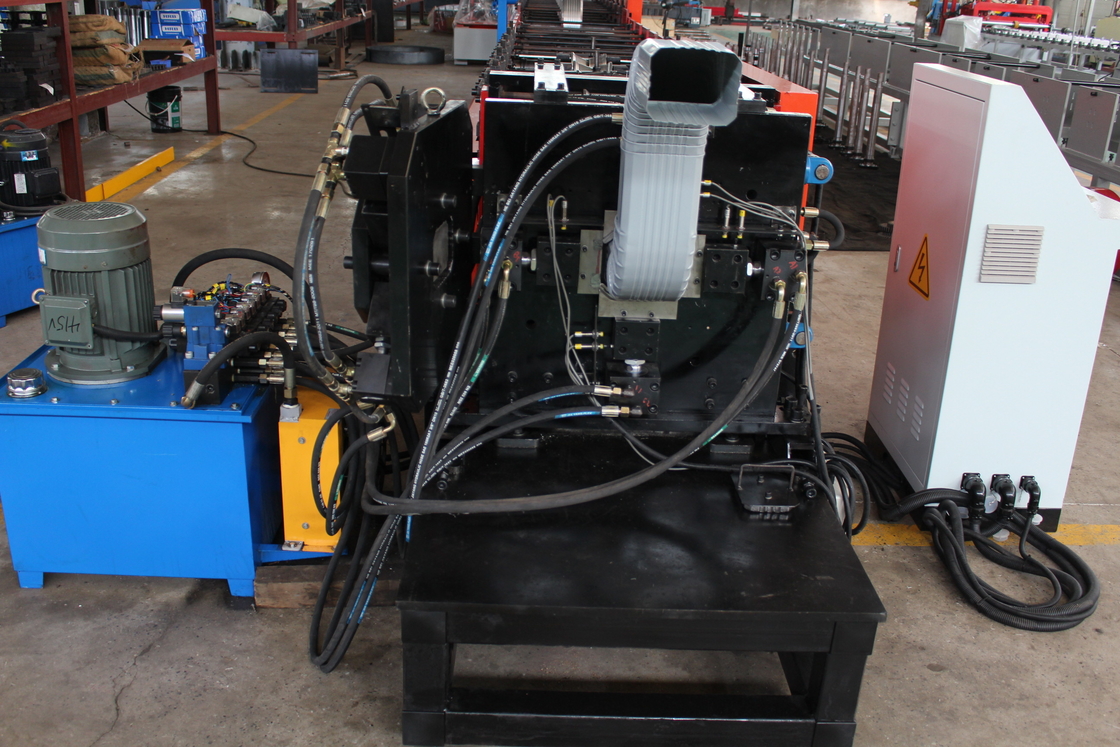

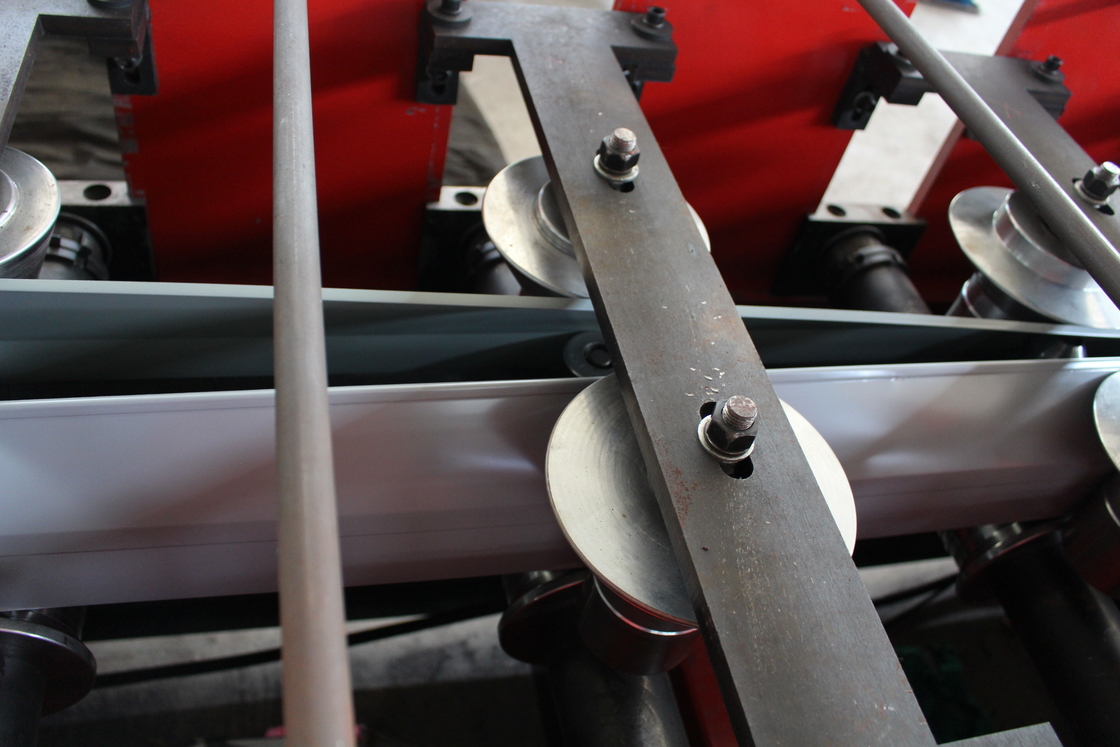

Rain Water Downspout Roll Forming Machine Elbow Bending Suitable Materials Thickness 0.4 - 0.8mm
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI |
| 2 | Raw Material Thickness | 0.3 mm - 0.8 mm |
| 3 | Working Speed | 8-15 m/min |
| 4 | Roller Station | 20 Stations |
| 5 |
Dimension (L*W*H) |
9200 mm*800 mm*1200 mm |
| 6 | Machine Weight | 9000 KG |
| 7 |
Electrical Control System |
PLC (can be customized) |
| 8 |
Drive Motor Power |
5.5 KW |
| 9 |
Hydraulic Station Power |
4 KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
± 2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
60 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
