Angle Type Ridge Cap Roof Roll Forming Machine With Hydraulic Press And Cutting

Angle Type Ridge Cap Roof Roll Forming Machine With Hydraulic Press And Cutting

Angle Type Ridge Forming Machine

PLC Ridge Cap Roll Forming Machine

Roof Ridge Cap Roll Forming Machine

Nguồn gốc:

Trung Quốc đại lục

Hàng hiệu:

FMS

Chứng nhận:

ISO CE

Số mô hình:

Mũ sườn núi

Liên hệ với chúng tôi
Yêu cầu báo giá
Chi tiết sản phẩm
Tên sản phẩm:
Máy tạo hình cuộn mái kiểu góc với máy ép và cắt thủy lực
Nguyên liệu thô:
Galvalume, mạ kẽm, PPGI, nhôm
Hệ thống điều khiển:
PLC
độ dày:
0,3-0,8mm
Loại gạch:
Mũ sườn núi
Tình trạng:
Mới
Màu sắc:
Theo yêu cầu của khách hàng
Công suất động cơ:
4KW
Làm nổi bật:

Angle Type Ridge Forming Machine

,

PLC Ridge Cap Roll Forming Machine

,

Roof Ridge Cap Roll Forming Machine

Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu
1 bộ
Giá bán
negotiable
chi tiết đóng gói
FLC 40'
Thời gian giao hàng
30 ngày làm việc
Điều khoản thanh toán
L/c, t/t, d/a, d/p
Khả năng cung cấp
20 bộ mỗi tháng
Sản phẩm liên quan
Liên hệ với chúng tôi
86-317-2016816
Liên hệ ngay
Mô tả sản phẩm

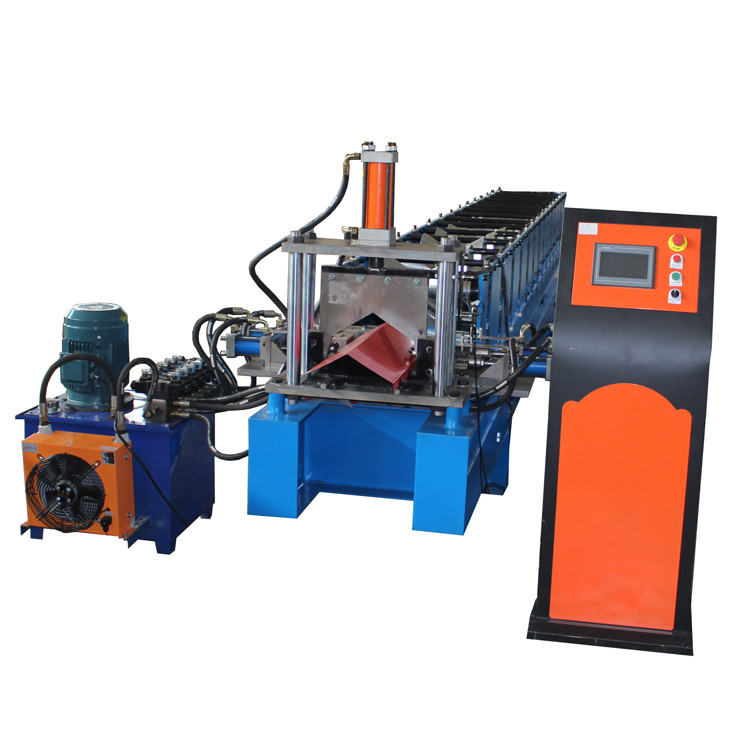

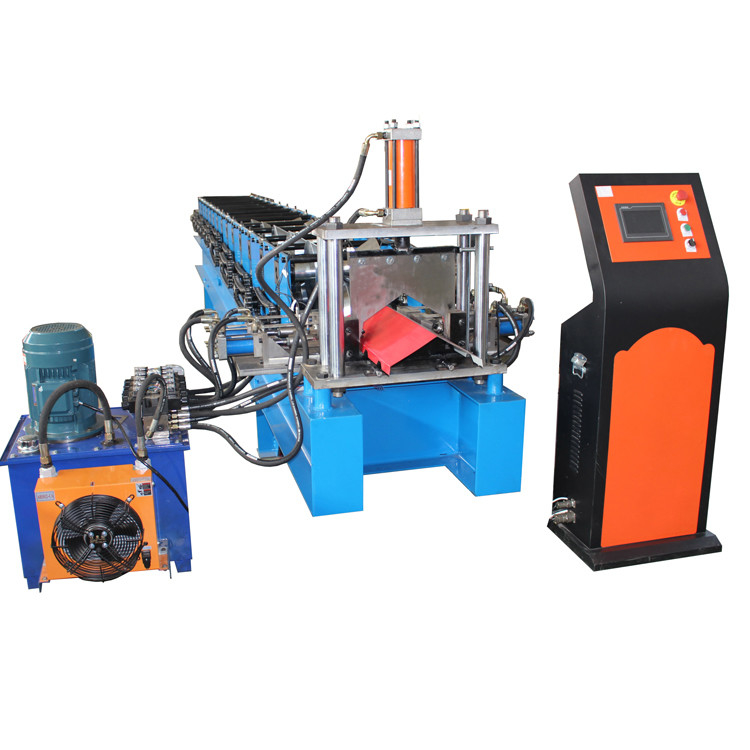

Angle Type Ridge Cap Roof Roll Forming Machine With Hydraulic Press And Cutting



Ridge Cap Roofing Roll Forming Machine

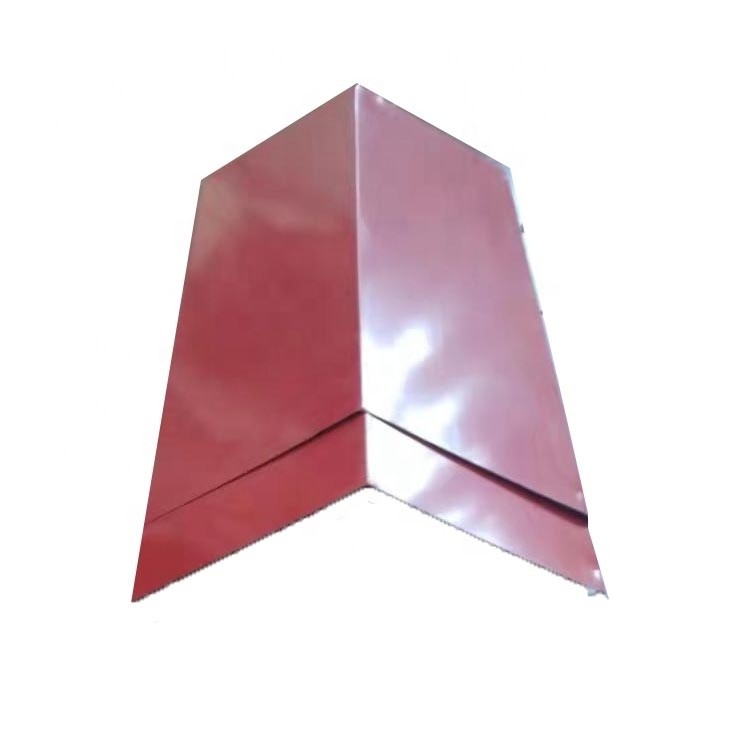

Ridge cap roll forming machine make the ridge cap is a new building material with rich colors and classical elegance, adding a finishing touch to your building. It has the characteristics of light weight, high strength, good waterproof, convenient and fast installation, and can be widely used in villa roofs, urban flat slope roofs and tourist attractions. Compared with other materials, the combined construction of lightweight materials and various auxiliary materials is not only short in construction period, but also simple in construction method, and can maintain the beautiful roof without editing and repairing. The arc color steel roof ridge tile is more complete than the manual roof ridge tile. It is a better partner for color steel glazed tiles or color steel plates.

Specification



No. Item Description
1 Coil Galvalume, Galvanized, PPGI, Aluminum
2 Raw Material Thickness 0.3-0.8mm
3 Working Speed 20-30 m/min ( not including the cutting time)
4 Roller Station 12 Raws
5

Dimension (L*W*H)

58000 mm*1200 mm*1100 mm
6 Machine Weight 4000 KG
7

Electrical Control System

Delta PLC (can be customized)

8

Drive Motor Power

4KW
9

Hydraulic Station Power

4 KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)

11

Cutting Accuracy

±2 mm

12

Driving Mode

Single Chain 1 inch

13

Material of Shaft

70 mm 45#steel forged

14 Material of Roller

45# Steel Finish Machining, Plated Hard



Application



The finished product of Metal Roof Ridge Cap Roll Forming Machine Roof Ridge Tiles Building Materials Machinery is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls etc.

It has the advantage of beautiful, classical appearance and grace taste.





Advantage



(1) Good thermal insulation effect
The thermal conductivity of the color steel ridge tile is only 1/5 of that of the ordinary clay tile. In the absence of an insulation layer, the color steel ridge tile can still achieve the best thermal insulation performance.
(2) Large bearing capacity
The color steel ridge tile is made of color coated steel plate, so it has good bearing capacity. And in harsh environments, even if there is often snow on the roof, the tile surface will not be damaged or broken.
(3) The color lasts
The color steel ridge tile is made by pressing color coated steel plate, so there is no need to paint the surface. In this way, the color steel ridge tile has extraordinary durability in the natural environment, and can maintain the stability of the color even in the harsh environment.
(4) Waterproof
The material of the color steel ridge tile is metal, so the density is small, it does not absorb water, and there is no problem of microporous water seepage. In addition, the color steel ridge tile has a large single sheet area, few roof joints, and tight joints, so the waterproof effect is strengthened





Angle Type Ridge Cap Roof Roll Forming Machine With Hydraulic Press And Cutting 0
