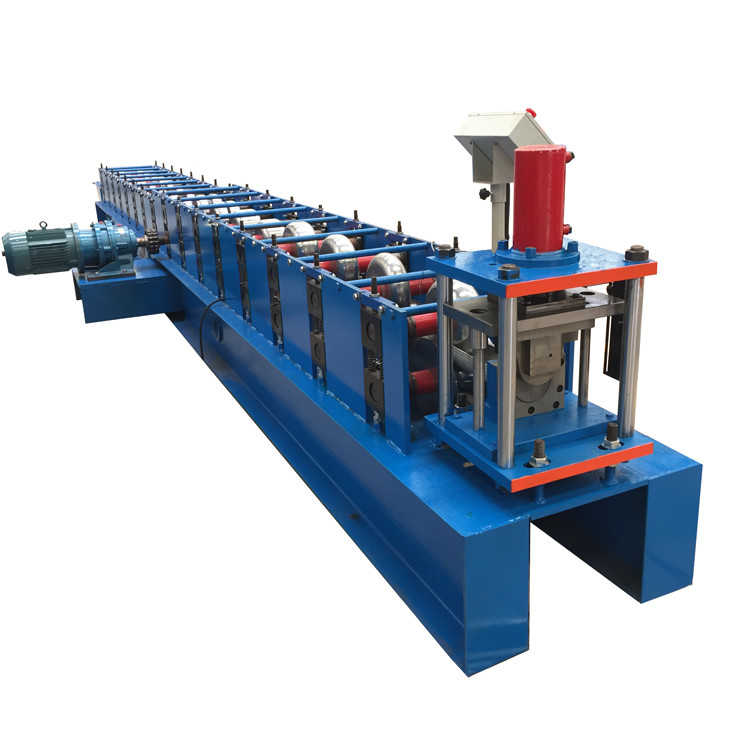

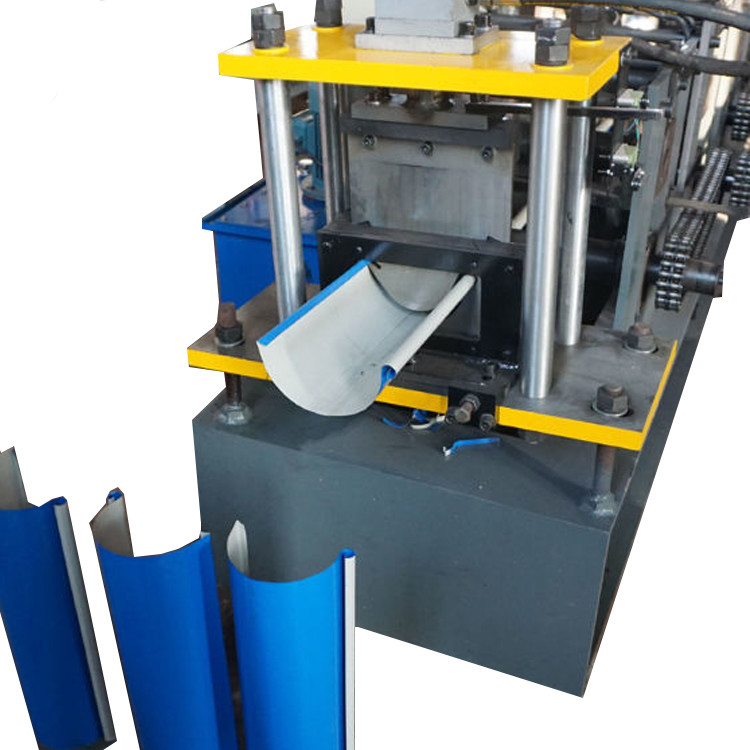

Steel Metal Rain Gutter Roll Forming Machine Automatic Control

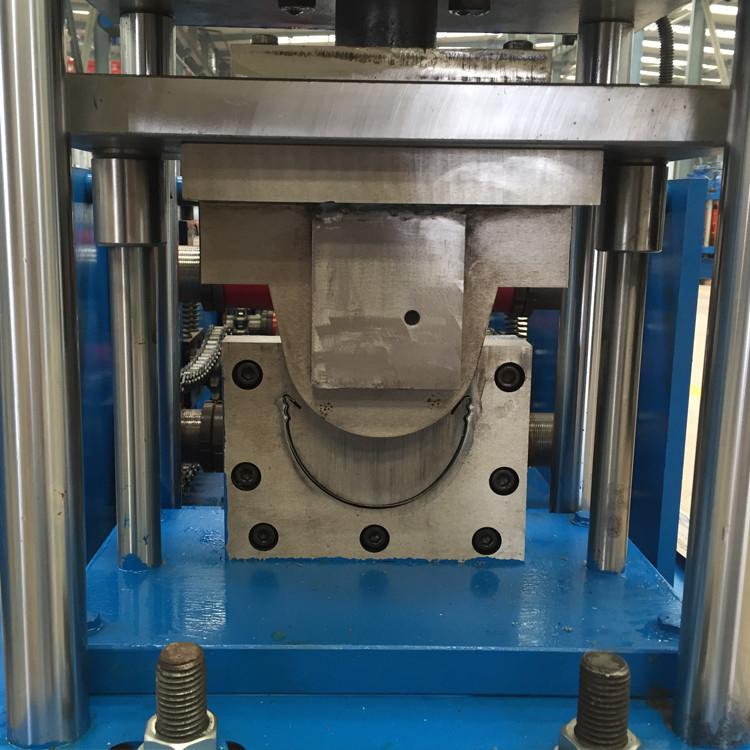

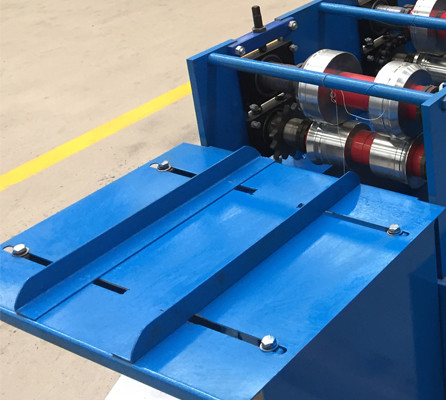

Seamless rain gutter cold roll forming machine is composed of uncoiler, the feed leading table, the main machine, the formation cutting device, hydraulic system, control system and the product bracket.
Specification
|
Suitable material
|
PPGI GI AL
|
|
Thickness
|
0.3-0.5mm as per requested.
|
|
Power
|
380V 50Hz 3Phase as per requested.
|
|
Main motor
|
5.5KW
|
|
Hydraulic motor
|
4 KW
|
|
Speed
|
15m/min
|
|
Forming stations
|
12 rows
|
|
Roller material
|
Cr12 steel with vacuum heat treatment HRC57°-60°
|
|
Shaft material
|
45# steel quenched and tempered
|
|
Shaft diameter
|
50mm
|
|
Drive
|
Gear
|
|
Screem HMI
|
Delta , Touch Screen
|
|
PLC
|
Delta , Siemens
|
|
Processing precision
|
Within 1mm
|
|
Size
|
4.6m×1.5m×1.2m
|
|
Weight
|
2.5T
|
Installation
During the installation and adjustment of the device, our engineers should provide the buyer's personal request to provide training and maintenance of the equipment. Including basic buildings, electrical engineering, hydraulic oil, safety operations and non -standard safety items, test materials, etc.
Guarantee
The warranty will be maintained and during the delivery period during the delivery period. Due to the quality of the equipment during the guarantee period, we will provide parts for free, which is the correct operating condition.
Payment terms
30% in advance
70% is paid before shipping
