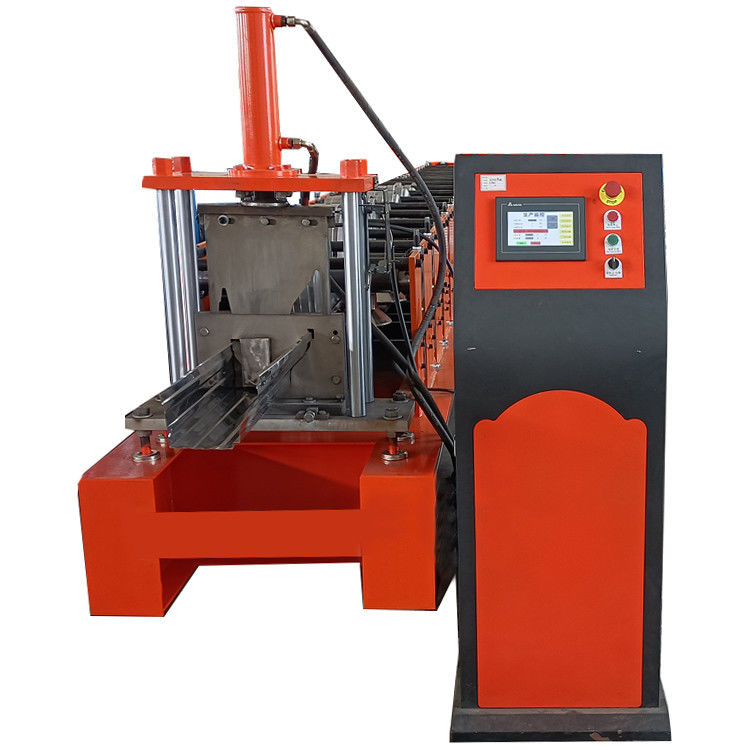

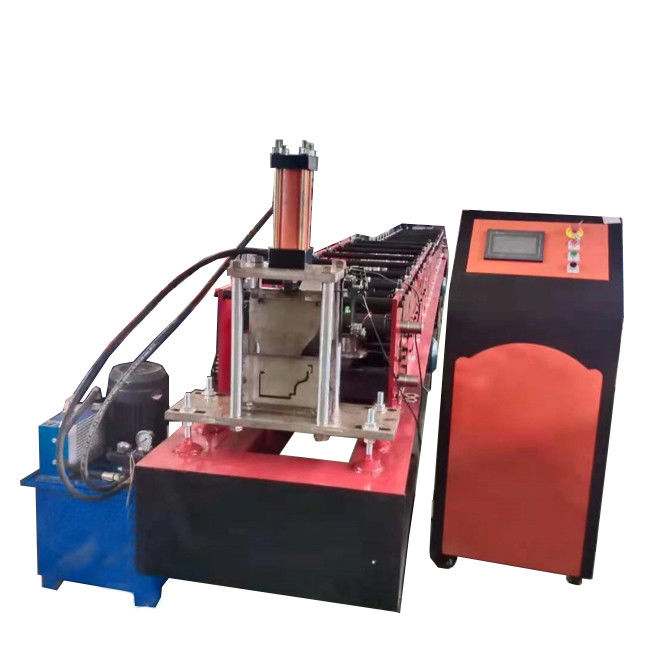

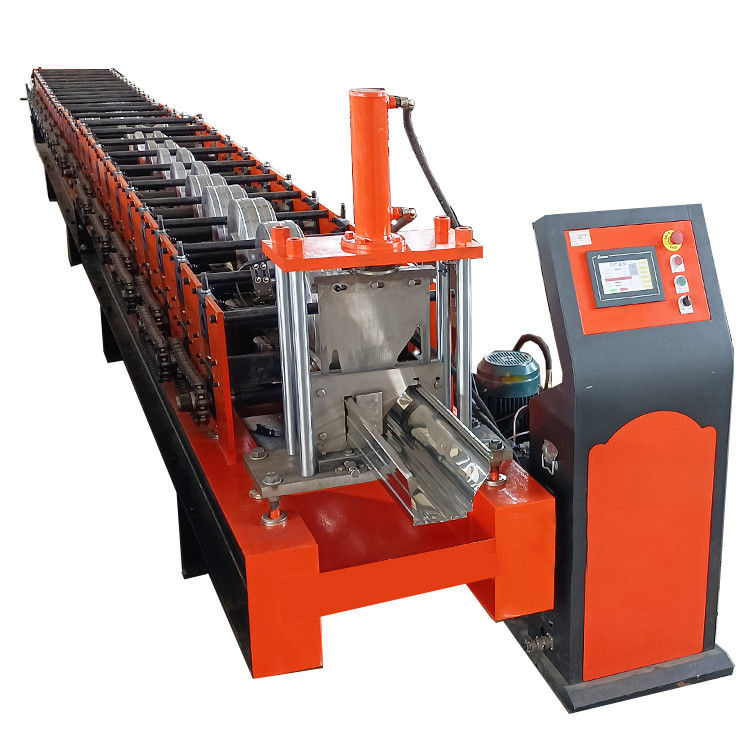

Hydraulic Cutting Rain Collect Gutter Downspout Roll Forming Machine PCL Control
Steel Rain Gutter Roll forming machine . After the establishment of the roll, the product is longer than the non -aging -feet PPC pipe. It can make the project more integrated and help enhance the image of all projects. The device is controlled by PLC, the frequency of AC, and adjusting speed technology, and realizes the continuous production of continuous production. Therefore, it is indeed a new type of energy saving and efficient production equipment for steel structures.
Specification
| Galvanized Gutter Making Machine Downspout Metal Gutter Roll Forming Machine | |
| Processing material | colored steel coil |
| Material thickness | 0.3-0.8mm |
| Frame design | according to design drawing |
| Main motor power | 4 kw |
| Material of forming roller | 45# steel, CNC lathes, Hard Chrome Coated |
| Shafts Diameter | Φ70mm |
| Main motor power | 7.5 KW |
| Max. Line speed of roll former | 15m/min |
| Hydraulic group power | 4KW |
| Material of cutting blade | Cr12, hear treatment |
| Electric Standard | 380V /50Hz/3PH or as per customer's requirements |
| Main frame | 300H steel |
Installation
During the installation and adjustment of the device, our engineers should provide the buyer's personal request to provide training and maintenance of the equipment. Including basic buildings, electrical engineering, hydraulic oil, safety operations and non -standard safety items, test materials, etc.
Guarantee
The warranty will be maintained and during the delivery period during the delivery period. Due to the quality of the equipment during the guarantee period, we will provide parts for free, which is the correct operating condition. (Natural disasters or factors that humans cannot force are excluded).
Payment terms
40% in advance
60% is paid before shipping
