Nguồn gốc:
TRUNG QUỐC
Hàng hiệu:
fms
Chứng nhận:
CE
Số mô hình:
5 IBR
Băng hình
Băng hình

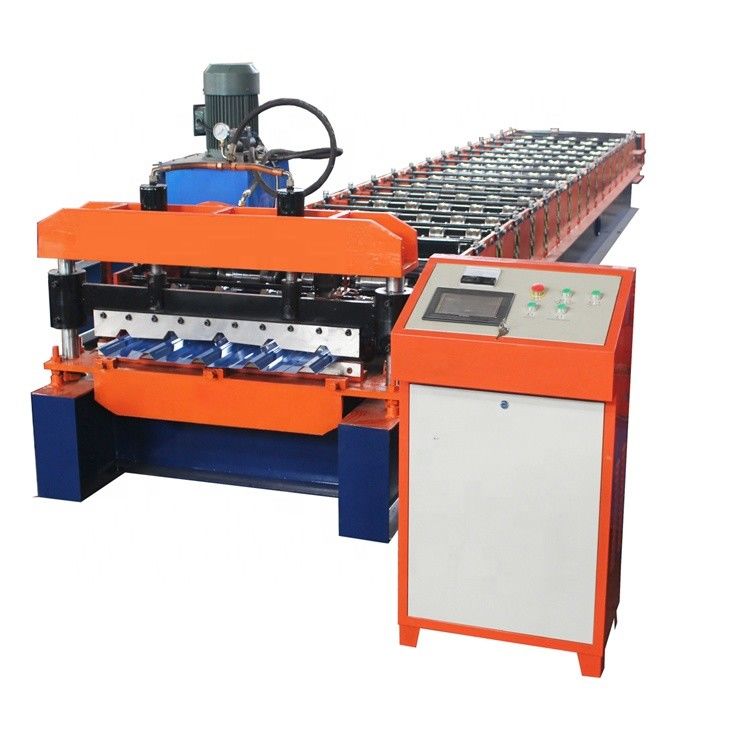

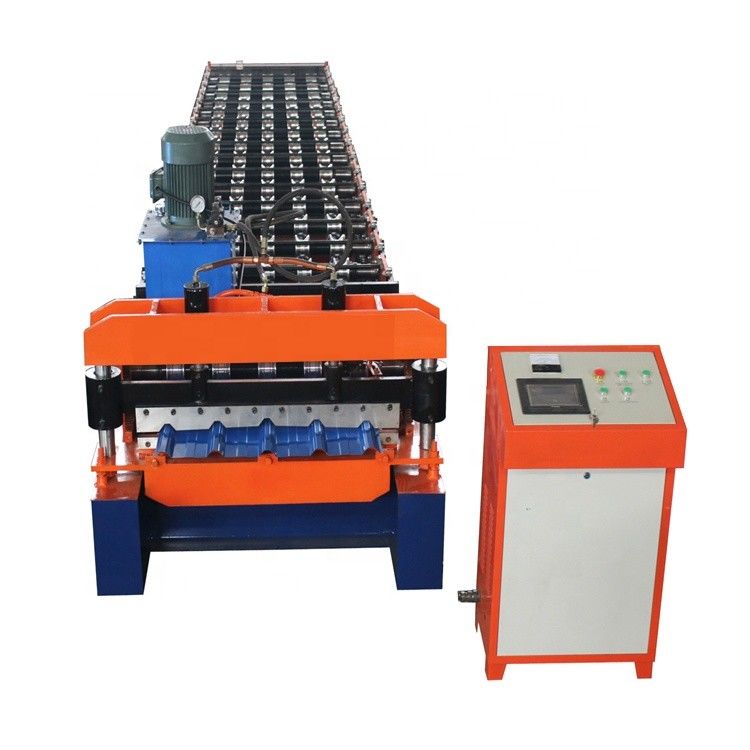

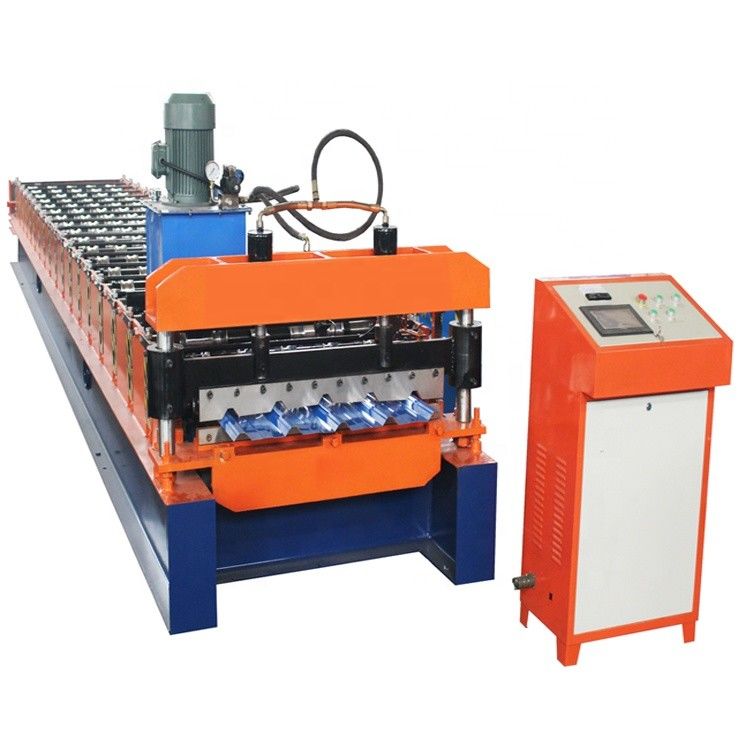

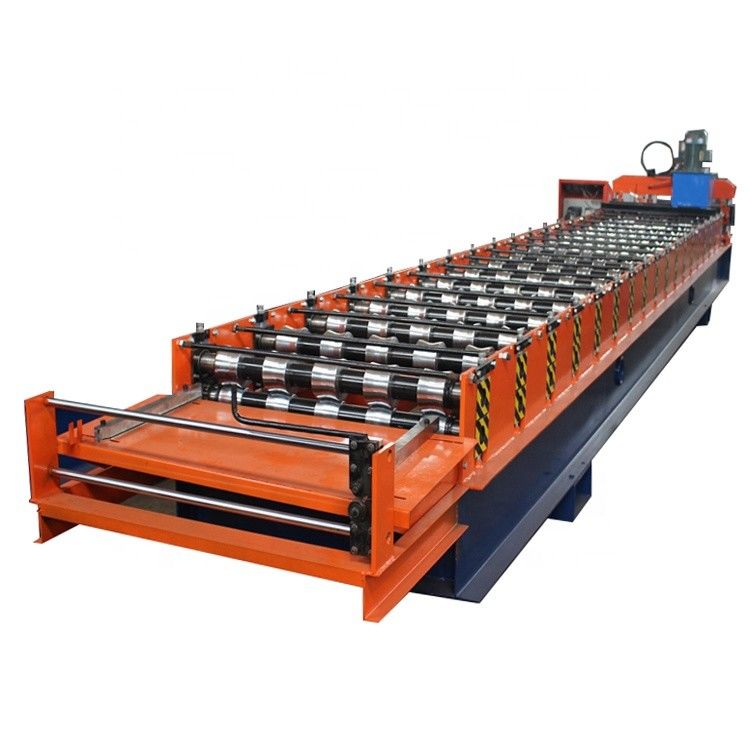

Trapezoid Type 5 Rib Hydraulic Cutting Roof Tile Roll Forming Machine PLC Control
It makes colored steel roof plates , which are used in buildings, factories, supermarkets, workshop etc. For this machine, it is suitable for width of 1220mm and thickness range from 0.3 mm to 0.6 mm. We use the 14 mm thick wall panel type to make the rack strong. Generally, it can run to 15m/min at the highest speed. PLC control operation make the machine easy to use.
| Main motor power | 4.5kw |
| Drive | 1.2'' single chain |
| Type: | Wall board |
| Main shaft dia | ¢60mm |
| material | 45# forge steel and quenched |
| Roller material | 45# high grade forge steel ,chrome coated 0.05mm |
| Roll station | 18 groups |
| Raw material | 0.3-0.6mm |
| Coil width | 1220mm |
| Working speed | 7m--15m/min(Exclude cutting time) |
| Length Tolerance | ±1.5mm |
| Weight of machine | About 4.5 ton |
| Size of machine | About 6300×1200×1500mm L x W x H |
| Color of machine | as per request |
| Coder | Omron, made in Japan |
| Control | PLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client) |
| Computer operating panel | touching screen |
| Other electrical element | Schneider |
| Cutting | Hydraulic cutting. Auto cutting when reach the set length |
| Hydraulic power | 3KW |
| Blade material | Cr12mov,quenched 58°-62° |
| Working pressure | 16mpa |
| Cutting tolerance | +/- 1.0mm |
Advantage
It has the characteristics of light weight, high strength, rich color, convenient and fast structure, earthquake resistance, fire resistance, rainproof ability, longevity and no maintenance. It has been widely promoted and applied
Application
The color section steel plate is a configuration plate, which uses color coating steel plates, and rolled it into various waveforms. It is suitable for industrial and civil buildings, special buildings in warehouses, and large steel structure houses. Wall decoration, etc.
