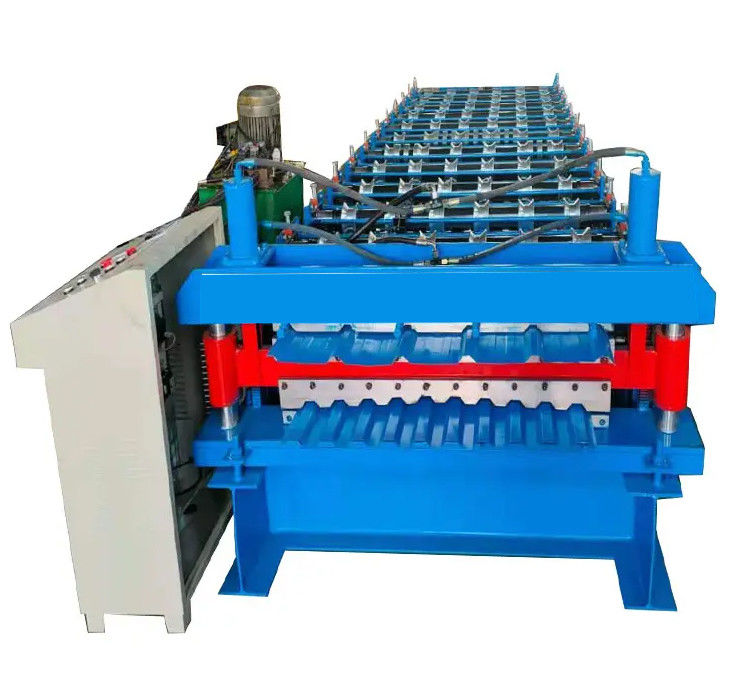

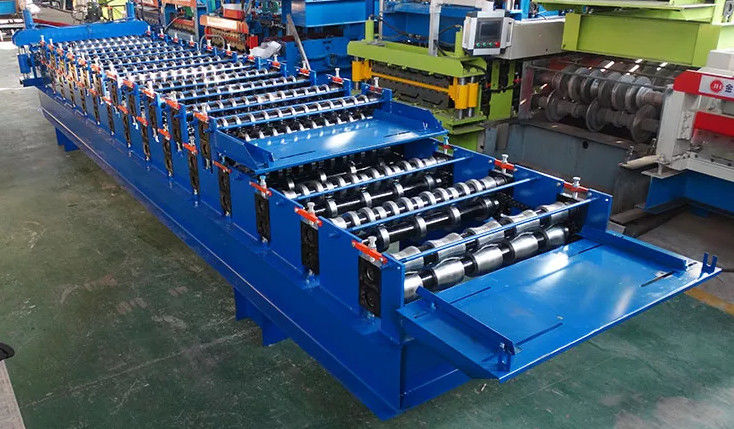

Metal Roof Tile Roll Forming Machines Double Layer Making Machine
Metal Roof Tile Roll Forming Machines Double Layer Making Machine, sharing the same decoiler, drive trains and motors, but using different rolls and different cut offs.The double layer machine is particularly useful where operating or storage space is a problem.For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine, trapezoidal tile roll forming machine,glazed tile roll forming machine,
Detailed Parameters:
| The total length of the equipment | Length 7300mm width 1500mm height 1200mm |
| Equipment weight | 53 tons |
| The motor power | Motor 5.5Kw pump station 5.5Kw working voltage 380V or customized |
| Production speed | 10--18 m/min |
| The transmission way | 1 inch chain drive |
| rack | Large frame: 350H section steel |
| shaft | 1064:14 row axis 1100:16row axis diameter 70 mm solid shaft |
| The thickness of the plate | 14 mm |
| Set of | Galvanized pipe finishing, electrostatic spraying |
| Wheel material | 45# steel hard chrome plating |
| The molding part | Divided into precision wheel rotation forming, forming effect is good, reduce the friction between wheels and raw materials, debugging convenient, fast. |
| Numerical control system | Easy control king, letter letter press button screen, counter, |
| shear | Iron plate welding frame, hydraulic cylinder automatic shear, hydraulic cylinder automatic pressure |
| In the thickness of the plate | 0.3 mm - 0.8 mm |
| Into the plate width | 1250 mm |
| accessories | Two sets of feeding rack, vulnerable parts |
| Warranty period | 12 months |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
