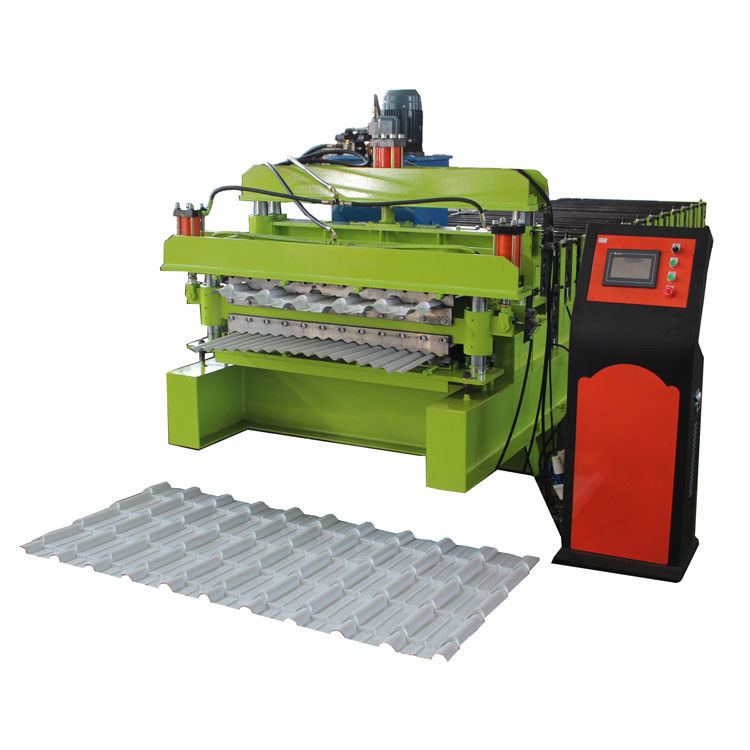

Building Material Shops Glazed Tile Wall Panel Double Layer Roll Forming Machine

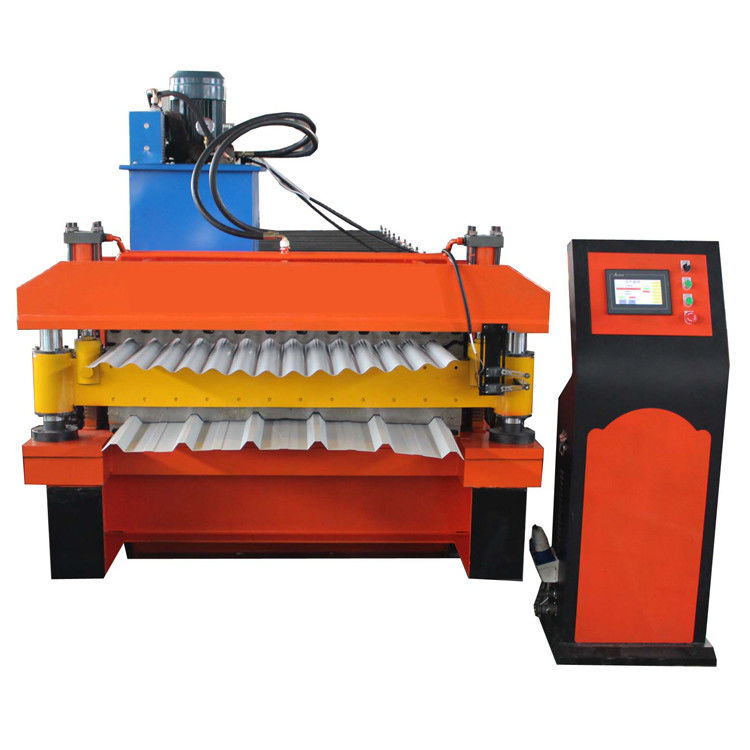

Customized 0.3-0.8mm Metal Sheet 8 Rib Trapezoidal And 1035 Glazed Tile Double Layer Roll Forming Machine For Africa
Double layer roll forming machine popular sell in many countries, common roofing sheet rolling thickness from 0.3-0.6 mm, material use PPGI (Pre-Painted Galvanized Steel ) material
We sell lots of double layer roll forming machine to Guyana, Brazil, Colombia, South Africa, Nigeria etc. We can assure finished products overlap accuracy control in ±1 mm. Size can customize can your need size
Double layer roll forming machine | double deck machine | 2 layer roll forming machine
Detailed Parameters:
|
No
|
Item
|
Parameter
|
|
1
|
Decoiler
|
5tons electric decoiler (Hydraulic decoiler optional), manual one free
|
|
2
|
Forming speed
|
12-18m/min
|
|
3
|
Material
|
G235grade steel or galvanized coil
|
|
6
|
Shaft
|
Diameter 75mm, all solid
|
|
7
|
Rollers
|
High grade 45# steel with heat treatment and hard chrome coating 0.04-0.05
|
|
8
|
Main frame system
|
H350 steel. By blasting
|
|
10
|
Main forming power
|
5.5kw.
|
|
11
|
Pump Station Power
|
4Kw, or electric cutting for 3kw
|
|
12
|
Cutting Type
|
hydraulic cutting or electric cutting
|
|
13
|
Cutting Blade
|
Cr12Mov with hard treatment, HRC52-68
|
|
14
|
Control System
|
Delta PLC, Touch screen, Frequency converter
|
|
15
|
Measuring accuracy
|
Precision +/-1.5mm,with frequency converter
|
|
16
|
Transmission
|
By single chain 1’
|
|
18
|
Machine weight
|
About 6500 kg
|
|
19
|
Voltage
|
380V,50hz, 3phase, as per request
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
